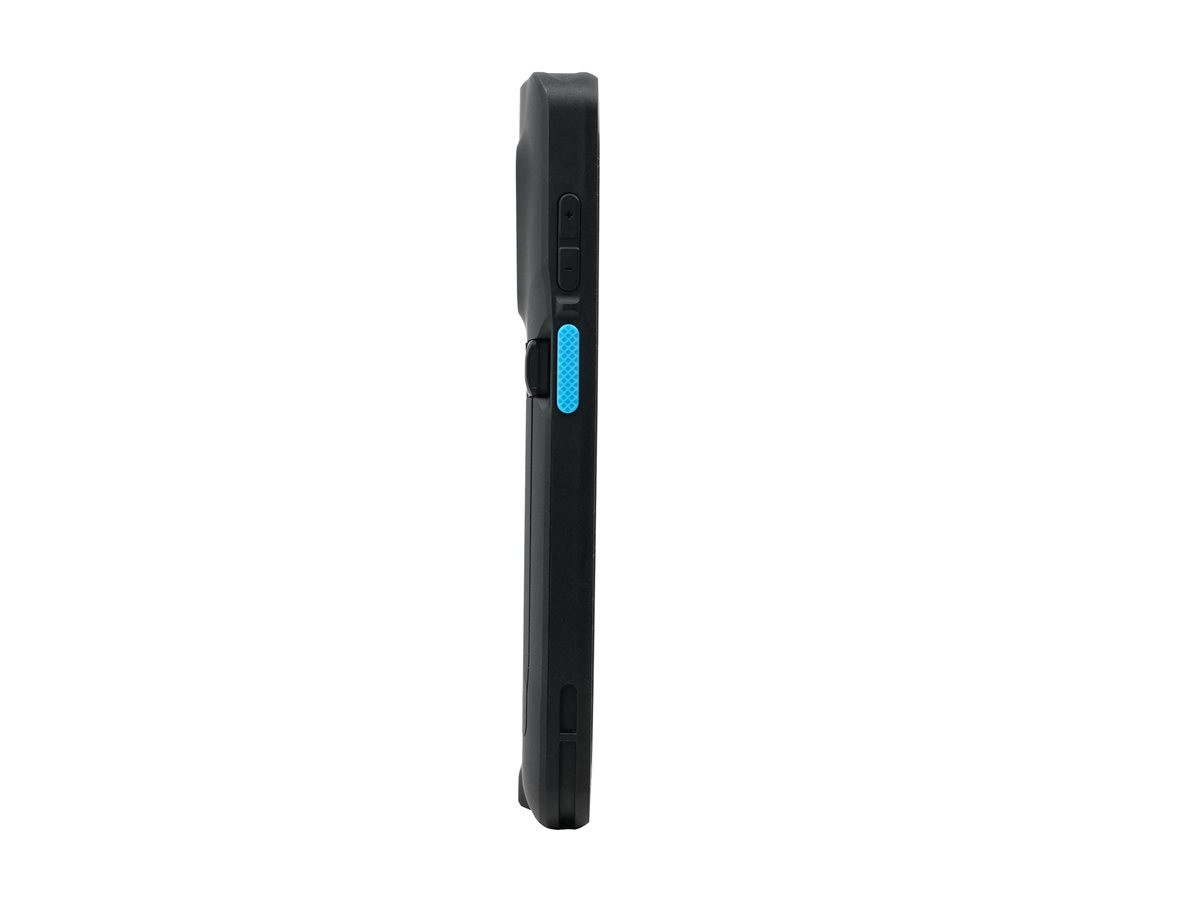

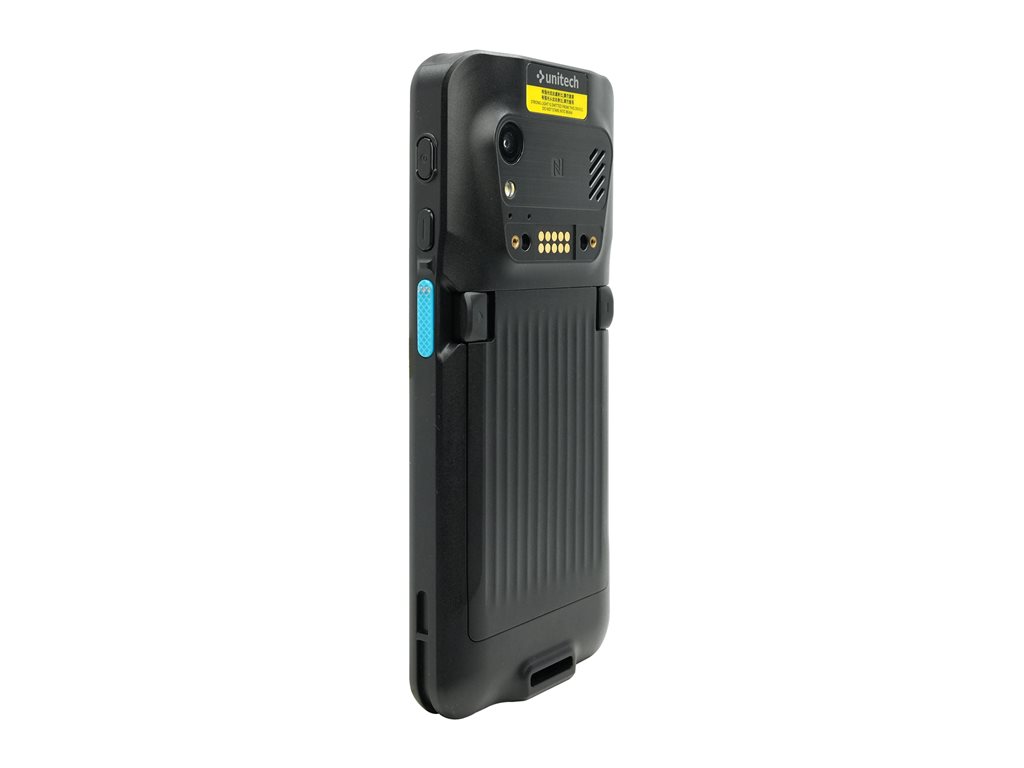

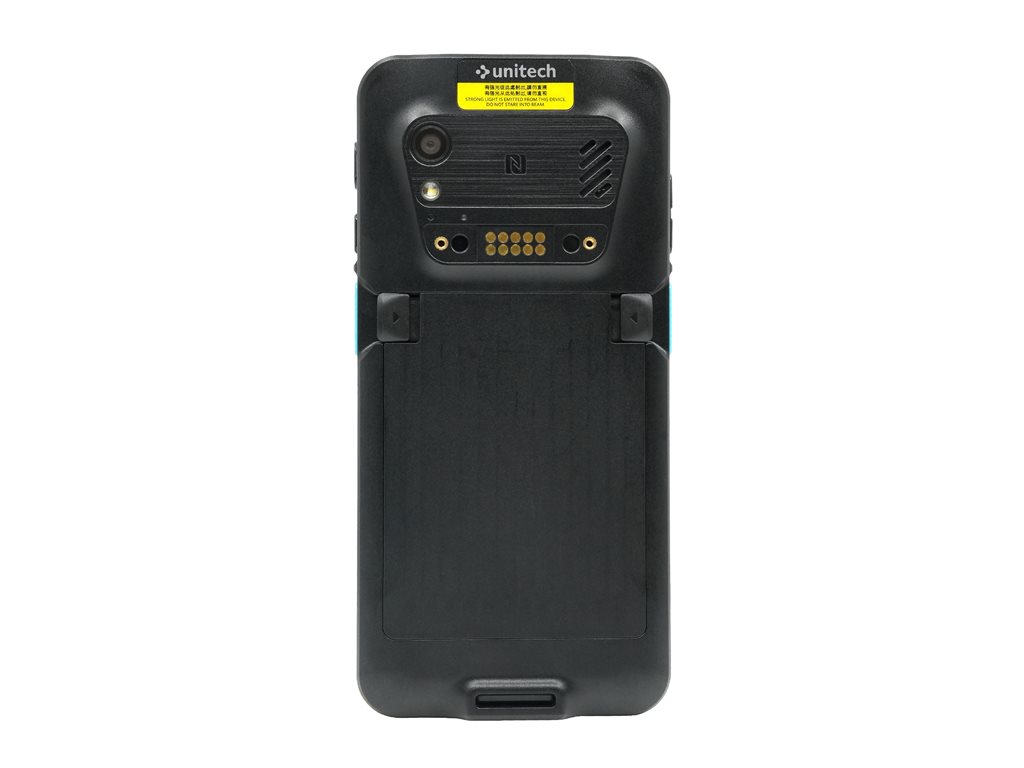

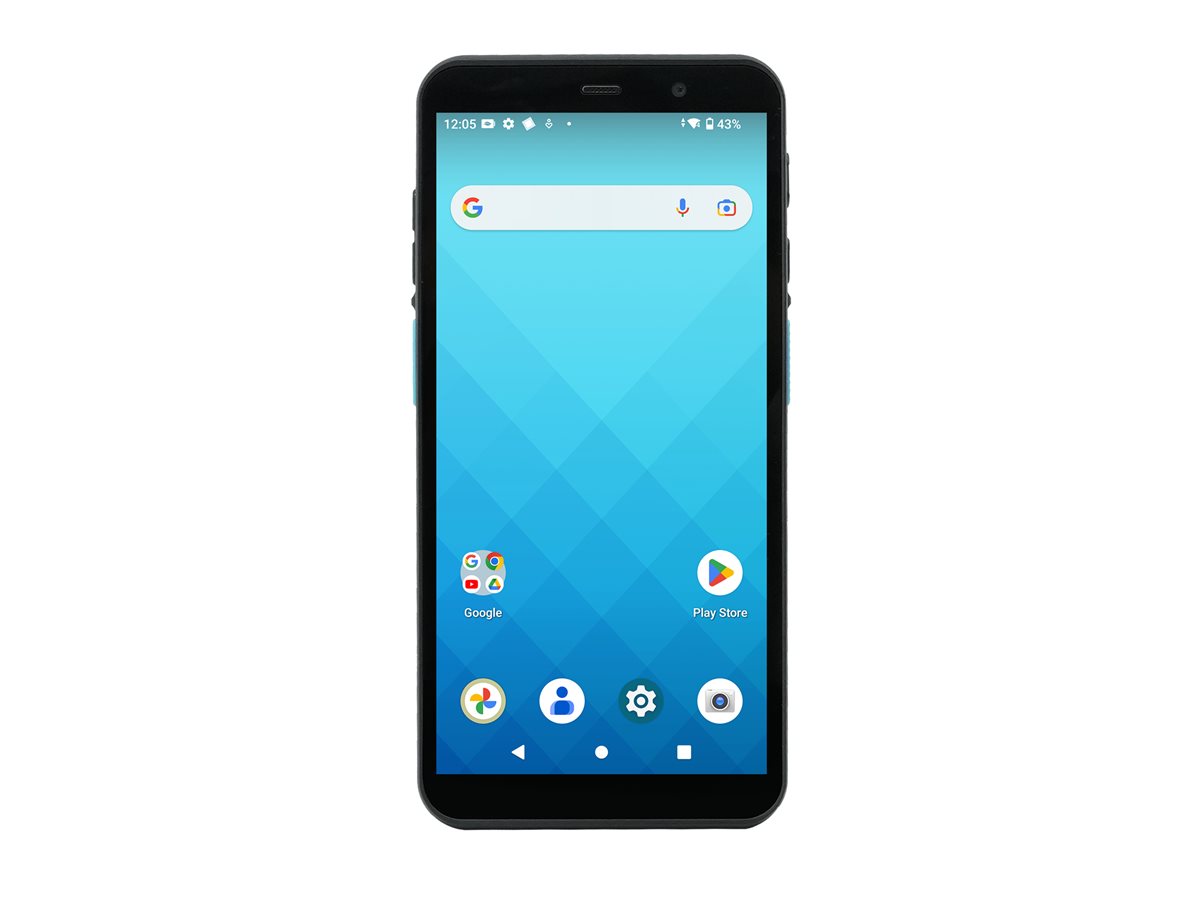

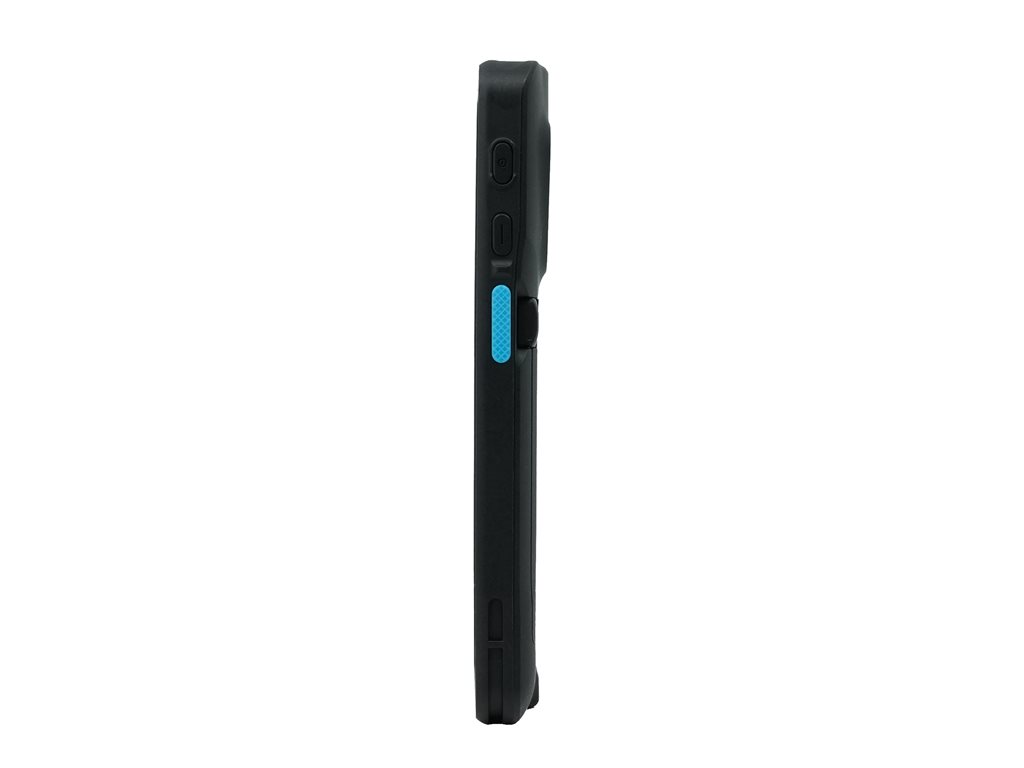

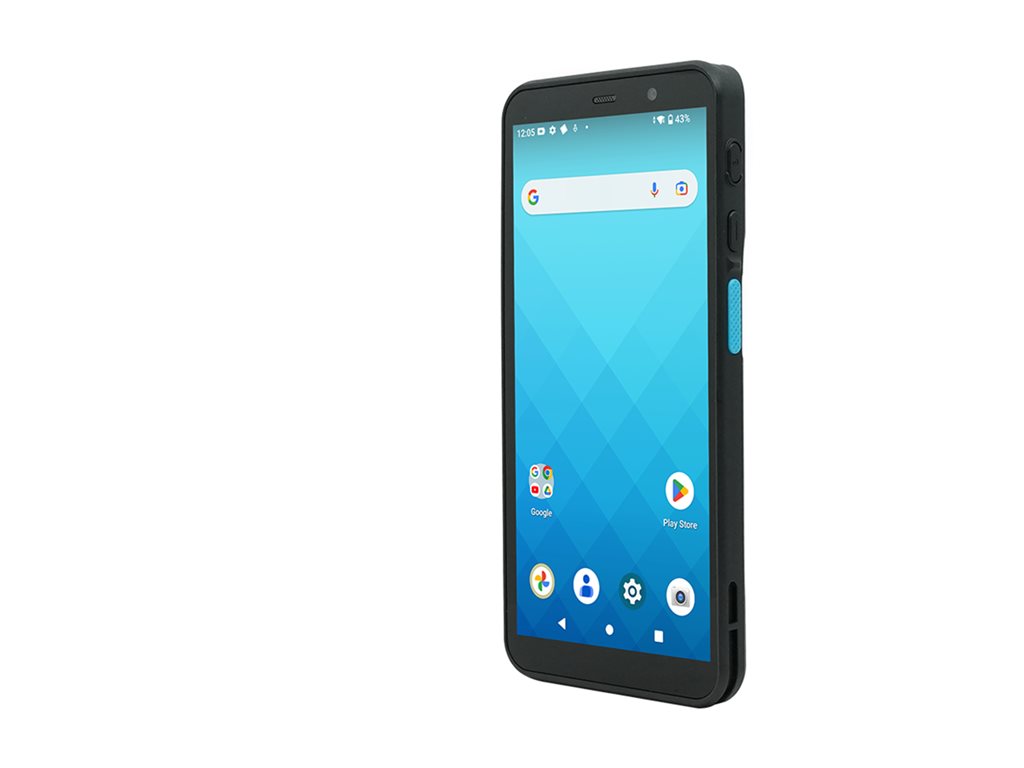

3rd generation - data collection terminal - rugged - Android 15 or later - 64 GB - 6" color (720 x 1440) - rear camera + front camera - barcode reader - (2D imager) - USB host - microSD slot - Wi-Fi 6, Bluetooth
| Main Specifications | |
|---|---|
| Product Description | Unitech EA530 - 3rd generation - data collection terminal - Android 15 or later - 64 GB - 6" |
| Product Type | Data collection terminal - rugged |
| Operating System | Android 15 or later |
| Display | 6" color - 720 x 1440 - Multi-Touch |
| Processor | (8-core) |
| Processor Clock Speed | 2.2 GHz |
| Storage | 64 GB |
| RAM | 6 GB |
| Cellular Protocols | 3G, 4G LTE |
| Wireless Connectivity | 802.11 a/b/g/n/ac/d/e/h/i/k/r/u/w/v/ax, Bluetooth 5.2 LE |
| Rear Camera | 16 Megapixel focus: automatic |
| Front Camera | 8 Megapixel |
| Navigation System | A-GPS/GPS/GLONASS/Gallileo/Beidou |
| Barcode Reader | Yes (2D imager) |
| Barcodes | Aztec, Codabar, Code 11, Code 39, Code 93, Data Matrix, EAN-128, GS1 DataBar, GS1-128, GS1-128 Composites, Han Xin, Interleaved 2 of 5, Matrix 2 of 5, MaxiCode, Micro QR code, MicroPDF417, MSI, PDF417, QR code, UPC, E13-B, OCR-A, OCR-B |
| RFID Specification | 13.56 MHz, ISO 14443A, ISO 14443B, ISO 15693, ISO/IEC 18092 Type F |
| Features | USB host |
| Dimensions (WxDxH) | 6.3 in x 0.6 in x 3 in |
| Weight | 8.54 oz |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Product Type | Data collection terminal - rugged |
| Operating System | Android 15 or later |
| Memory | |
| Storage | 64 GB |
| RAM | 6 GB |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Sensors | Gyroscope, G-sensor, eCompass, light sensor, proximity sensor |
| Features | 1.5 m drop resistant, 1.8 m drop resistant with protective boot |
| Vibrating Alert | Yes |
| Included Accessories | Power adapter |
| Cables Included | USB-C cable |
| Compliant Standards | FCC, NCC, VCCI, TELEC, CCC, SRRC, BQB, N-Mark, RoHS 2.0, IP65, IP68, GMS |
| Processor | |
| Processor Clock Speed | 2.2 GHz |
| Number of Cores | 8-core |
| Environmental Parameters | |
| Min Operating Temperature | -4 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Min Storage Temperature | -22 °F |
| Max Storage Temperature | 158 °F |
| Software | |
| Preloaded Software | SOTI, Mobolink, Vmware View for Android |
| Input Device | |
| Type | 2 side scan buttons, 6 programmable buttons, touchscreen |
| Battery | |
| Technology | Lithium polymer |
| Capacity | 4250 mAh |
| Display | |
| Type | 6" color |
| Resolution | 720 x 1440 |
| Touchscreen | Multi-Touch |
| Image Brightness | 500 cd/m² |
| Features | Stylus touch mode, glove touch mode, wet touch mode, Corning Gorilla glass |
| Communications | |
| SIM Card Type | Electronic SIM card (e-SIM), nano SIM |
| Cellular Protocols | 3G, 4G LTE |
| Wireless Connectivity | 802.11 a/b/g/n/ac/d/e/h/i/k/r/u/w/v/ax, Bluetooth 5.2 LE |
| Security Protocols & Features | WPA3, WPA2, WPA, WEP |
| Dimensions & Weight | |
| Width | 6.3 in |
| Depth | 0.6 in |
| Height | 3 in |
| Weight | 8.54 oz |
| Barcodes | |
| Barcode Reader | Yes |
| Scan Element Type | 2D imager |
| Barcodes | Aztec, Codabar, Code 11, Code 39, Code 93, Data Matrix, EAN-128, GS1 DataBar, GS1-128, GS1-128 Composites, Han Xin, Interleaved 2 of 5, Matrix 2 of 5, MaxiCode, Micro QR code, MicroPDF417, MSI, PDF417, QR code, UPC, E13-B, OCR-A, OCR-B |
| RFID | |
| Frequency | 13.56 MHz |
| RFID Specification | ISO 14443A, ISO 14443B, ISO 15693, ISO/IEC 18092 Type F |
| Multimedia | |
| Audio | Dual array microphone, speaker |
| Expansion and Connectivity | |
| Expansion Slots | 1 x microSD |
| Interfaces | USB-C 2.0 ¦ POGO pin |
| USB Host | Yes |
| Navigation System | |
| Receiver | A-GPS/GPS/GLONASS/Gallileo/Beidou |
| Front Camera | |
| Sensor Resolution | 8 Megapixel |
| Rear Camera | |
| Sensor Resolution | 16 Megapixel |
| Focus Adjustment | Automatic |
| Light Source | Flash |
