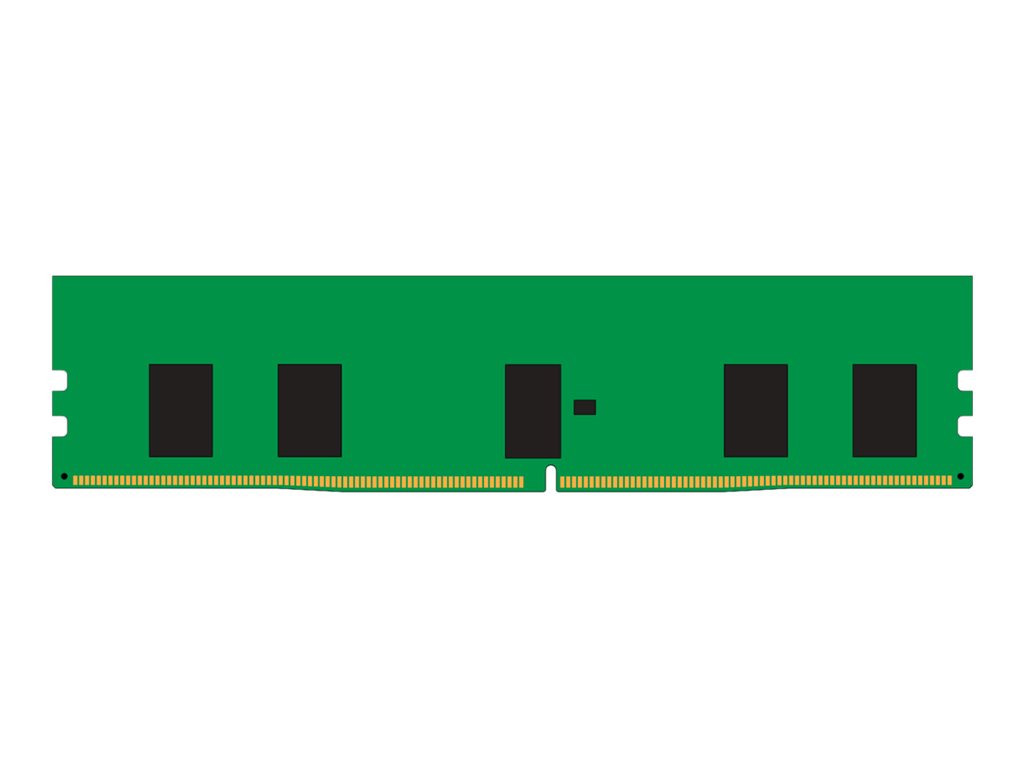

DDR4 - module - 16 GB - DIMM 288-pin - 3200 MT/s / PC4-25600 - CL22 - 1.2 V - registered with parity - ECC
| Main Specifications | |
|---|---|
| Product Description | Kingston - DDR4 - module - 16 GB - DIMM 288-pin / PC4-25600 - registered with parity |
| Product Type | Memory module |
| Capacity | 16 GB |
| Memory Type | DDR4 SDRAM - DIMM 288-pin |
| Upgrade Type | Generic |
| Data Integrity Check | ECC |
| Speed | 3200 MT/s (PC4-25600) |
| Latency Timings | CL22 (22-22-22) |
| Features | Single rank, sixteen banks, On-Die Termination (ODT), Serial Presence Detect (SPD), registered with parity |
| Voltage | 1.2 V |
| Lead Plating | Gold |
| Manufacturer Warranty | Limited lifetime warranty (Russia - 10 years) |
| General | |
| Capacity | 16 GB |
| Upgrade Type | Generic |
| Width | 5.2 in |
| Height | 1.2 in |
| Memory | |
| Type | DRAM memory module |
| Technology | DDR4 SDRAM |
| Form Factor | DIMM 288-pin |
| Module Height (inch) | 1.23 |
| Speed | 3200 MT/s (PC4-25600) |
| Latency Timings | CL22 (22-22-22) |
| Data Integrity Check | ECC |
| Features | Single rank, sixteen banks, On-Die Termination (ODT), Serial Presence Detect (SPD), registered with parity |
| Module Configuration | 2048 x 72 |
| Chips Organization | 1024 x 8 |
| Voltage | 1.2 V |
| Lead Plating | Gold |
| Manufacturer Warranty | |
| Service & Support | Limited lifetime warranty (Russia - 10 years) |
| Miscellaneous | |
| Compliant Standards | JEDEC, RoHS |
