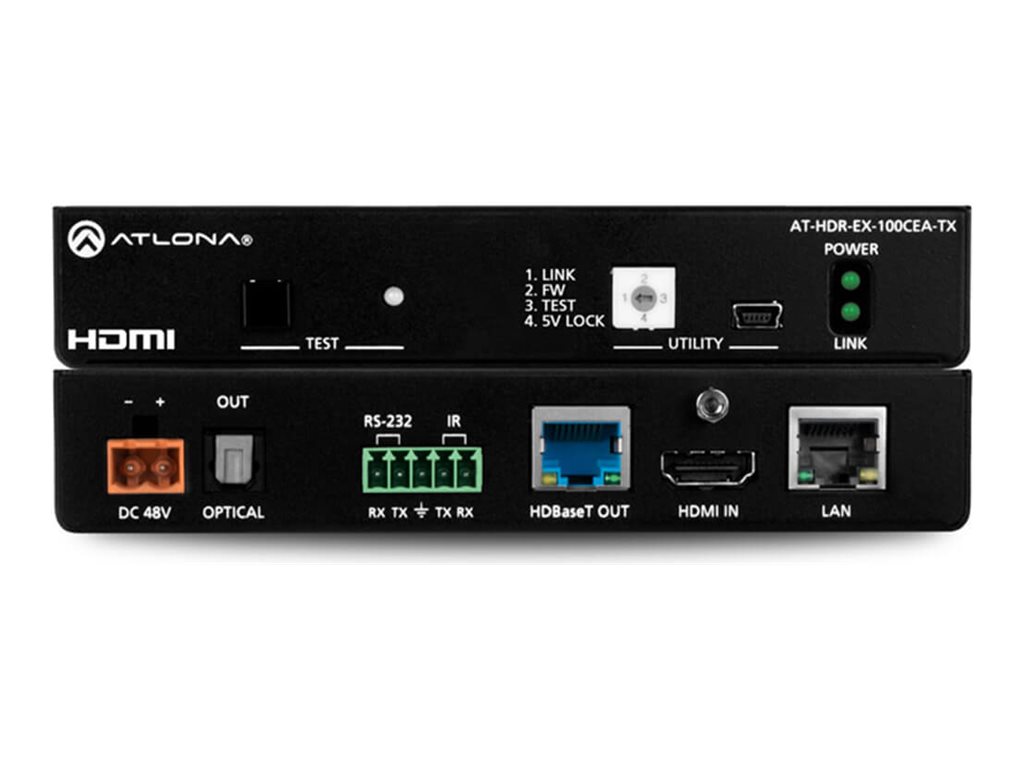

Video/audio/control/power extender - transmitter - RS-232, HDMI, HDBaseT - over CAT 5e/6/6a/7 - up to 328 ft - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | Atlona AT-HDR-EX-100CEA-TX - video/audio/control/power extender - RS-232, HDMI, HDBaseT - TAA Compliant |
| Device Type | Video/audio/control/power extender (transmitter) |
| Form Factor | Desktop / rack mountable |
| Data Link Protocol | RS-232, HDMI, HDBaseT |
| Transmission Medium | CAT 5e/6/6a/7 |
| Max Transfer Distance | 328 ft |
| Power | DC 48 V |
| Dimensions (WxDxH) | 1.8 in x 4.4 in x 1.4 in |
| Weight | 14.11 oz |
| TAA Compliant | Yes |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Video/audio/control/power extender (transmitter) |
| Form Factor | Desktop / rack mountable |
| Expansion / Connectivity | |
| Interfaces | 1 x HDMI output - 19 pin HDMI Type A female ¦ 1 x IR - terminal block ¦ 1 x RS-232/IR (control) - 6 pin terminal block ¦ 1 x HDBaseT (input) - RJ-45 ¦ 1 x firmware upgrade - mini-USB Type A ¦ 1 x TOSLINK (input) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Compliant Standards | FCC, cULus, RoHS, CCC, RCM, NDAA Section 889, HDCP 2.2 |
| TAA Compliant | Yes |
| Networking | |
| Connectivity Technology | Wired |
| Data Link Protocol | RS-232, HDMI, HDBaseT |
| Max Resolution | 4096 x 2160 @ 60 Hz |
| Max Transfer Distance | 328 ft |
| Status Indicators | Power, link, test mode |
| Features | 10-bit Deep Color support, 12-bit Deep Color support, 8-bit Deep Color support, Dolby Atmos support, Dolby Digital Plus support, Dolby Digital support, Dolby TrueHD support, Dolby Vision support, DTS Digital Surround support, DTS:X support, DTS-HD Master Audio support, Hybrid Log-Gamma (HLG) support, LPCM 2.0 support, LPCM 5.1 support, LPCM 7.1 support, 600 MHz pixel clock, LED status indicators, firmware upgradable, 4:4:4 chroma subsampling support, 4:4:2 chroma subsampling support, 4:2:0 chroma subsampling support |
| Compliant Standards | HDCP 2.2 |
| Power | |
| Power Device | External power adapter |
| Voltage Required | DC 48 V |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 20 - 90% RH (non-condensing) |
| Dimensions & Weight | |
| Width | 1.8 in |
| Depth | 4.4 in |
| Height | 1.4 in |
| Weight | 14.11 oz |
