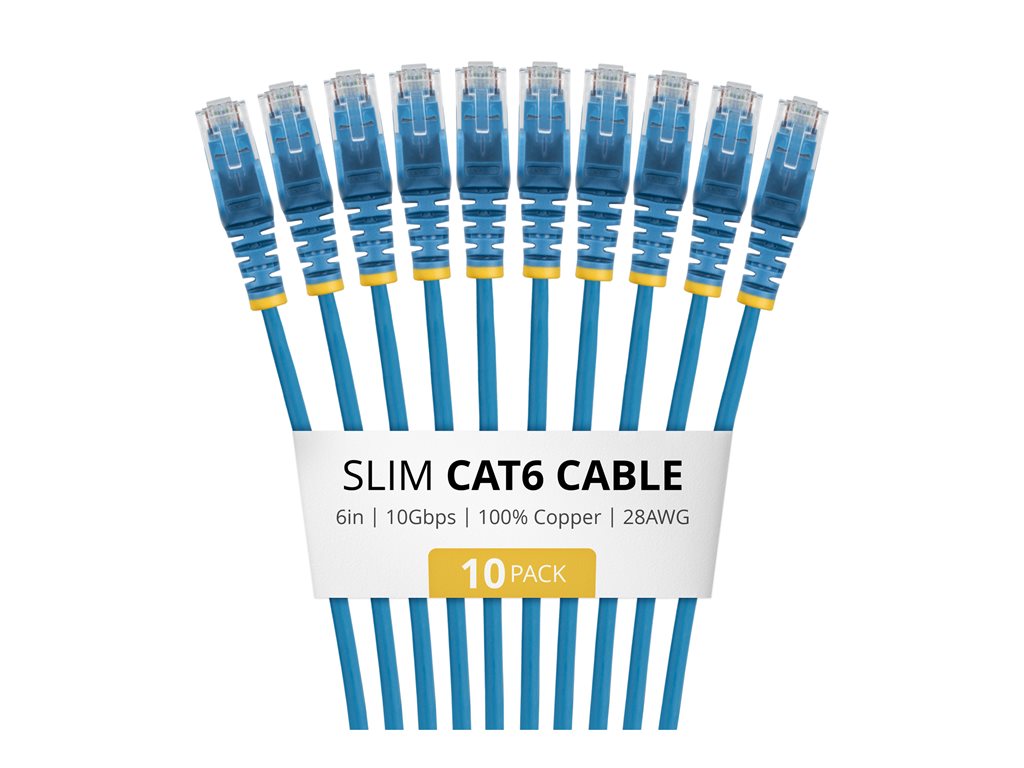

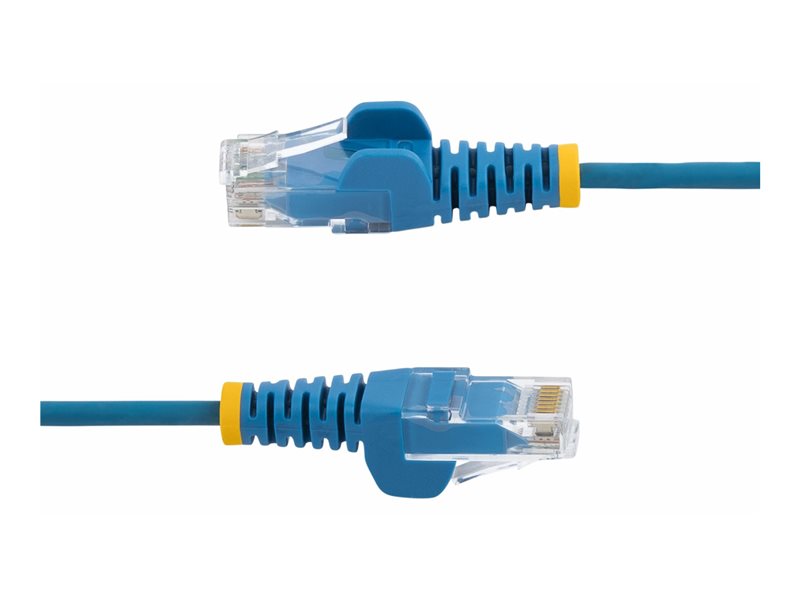

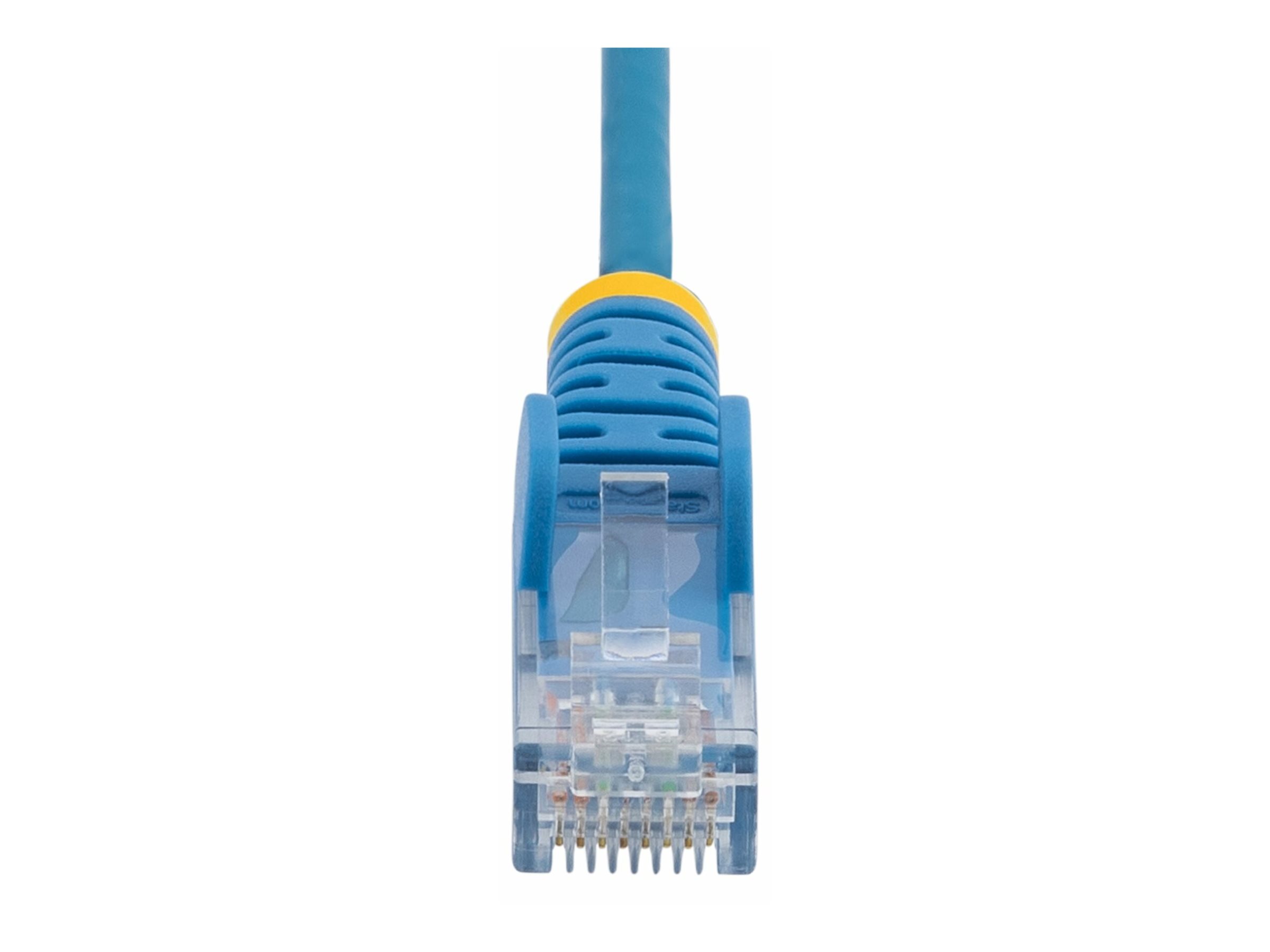

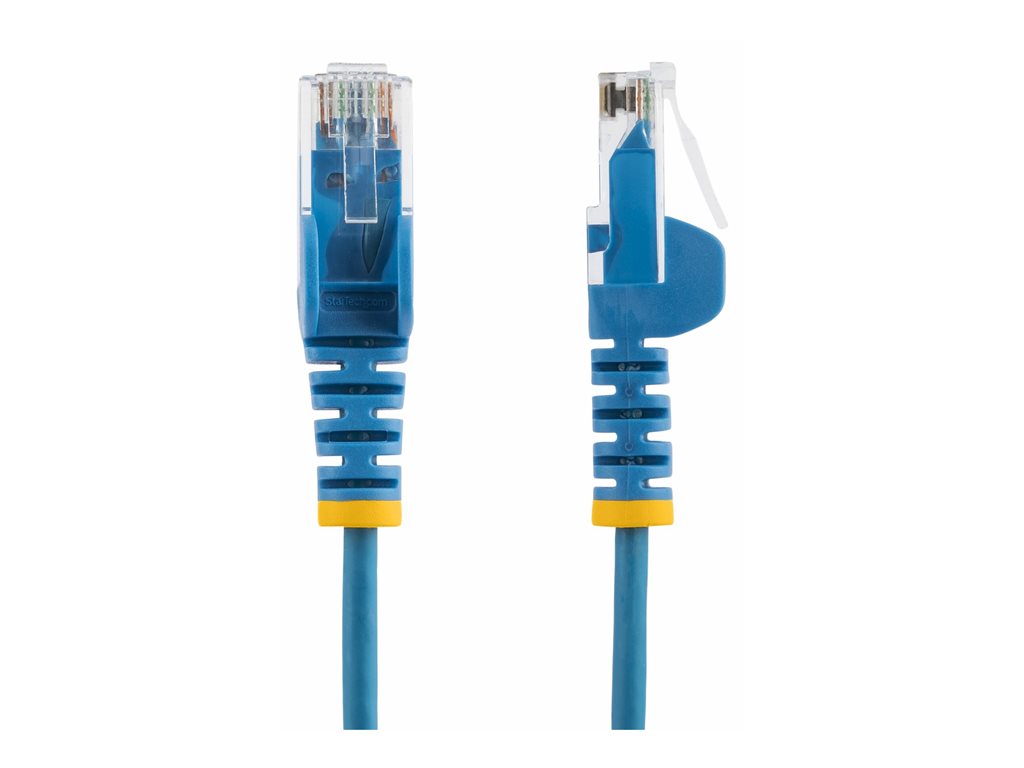

Patch cable - RJ-45 (M) to RJ-45 (M) - 20 cm - 0.1 in - UTP - CAT 6 - halogen-free, molded, snagless, stranded, up to 10 Gbps data transfer rate, slim, 100W PoE support - blue (pack of 10)
| Main Specifications | |
|---|---|
| Product Description | Startech patch cable - 20 cm - blue |
| Type | Patch cable - CAT 6 |
| Packaged Quantity | 10 (specifications are for single item) |
| Technology | UTP |
| Wiring Scheme | T568B |
| Features | Halogen-free, molded, snagless, stranded, up to 10 Gbps data transfer rate, slim, 100W PoE support, flame retardant, strain relief, minimized Near-End Crosstalk (NEXT), straight leads, pure bare copper conductors, 50 micron gold-plated connectors |
| Cable Length | 20 cm |
| Diameter | 0.1 in |
| Connector | RJ-45 - male |
| Connector (Second End) | RJ-45 - male |
| Color | Blue |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Packaged Quantity | 10 (specifications are for single item) |
| Network Cable Type | Patch cable - CAT 6 |
| Technology | UTP |
| Wiring Scheme | T568B |
| American Wire Gauge (AWG) | 28 |
| Pairs per Cable | 4 pairs |
| Plated Connector | Gold |
| Features | Halogen-free, molded, snagless, stranded, up to 10 Gbps data transfer rate, slim, 100W PoE support, flame retardant, strain relief, minimized Near-End Crosstalk (NEXT), straight leads, pure bare copper conductors, 50 micron gold-plated connectors |
| Cable Length | 20 cm |
| Diameter | 0.1 in |
| Weight | 0.18 oz |
| Color | Blue |
| Manufacturer Warranty | |
| Service & Support | Limited lifetime warranty |
| Miscellaneous | |
| Compliant Standards | RoHS, WEEE, TIA/EIA-568-B.1-2001, IEEE 802.3bt Type 4, ANSI/TIA-568.2-D Cat 6 - up to 250 MHz |
| Environmental Parameters | |
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 140 °F |
| Connectivity | |
| Connector | RJ-45 - male |
| Connector (Second End) | RJ-45 - male |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 9.4 in |
| Shipping Depth | 8.7 in |
| Shipping Height | 0.6 in |
| Shipping Weight | 5.47 oz |
