Docking station - for laptop - USB-C 3.2 Gen 2 - 2 x HDMI - 1GbE - North America
| Main Specifications | |
|---|---|
| Product Description | Startech - docking station - USB-C 3.2 Gen 2 - 2 x HDMI - 1GbE |
| Product Type | Docking station - for laptop |
| Docking Interface | USB-C 3.2 Gen 2 |
| Video Interfaces | 2 x HDMI |
| Dimensions (WxDxH) | 7.5 in x 3.1 in x 1.1 in |
| Weight | 10.58 oz |
| Color | Space gray |
| Localization | North America |
| Networking | Gigabit Ethernet |
| Power | Power adapter AC 100-240 V (DC 24 V) |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Product Type | Docking station - for laptop |
| Width | 7.5 in |
| Depth | 3.1 in |
| Height | 1.1 in |
| Weight | 10.58 oz |
| Enclosure Color | Space gray |
| Localization | North America |
| Expansion / Connectivity | |
| Interfaces | 4 x USB 3.2 Gen 1 - 9 pin USB Type A ¦ 1 x USB 3.2 Gen 2 - 24 pin USB-C ¦ 1 x USB-C 3.2 Gen 2 with Power Delivery (15 W) - 24 pin USB-C ¦ 2 x display / video - HDMI - 19 pin HDMI Type A ¦ 1 x network - 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ 1 x USB-C 3.2 Gen 2 with Power Delivery (100 W) - 24 pin USB-C |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |

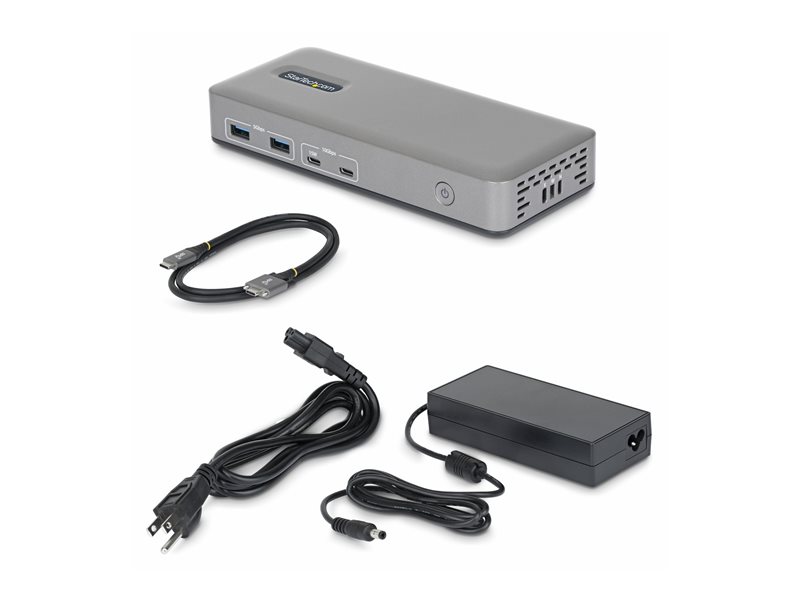

| Cables Included | 1 x USB-C host cable - detachable - 3.3 ft |
| Features | Security lock slot (cable lock sold separately), dual display support, Preboot Execution Environment (PXE) support, full duplex support, 15W power delivery, 100W power delivery, hub power LED, up to 10Gbps data transfer, 5Gbps data transfer, plastic enclosure, driverless |
| Security Slot Type | Kensington nano security slot / Kensington security slot |
| Compliant Standards | Plug and Play, FCC, RoHS, WEEE, USB Power Delivery 3.0 |
| Networking | |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Compliant Standards | USB 3.2 Gen 2, USB 3.2 Gen 1 |
| Power | |
| Power Device | Power adapter |
| Voltage Required | AC 100-240 V |
| Voltage Provided | DC 24 V |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 158 °F |
| Video | |
| Max Resolution Details | 4K - 60 Hz (Dual Display (HDMI)) |
| System Requirements | |
| OS Required | Microsoft Windows 10 / 11, Ubuntu 24.04 |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 9.8 in |
| Shipping Depth | 8.1 in |
| Shipping Height | 2 in |
| Shipping Weight | 2.2 lbs |
