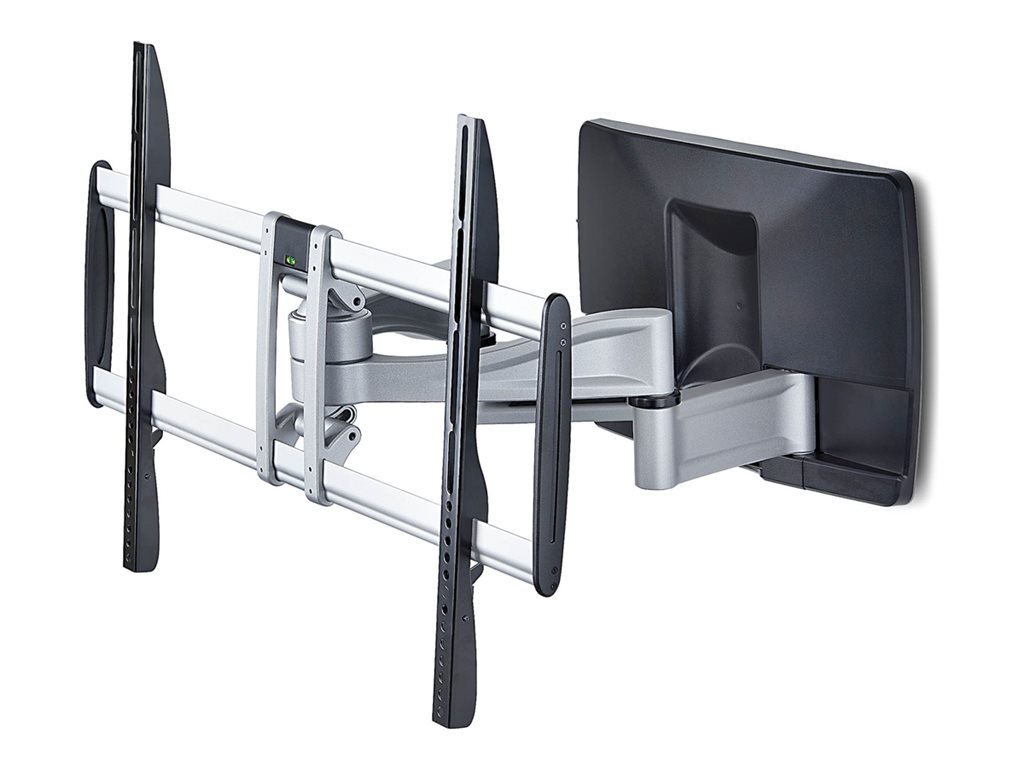

Mounting kit (wall mount, 2 vertical brackets) - articulating - for flat panel - low profile - aluminum, steel - screen size: 32"-100" - wall-mountable - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | Startech mounting kit - articulating - for flat panel - low profile - TAA Compliant |
| Product Type | Mounting kit (articulating) - wall-mountable |
| Mounting Components | Wall mount, 2 vertical brackets |
| Dimensions (WxDxH) | 20.7 in x 34.3 in x 21.7 in |

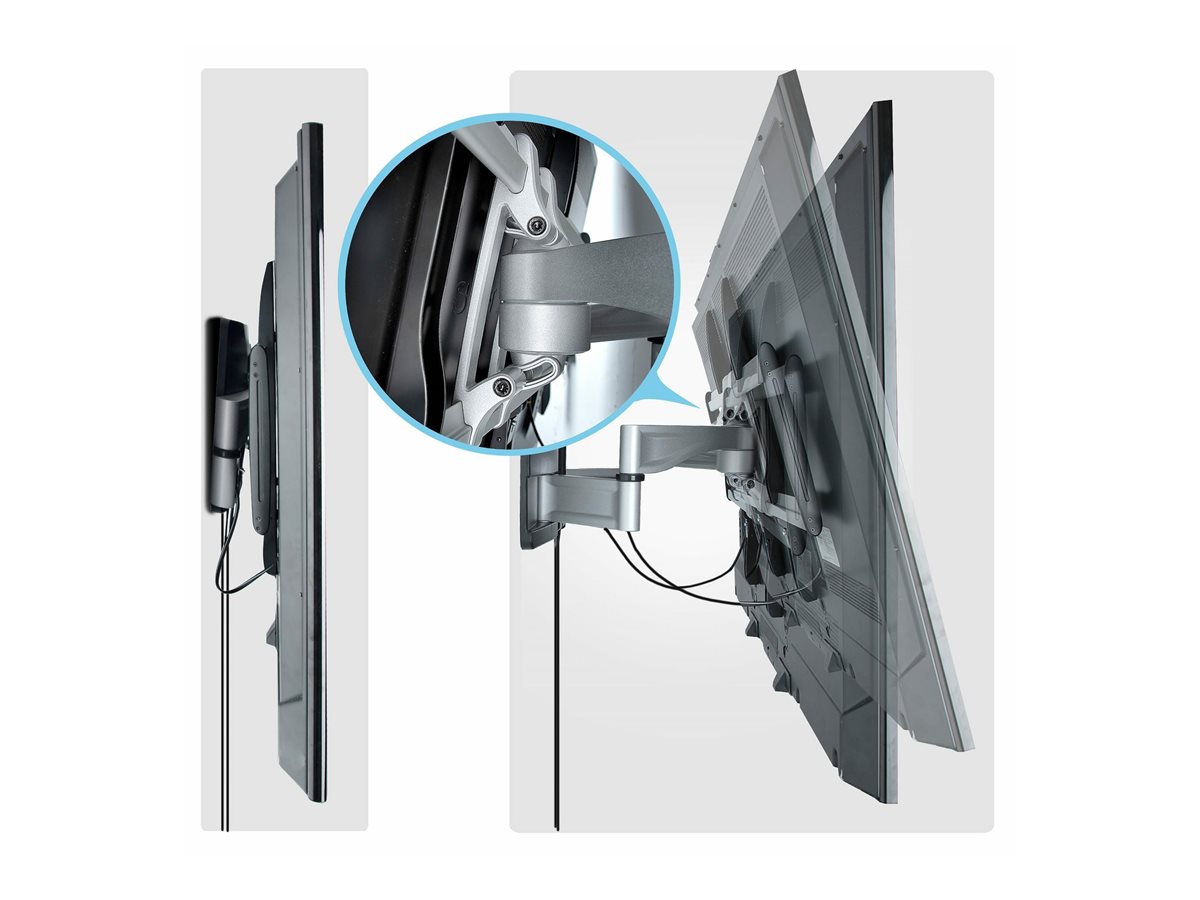

| Tilt | -12° to 2° |
| Swivel | -60° to 60° |
| Adjustments | Tilt, swivel |
| Weight | 31.37 lbs |
| Recommended Use | Flat panel |
| Recommended Display Size | 32"-100" |
| VESA Mounting Interface | 200 x 200 mm, 800 x 500 mm, 400 x 300 mm, 400 x 200 mm, 400 x 400 mm, 800 x 400 mm, 600 x 400 mm, 300 x 200 mm, 300 x 300 mm, 600 x 300 mm, 500 x 300 mm, 200 x 300 mm, 200 x 400 mm |
| Max Load Weight | 187.4 lbs |
| Material | Aluminum, steel |
| TAA Compliant | Yes |

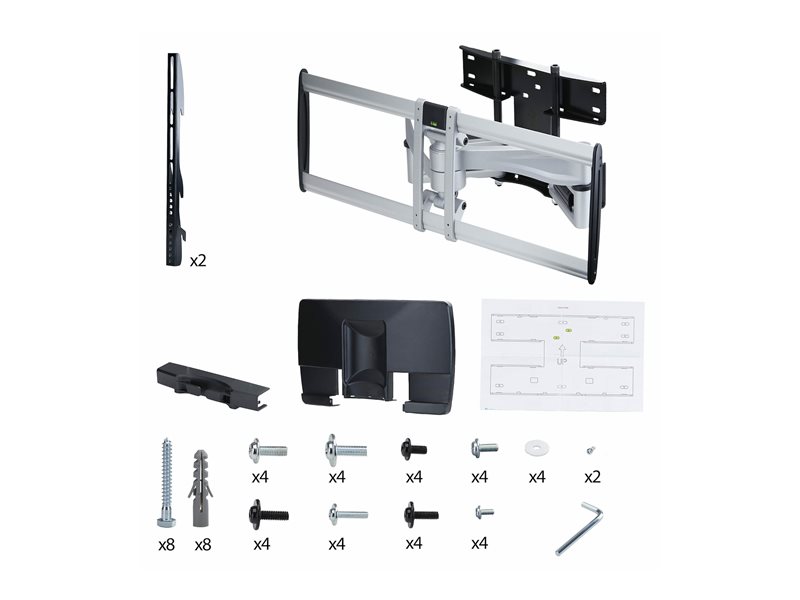

| Package Content | Hex key (6mm), mounting template, 4 x flat washers, 2 x vertical bracket screws, 8 x concrete anchors, 4 x M4 x 12 mm screws, 4 x M4 x 18 mm screws, 4 x M5 x 12 mm screws, 4 x M6 x 12 mm screws, 4 x M6 x 18 mm screws, 4 x M8x 12 mm screws, 4 x M8 x 18 mm screws, wall plate cover, 4 x M8 x 25 mm screws, 8 wall mounting screws |
| Manufacturer Warranty | 5-year warranty |
| General | |
| Width | 20.7 in |
| Depth | 34.3 in |
| Height | 21.7 in |
| Weight | 31.37 lbs |
| Material | Aluminum, steel |
| Package Content | Hex key (6mm), mounting template, 4 x flat washers, 2 x vertical bracket screws, 8 x concrete anchors, 4 x M4 x 12 mm screws, 4 x M4 x 18 mm screws, 4 x M5 x 12 mm screws, 4 x M6 x 12 mm screws, 4 x M6 x 18 mm screws, 4 x M8x 12 mm screws, 4 x M8 x 18 mm screws, wall plate cover, 4 x M8 x 25 mm screws, 8 wall mounting screws |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years ¦ Technical support - assistance - lifetime |
| AV Furniture | |
| Type | Mounting kit |
| Mounting Components | Wall mount, 2 vertical brackets |
| Design | Articulating |
| Recommended Use | Flat panel |
| Placing / Mounting | Wall-mountable |
| VESA Mounting Interface | 200 x 200 mm, 800 x 500 mm, 400 x 300 mm, 400 x 200 mm, 400 x 400 mm, 800 x 400 mm, 600 x 400 mm, 300 x 200 mm, 300 x 300 mm, 600 x 300 mm, 500 x 300 mm, 200 x 300 mm, 200 x 400 mm |
| Cable Management | Integrated cable management |
| Recommended Display Size | 32"-100" |
| Tilt | -12° to 2° |
| Swivel | -60° to 60° |
| Adjustments | Tilt, swivel |
| Max Load Weight | 187.4 lbs |
| TAA Compliant | Yes |
| Dimensions & Weight Details | |
| Dimensions | Adjustable mounting arm (minimum) - depth: 4.1 in ¦ Adjustable mounting arm (maximum) - depth: 21.7 in |
| Shipping Dimensions (WxDxH) / Weight | 37.2 in x 15.2 in x 7.1 in / 36.38 lbs |
