OC Edition - graphics card - GeForce RTX 5080 - 16 GB GDDR7 - PCIe 5.0 x16 - 3 x DisplayPort, HDMI
| Main Specifications | |
|---|---|
| Product Description | ZOTAC GAMING SOLID CORE - OC Edition - graphics card - GeForce RTX 5080 - 16 GB |
| Device Type | Graphics card |
| Bus Type | PCI Express 5.0 x16 |
| Graphics Engine | NVIDIA GeForce RTX 5080 |
| Memory | 16 GB GDDR7 |
| Memory Speed | 30 Gbps |
| CUDA Cores | 10752 |
| Memory Interface | 256-bit |
| Max Resolution | 7680 x 4320 |
| Max Monitors Supported | 4 |
| Interfaces Details | 3 x DisplayPort ¦ HDMI |
| API Supported | DirectX 12 Ultimate, OpenGL 4.6, Vulkan 1.4 |
| Dimensions (WxDxH) | 2.2 in x 11.9 in x 4.6 in |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Graphics card |
| Bus Type | PCI Express 5.0 x16 |
| Graphics Engine | NVIDIA GeForce RTX 5080 |
| CUDA Cores | 10752 |
| VR Ready | Yes |
| Max Resolution | 7680 x 4320 at 165 Hz |
| Max Monitors Supported | 4 |
| Interfaces Details | 3 x DisplayPort ¦ HDMI |
| API Supported | DirectX 12 Ultimate, OpenGL 4.6, Vulkan 1.4 |
| Features | IceStorm 3.0, Triple Fan Design, 2.5-slot Fan Cooler, NVIDIA Blackwell GPU architecture, NVIDIA DLSS 4.5, Vapor chamber cooling technology, BladeLink fans, Freeze Fan Stop, Reinforced Metal Frame, Active Fan Control, SPECTRA Lighting System, NVIDIA Reflex 2, NVIDIA Multi Frame Generation, NVIDIA Frame Warp, NVIDIA Avatar Cloud Engine (ACE), 5th gen Tensor Cores, Nvidia Broadcast, NVIDIA G-Sync ready, HDCP |
| Memory | |
| Size | 16 GB |
| Technology | GDDR7 SDRAM |
| Memory Speed | 30 Gbps |
| Bus Width | 256-bit |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Power Consumption Operational | 360 watt |

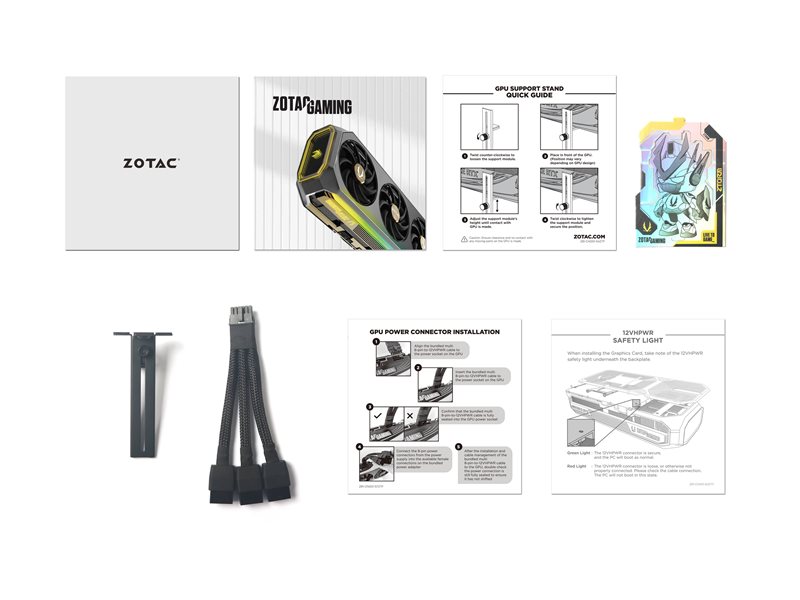

| Included Accessories | Graphics card support bracket, 16-pin to 3x 8-pin cable adapter |
| Software Included | ZOTAC FireStorm |
| Compliant Standards | DisplayPort 2.1b, Ultra High Bit Rate 20 (UHBR20), HDCP 2.3 |
| Width | 2.2 in |
| Depth | 11.9 in |
| Height | 4.6 in |
| Shipping Width | 8.1 in |
| Shipping Depth | 3.9 in |
| Shipping Height | 16.7 in |
| System Requirements | |
| OS Required | Windows 11, Windows 10 64-bit Edition |
| Required Power Supply | 850 W |
| Additional Requirements | 16 pin PCI Express power connector |
