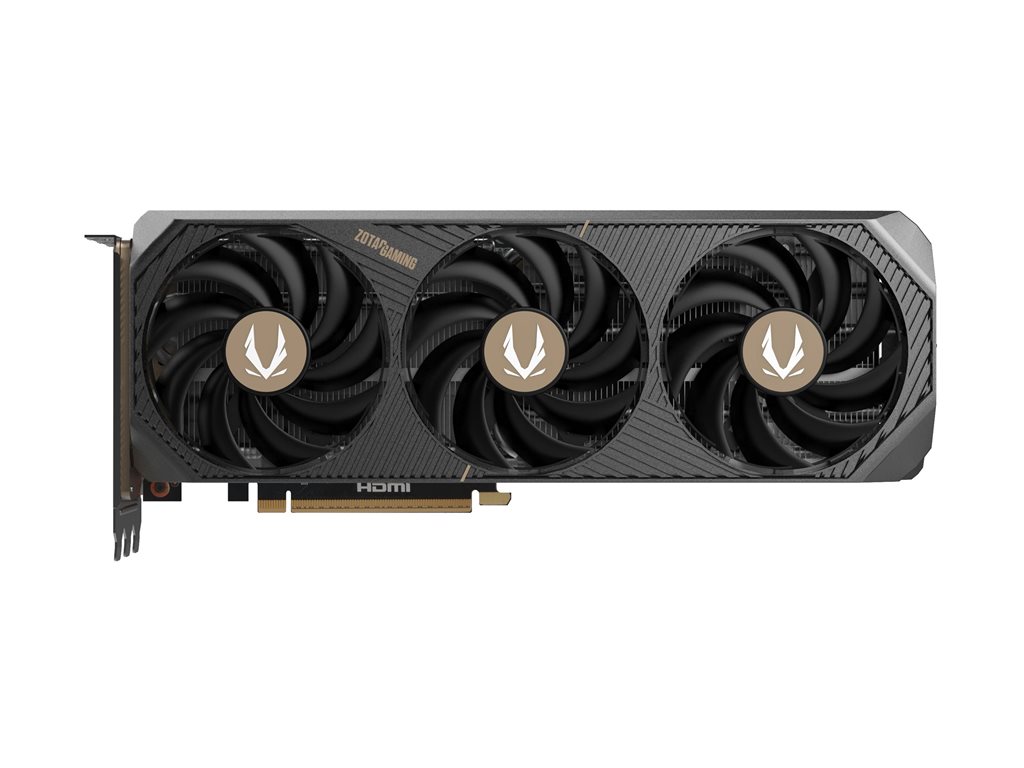

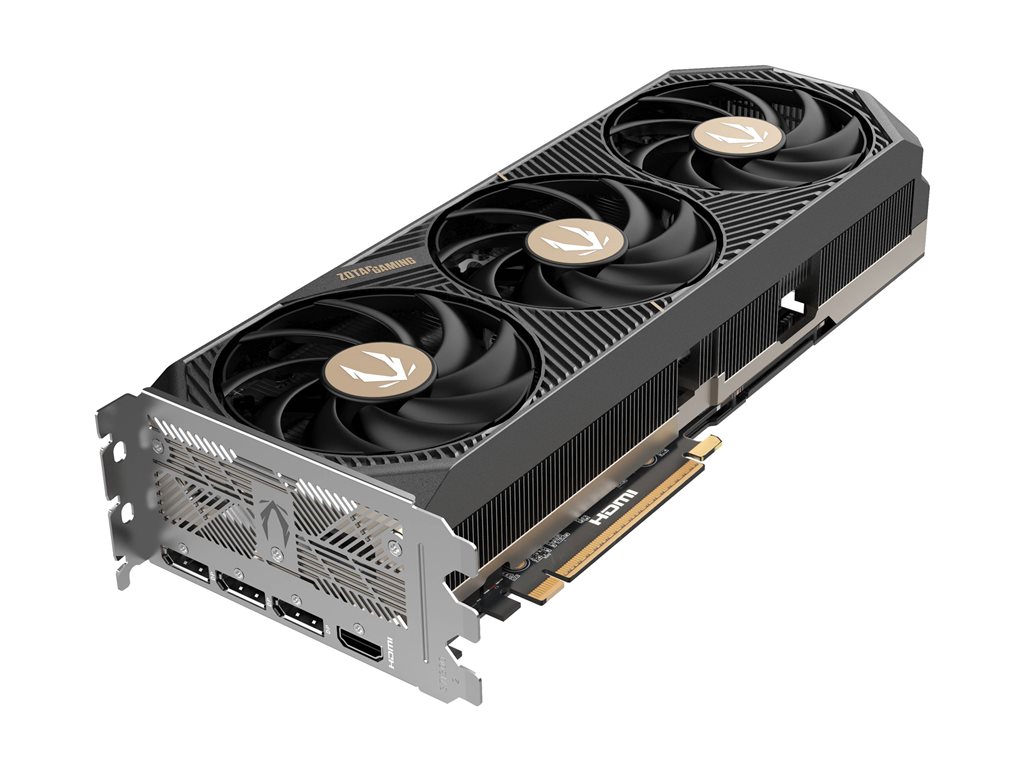

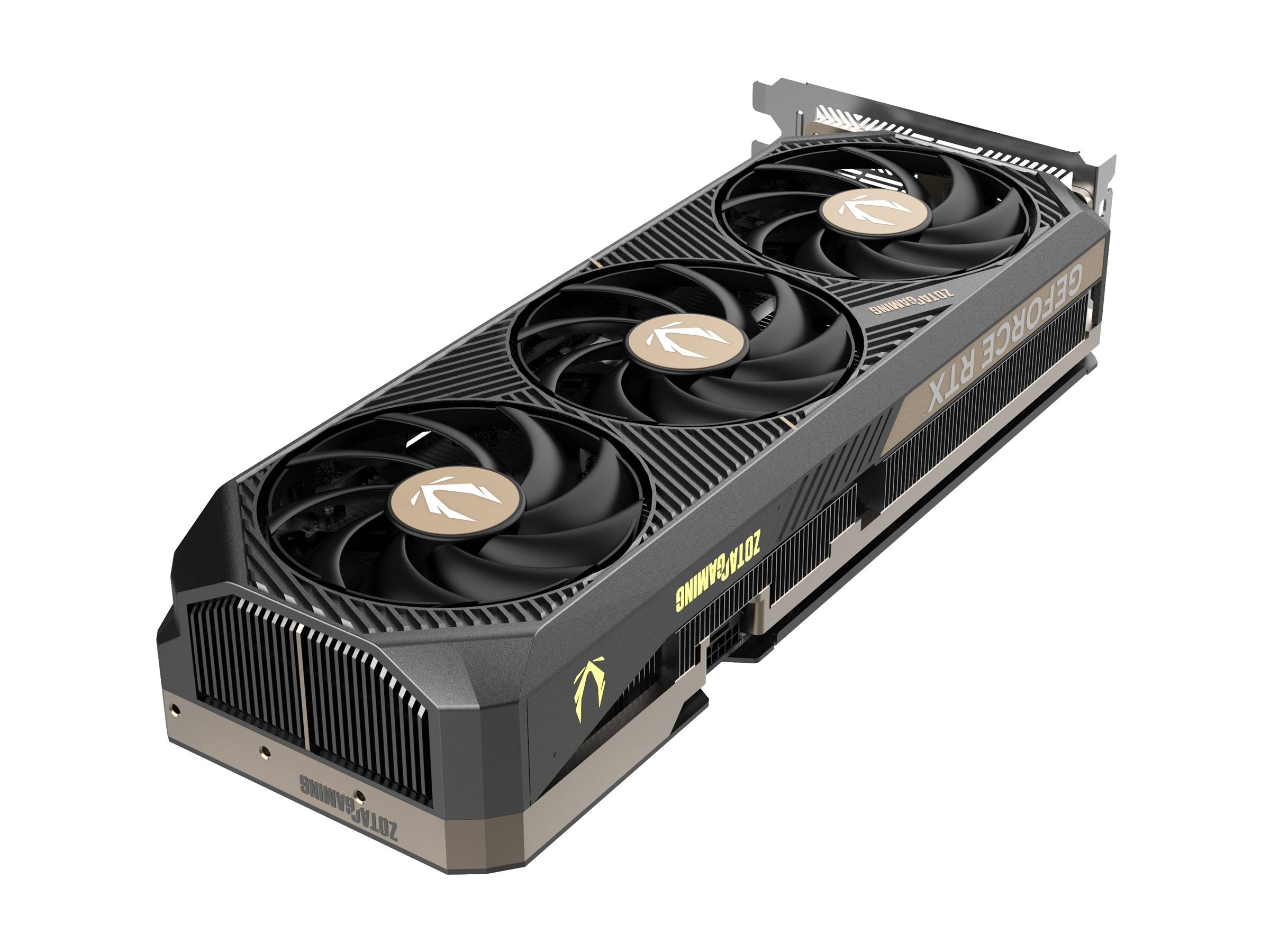

OC Edition - graphics card - GeForce RTX 5070 - 12 GB GDDR7 - PCIe 5.0 x16 - 3 x DisplayPort, HDMI
| Main Specifications | |
|---|---|
| Product Description | ZOTAC GAMING SOLID CORE - OC Edition - graphics card - GeForce RTX 5070 - 12 GB |
| Device Type | Graphics card |
| Bus Type | PCI Express 5.0 x16 |
| Graphics Engine | NVIDIA GeForce RTX 5070 |
| Memory | 12 GB GDDR7 |
| Memory Speed | 28 Gbps |
| Core Clock | 2542 MHz |
| CUDA Cores | 6144 |
| Memory Interface | 192-bit |
| Max Resolution | 7680 x 4320 |
| Max Monitors Supported | 4 |

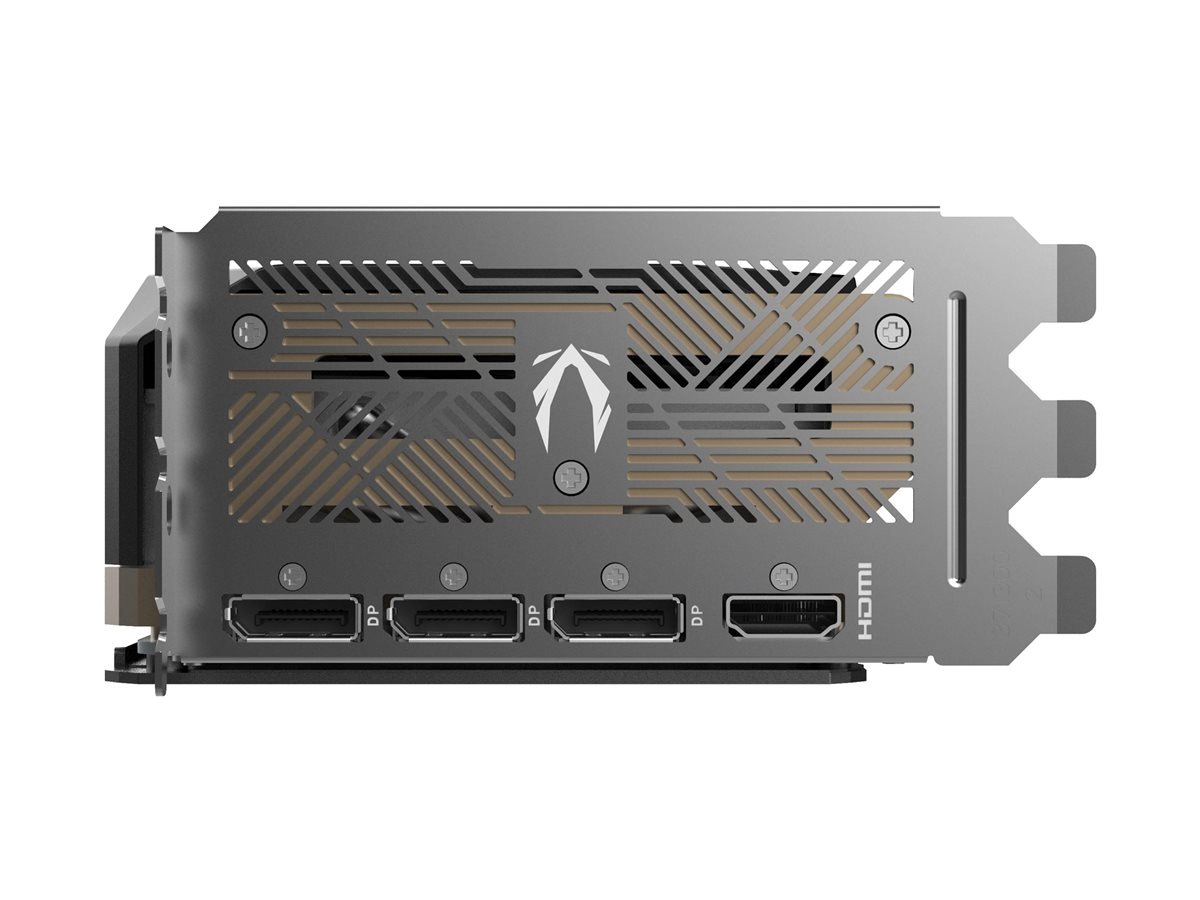

| Interfaces Details | 3 x DisplayPort ¦ HDMI |
| API Supported | DirectX 12 Ultimate, OpenGL 4.6 |
| Dimensions (WxDxH) | 1.6 in x 12 in x 4.6 in |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Graphics card |
| Bus Type | PCI Express 5.0 x16 |
| Graphics Engine | NVIDIA GeForce RTX 5070 |
| Core Clock | 2542 MHz |
| CUDA Cores | 6144 |
| VR Ready | Yes |
| Max Resolution | 7680 x 4320 at 165 Hz |
| Max Monitors Supported | 4 |
| Interfaces Details | 3 x DisplayPort ¦ HDMI |
| API Supported | DirectX 12 Ultimate, OpenGL 4.6 |

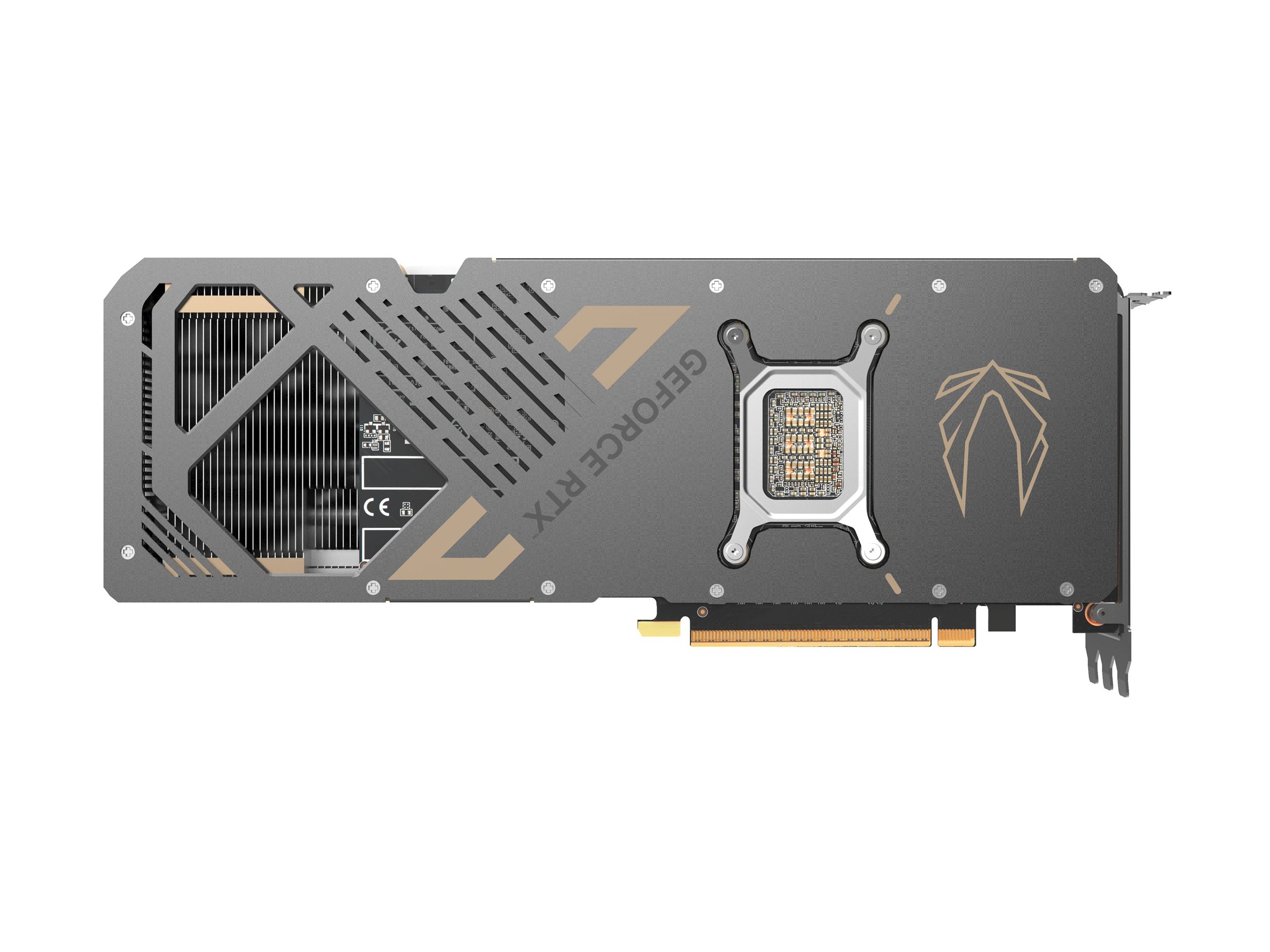

| Features | IceStorm 2.0, Triple Fan Design, 2-slot Fan Cooler, NVIDIA Blackwell GPU architecture, NVIDIA DLSS 4, NVIDIA GeForce SFF-Ready, BladeLink fans, SPECTRA Lighting System, metal backplate, Freeze Fan Stop, 5th gen Tensor Cores, 4th gen Ray Tracing Cores, Nvidia Broadcast, NVIDIA G-Sync ready, NVIDIA Multi Frame Generation, NVIDIA Frame Warp, NVIDIA Avatar Cloud Engine (ACE), NVIDIA Reflex 2, HDCP |
| Memory | |
| Size | 12 GB |
| Technology | GDDR7 SDRAM |
| Memory Speed | 28 Gbps |
| Bus Width | 192-bit |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Power Consumption Operational | 250 watt |

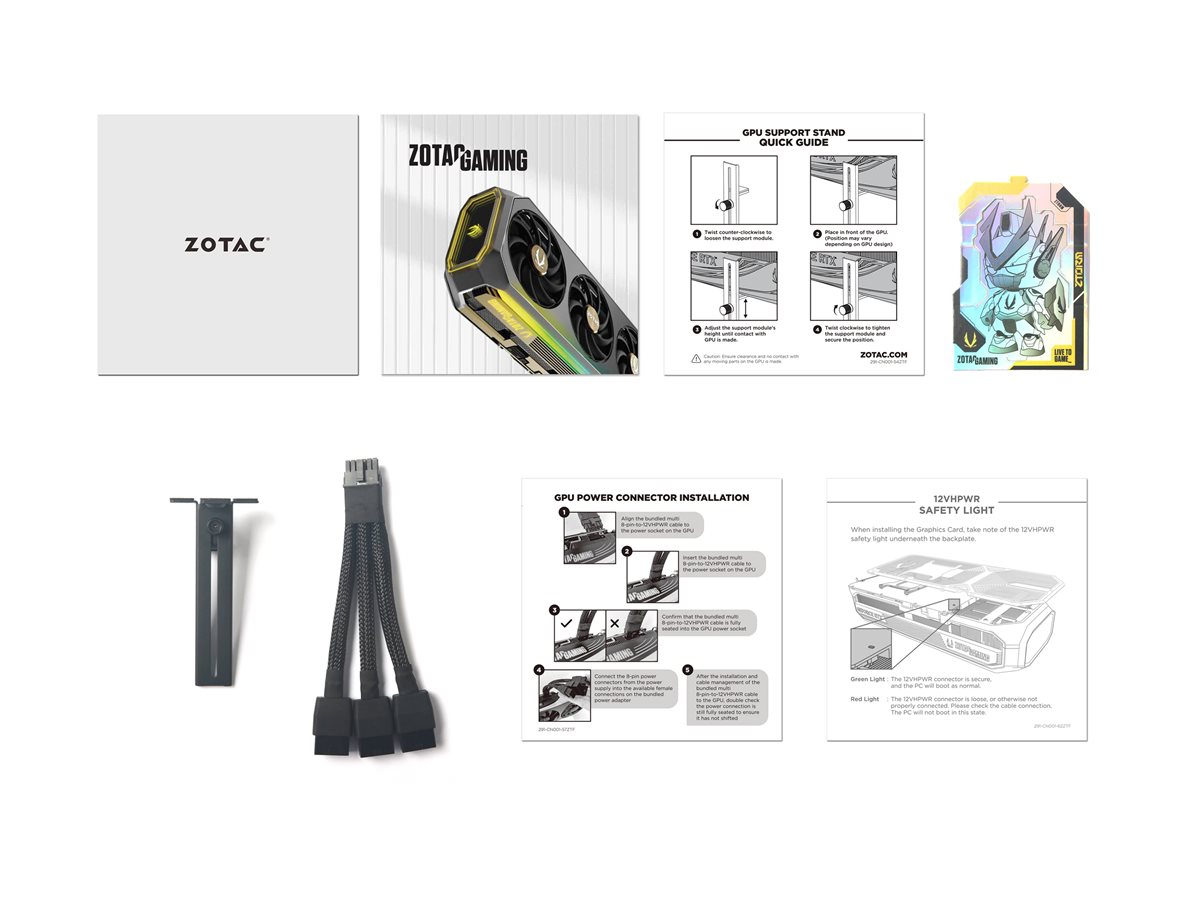

| Included Accessories | Graphics card support bracket, 16-pin to 2x 8-pin cable adapter |
| Software Included | ZOTAC FireStorm |
| Compliant Standards | DisplayPort 2.1b, Ultra High Bit Rate 20 (UHBR20), HDCP 2.3 |
| Width | 1.6 in |
| Depth | 12 in |
| Height | 4.6 in |
| System Requirements | |
| OS Required | Windows 11, Windows 10 64-bit Edition |
| Required Power Supply | 650 W |
| Additional Requirements | 16 pin PCI Express power connector |
