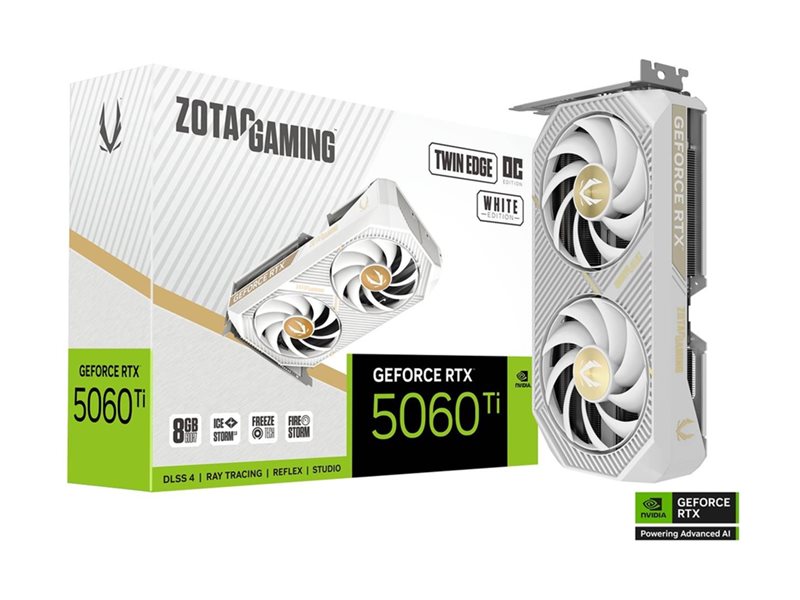

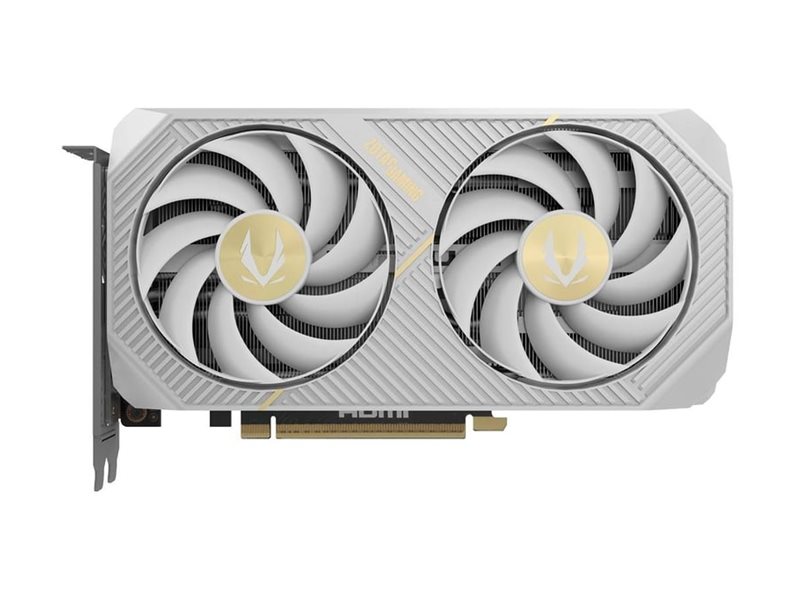

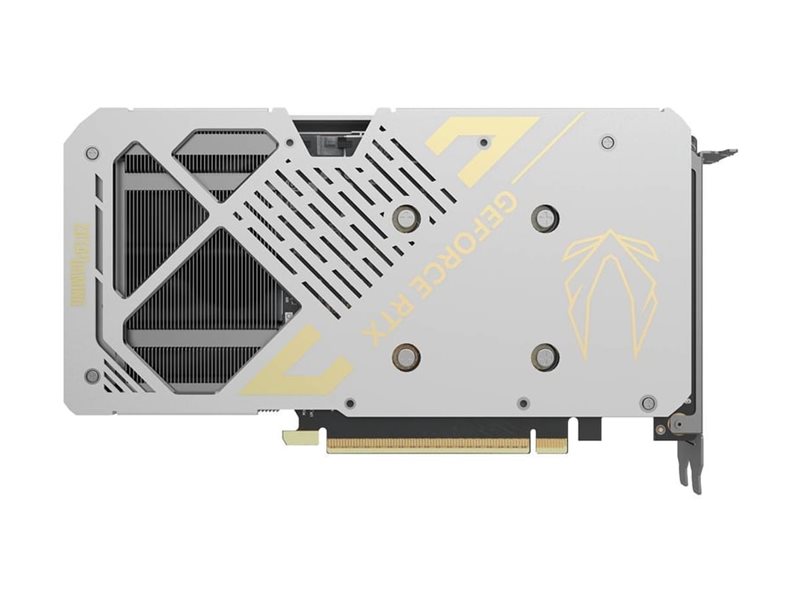

White OC Edition - graphics card - GeForce RTX 5060 Ti - 8 GB GDDR7 - PCIe 5.0 x8 - 3 x DisplayPort, HDMI - white
| Main Specifications | |
|---|---|
| Product Description | ZOTAC GAMING Twin Edge - White OC Edition - graphics card - GeForce RTX 5060 Ti - 8 GB - white |
| Device Type | Graphics card |
| Bus Type | PCI Express 5.0 x8 |
| Graphics Engine | NVIDIA GeForce RTX 5060 Ti - up to 759 TOPS |
| Memory | 8 GB GDDR7 |
| Memory Speed | 28 Gbps |
| Boost Clock | 2602 MHz |
| CUDA Cores | 4608 |
| Memory Interface | 128-bit |
| Max Resolution | 7680 x 4320 |
| Max Monitors Supported | 4 |
| Interfaces Details | 3 x DisplayPort (Display Stream Compression (DSC)) ¦ HDMI |
| API Supported | DirectX 12 Ultimate, OpenGL 4.6, Vulkan 1.4 |
| Dimensions (WxDxH) | 1.6 in x 8.7 in x 4.7 in |
| Enclosure Color | White |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Graphics card |
| Bus Type | PCI Express 5.0 x8 |
| Graphics Engine | NVIDIA GeForce RTX 5060 Ti |
| Boost Clock | 2602 MHz |
| CUDA Cores | 4608 |
| VR Ready | Yes |
| Max Resolution | 7680 x 4320 at 165 Hz |
| Max Monitors Supported | 4 |
| Interfaces Details | 3 x DisplayPort (Display Stream Compression (DSC)) ¦ HDMI |
| API Supported | DirectX 12 Ultimate, OpenGL 4.6, Vulkan 1.4 |
| Features | Dual Fan Design, 2-slot Fan Cooler, IceStorm 2.0, NVIDIA Blackwell GPU architecture, NVIDIA DLSS 4, NVIDIA GeForce SFF-Ready, 90mm BladeLink fans, Freeze Fan Stop, metal backplate, 5th gen Tensor Cores, NVIDIA Multi Frame Generation, NVIDIA Reflex 2, NVIDIA Frame Warp, NVIDIA Avatar Cloud Engine (ACE), 9th Gen NVIDIA Encoder, Nvidia Broadcast, NVIDIA G-Sync ready, Nvidia Studio, 4th gen Ray Tracing Cores, Variable Refresh Rate (VRR), HDCP |
| Memory | |
| Size | 8 GB |
| Technology | GDDR7 SDRAM |
| Memory Speed | 28 Gbps |
| Bus Width | 128-bit |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Power Consumption Operational | 180 watt |
| Software Included | ZOTAC FireStorm |
| Compliant Standards | DisplayPort 2.1b, Ultra High Bit Rate 20 (UHBR20), HDCP 2.3 |
| Width | 1.6 in |
| Depth | 8.7 in |
| Height | 4.7 in |
| Shipping Width | 8.6 in |
| Shipping Depth | 3.3 in |
| Shipping Height | 11.1 in |
| Enclosure Color | White |
| System Requirements | |
| OS Required | Windows 11, Windows 10 64-bit Edition |
| Required Power Supply | 600 W |
| Additional Requirements | 8 pin PCI Express power connector |
| Performance | |
| NPU Performance Up To (TOPS) | 759 TOPS |
