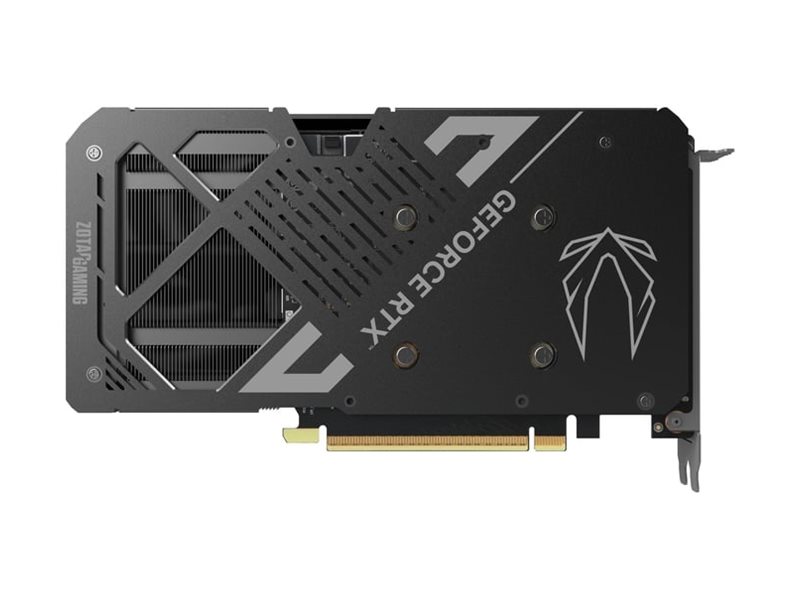

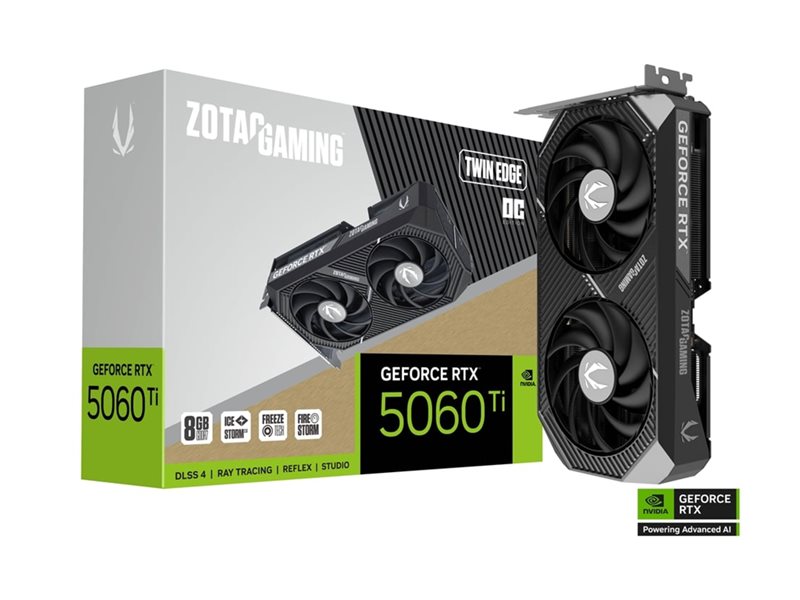

OC Edition - graphics card - GeForce RTX 5060 Ti - 8 GB GDDR7 - PCIe 5.0 x8 - 3 x DisplayPort, HDMI
| Main Specifications | |
|---|---|
| Product Description | ZOTAC GAMING Twin Edge - OC Edition - graphics card - GeForce RTX 5060 Ti - 8 GB |
| Device Type | Graphics card |
| Bus Type | PCI Express 5.0 x8 |
| Graphics Engine | NVIDIA GeForce RTX 5060 Ti - up to 759 TOPS |
| Memory | 8 GB GDDR7 |
| Memory Speed | 28 Gbps |
| Boost Clock | 2602 MHz |
| CUDA Cores | 4608 |
| Memory Interface | 128-bit |
| Max Resolution | 7680 x 4320 |
| Max Monitors Supported | 4 |
| Interfaces Details | 3 x DisplayPort (Display Stream Compression (DSC)) ¦ HDMI |
| API Supported | DirectX 12 Ultimate, OpenGL 4.6, Vulkan 1.4 |
| Dimensions (WxDxH) | 1.6 in x 8.7 in x 4.7 in |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Graphics card |
| Bus Type | PCI Express 5.0 x8 |
| Graphics Engine | NVIDIA GeForce RTX 5060 Ti |
| Boost Clock | 2602 MHz |
| CUDA Cores | 4608 |
| VR Ready | Yes |
| Max Resolution | 7680 x 4320 at 165 Hz |
| Max Monitors Supported | 4 |
| Interfaces Details | 3 x DisplayPort (Display Stream Compression (DSC)) ¦ HDMI |
| API Supported | DirectX 12 Ultimate, OpenGL 4.6, Vulkan 1.4 |
| Features | IceStorm 2.0, Dual Fan Design, 2-slot Fan Cooler, 90mm BladeLink fans, Nvidia Broadcast, Nvidia Studio, NVIDIA G-Sync ready, NVIDIA DLSS 4, 5th gen Tensor Cores, 4th gen Ray Tracing Cores, NVIDIA Blackwell GPU architecture, Freeze Fan Stop, metal backplate, NVIDIA GeForce SFF-Ready, Variable Refresh Rate (VRR), NVIDIA Reflex 2, NVIDIA Frame Warp, NVIDIA Avatar Cloud Engine (ACE), NVIDIA Multi Frame Generation, 9th Gen NVIDIA Encoder, HDCP |
| Memory | |
| Size | 8 GB |
| Technology | GDDR7 SDRAM |
| Memory Speed | 28 Gbps |
| Bus Width | 128-bit |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Power Consumption Operational | 180 watt |
| Software Included | ZOTAC FireStorm |
| Compliant Standards | DisplayPort 2.1b, Ultra High Bit Rate 20 (UHBR20), HDCP 2.3 |
| Width | 1.6 in |
| Depth | 8.7 in |
| Height | 4.7 in |
| Shipping Width | 8.6 in |
| Shipping Depth | 3.3 in |
| Shipping Height | 11.1 in |
| System Requirements | |
| OS Required | Windows 11, Windows 10 64-bit Edition |
| Required Power Supply | 600 W |
| Additional Requirements | 8 pin PCI Express power connector |
| Performance | |
| NPU Performance Up To (TOPS) | 759 TOPS |
