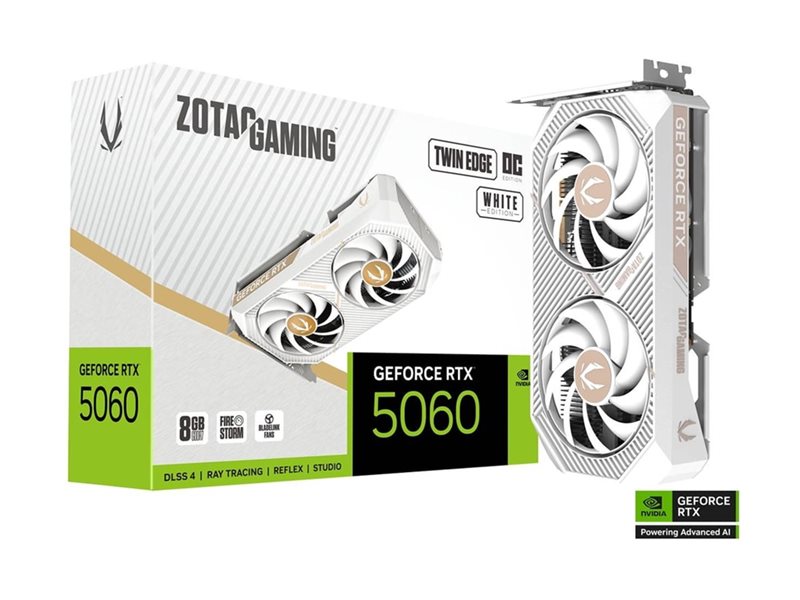

White OC Edition - graphics card - GeForce RTX 5060 - 8 GB GDDR7 - PCIe 5.0 x8 - HDMI, 3 x DisplayPort - white
| Main Specifications | |
|---|---|
| Product Description | ZOTAC GAMING Twin Edge - White OC Edition - graphics card - GeForce RTX 5060 - 8 GB - white |
| Device Type | Graphics card |
| Bus Type | PCI Express 5.0 x8 |
| Graphics Engine | NVIDIA GeForce RTX 5060 - up to 614 TOPS |
| Memory | 8 GB GDDR7 |
| Memory Speed | 28 Gbps |
| Boost Clock | 2527 MHz |
| CUDA Cores | 3840 |
| Memory Interface | 128-bit |
| Max Resolution | 7680 x 4320 |
| Max Monitors Supported | 4 |
| Interfaces Details | 3 x DisplayPort ¦ HDMI |
| API Supported | DirectX 12 Ultimate, OpenGL 4.6 |
| Dimensions (WxDxH) | 1.6 in x 8.7 in x 4.7 in |
| Enclosure Color | White |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Graphics card |
| Bus Type | PCI Express 5.0 x8 |
| Graphics Engine | NVIDIA GeForce RTX 5060 |
| Boost Clock | 2527 MHz |
| CUDA Cores | 3840 |
| Max Resolution | 7680 x 4320 at 165 Hz |
| Max Monitors Supported | 4 |
| Interfaces Details | 3 x DisplayPort ¦ HDMI |
| API Supported | DirectX 12 Ultimate, OpenGL 4.6 |
| Features | NVIDIA Blackwell GPU architecture, 2-slot Fan Cooler, Dual Fan Design, NVIDIA DLSS 4, NVIDIA GeForce SFF-Ready, metal backplate, BladeLink fans, 5th gen Tensor Cores, NVIDIA Multi Frame Generation, NVIDIA Reflex 2, NVIDIA Frame Warp, NVIDIA Avatar Cloud Engine (ACE), Nvidia Studio, Nvidia Broadcast, 9th Gen NVIDIA Encoder, NVIDIA G-Sync ready, HDCP |
| Memory | |
| Size | 8 GB |
| Technology | GDDR7 SDRAM |
| Memory Speed | 28 Gbps |
| Bus Width | 128-bit |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Power Consumption Operational | 145 watt |
| Software Included | ZOTAC FireStorm |
| Compliant Standards | DisplayPort 2.1b, HDCP 2.3, Ultra High Bit Rate 20 (UHBR20) |
| Width | 1.6 in |
| Depth | 8.7 in |
| Height | 4.7 in |
| Enclosure Color | White |
| System Requirements | |
| OS Required | Windows 11 |
| Required Power Supply | 550 W |
| Additional Requirements | 8 pin PCI Express power connector |
| Performance | |
| NPU Performance Up To (TOPS) | 614 TOPS |
