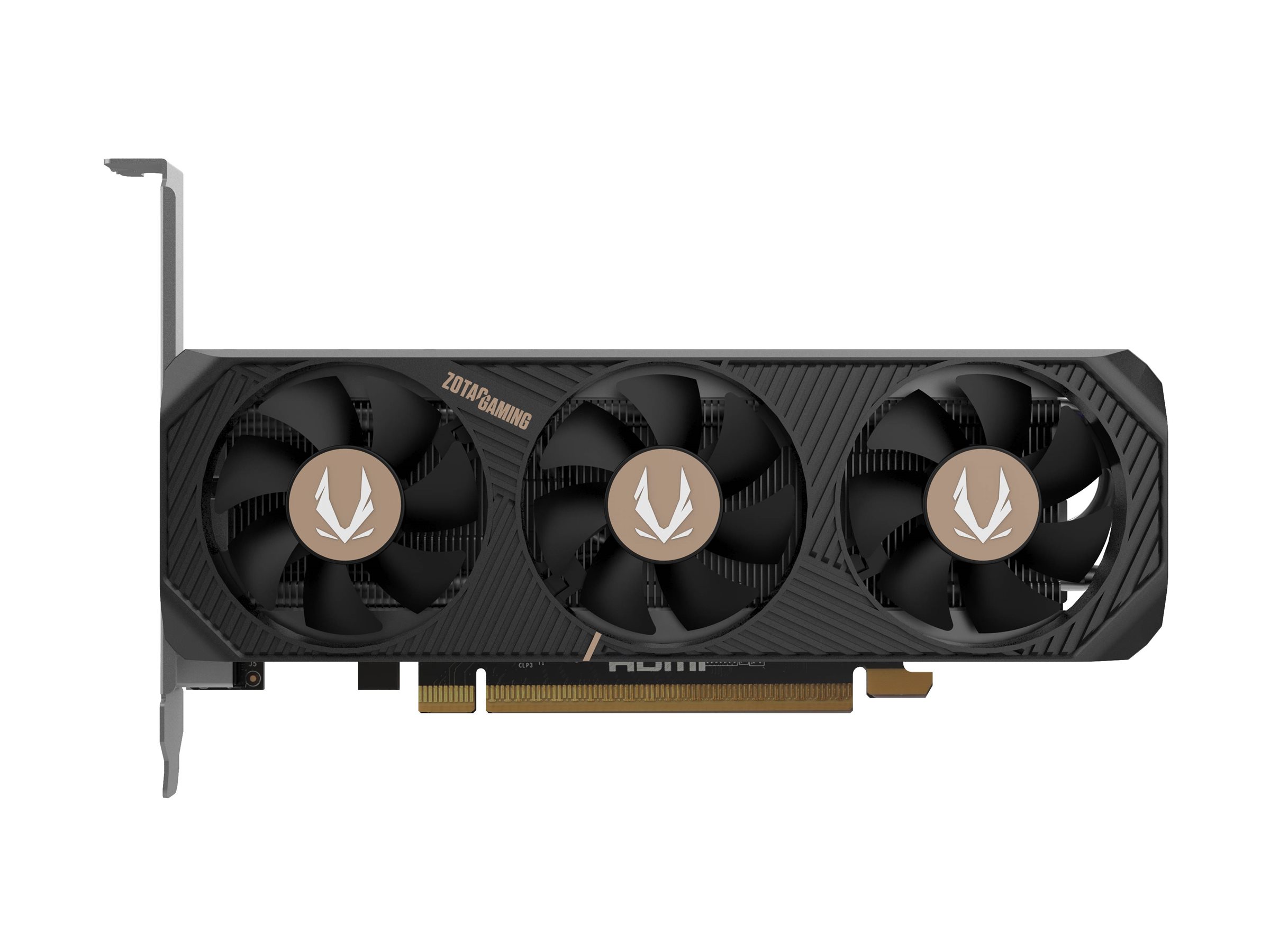

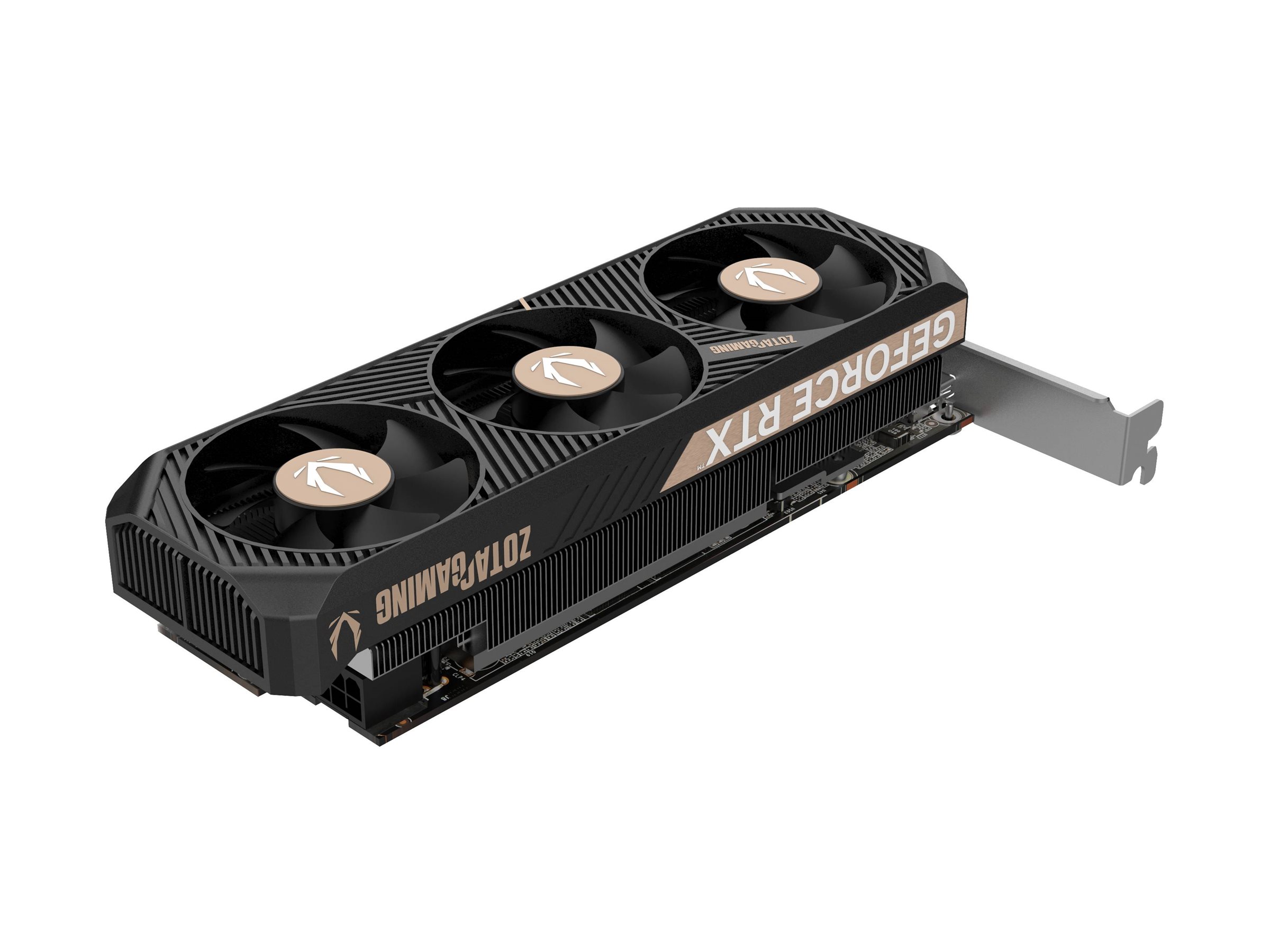

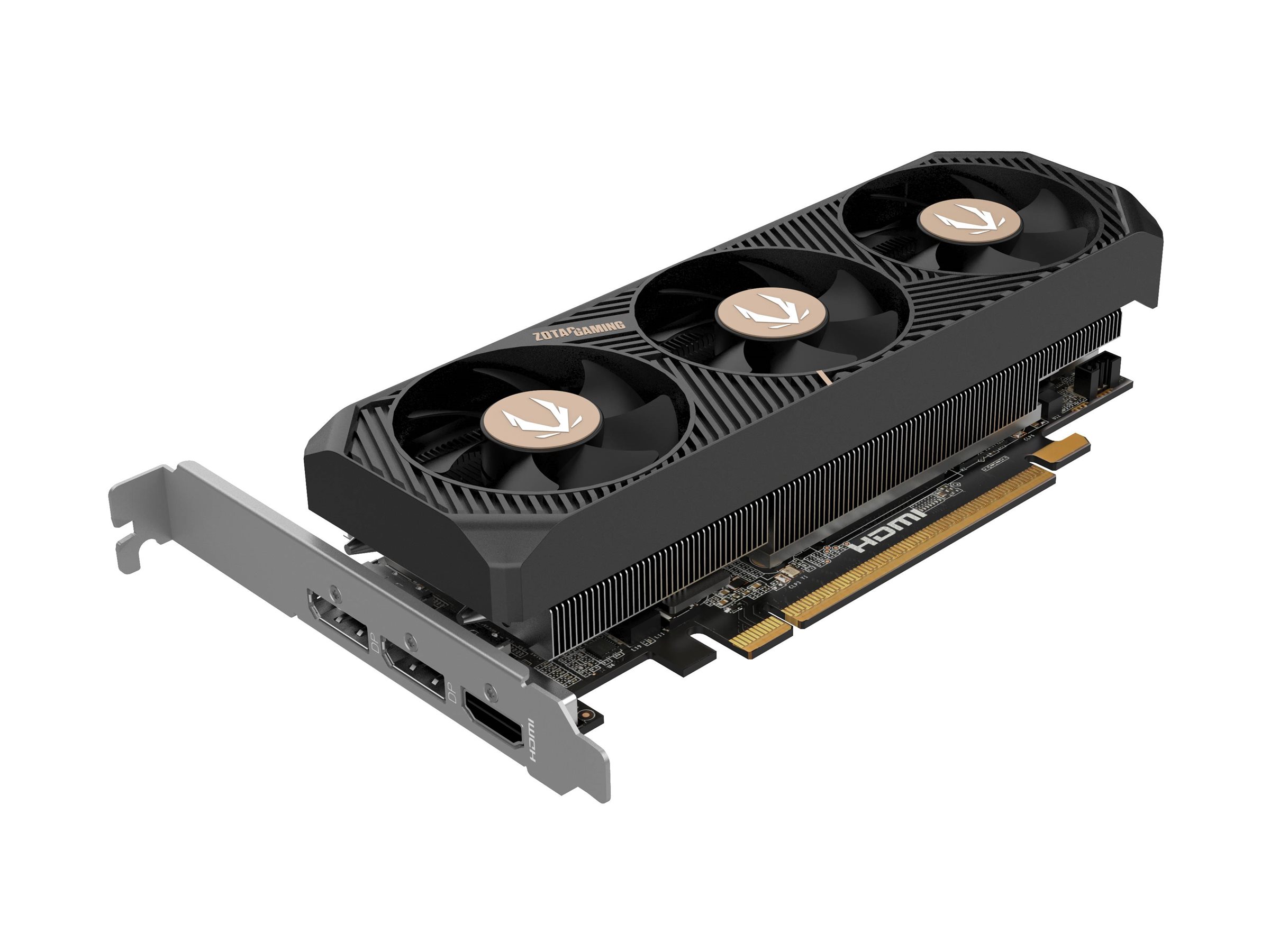

Graphics card - GeForce RTX 5060 - 8 GB GDDR7 - PCIe 5.0 x8 low profile - 2 x DisplayPort, HDMI
| Main Specifications | |
|---|---|
| Product Description | ZOTAC GAMING - graphics card - GeForce RTX 5060 - 8 GB |
| Device Type | Graphics card - low profile |
| Bus Type | PCI Express 5.0 x8 |
| Graphics Engine | NVIDIA GeForce RTX 5060 - up to 614 TOPS |
| Memory | 8 GB GDDR7 |
| Memory Speed | 28 Gbps |
| Core Clock | 2497 MHz |
| CUDA Cores | 3840 |
| Memory Interface | 128-bit |
| Max Resolution | 7680 x 4320 |
| Max Monitors Supported | 3 |

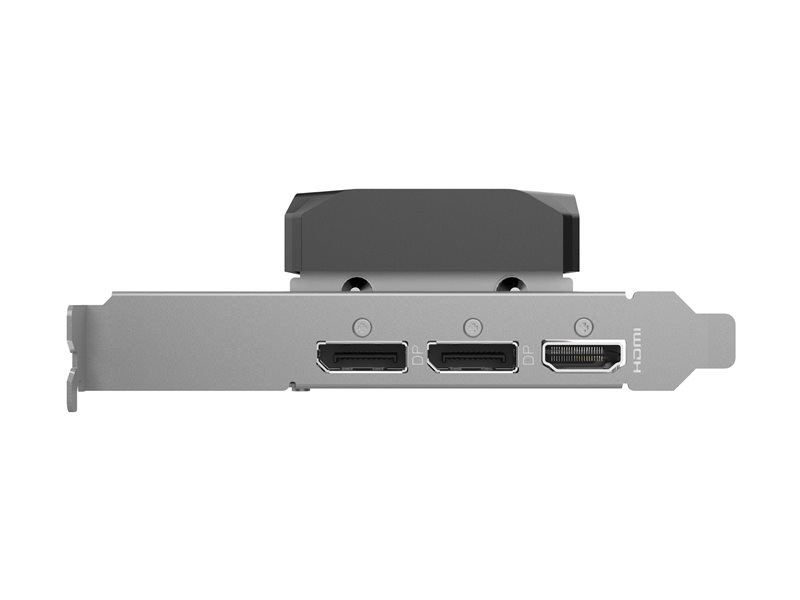

| Interfaces Details | 2 x DisplayPort (Display Stream Compression (DSC)) ¦ HDMI |
| API Supported | DirectX 12 Ultimate, OpenGL 4.6, Vulkan 1.4 |
| Dimensions (WxDxH) | 1.5 in x 7.2 in x 2.7 in |
| General | |
| Device Type | Graphics card - low profile |
| Bus Type | PCI Express 5.0 x8 |
| Graphics Engine | NVIDIA GeForce RTX 5060 |
| Core Clock | 2497 MHz |
| CUDA Cores | 3840 |
| Max Resolution | 7680 x 4320 at 120 Hz |
| Max Monitors Supported | 3 |
| Interfaces Details | 2 x DisplayPort (Display Stream Compression (DSC)) ¦ HDMI |
| API Supported | DirectX 12 Ultimate, OpenGL 4.6, Vulkan 1.4 |
| Features | NVIDIA Blackwell GPU architecture, Triple Fan Design, NVIDIA DLSS 4, 2-slot Fan Cooler, 5th gen Tensor Cores, 4th gen Ray Tracing Cores, NVIDIA G-Sync ready, NVIDIA Multi Frame Generation, NVIDIA Reflex 2, NVIDIA Frame Warp, NVIDIA Avatar Cloud Engine (ACE), Nvidia Studio, Nvidia Broadcast, 9th Gen NVIDIA Encoder, HDCP |
| Memory | |
| Size | 8 GB |
| Technology | GDDR7 SDRAM |
| Memory Speed | 28 Gbps |
| Bus Width | 128-bit |
| Miscellaneous | |
| Power Consumption Operational | 145 Watt |

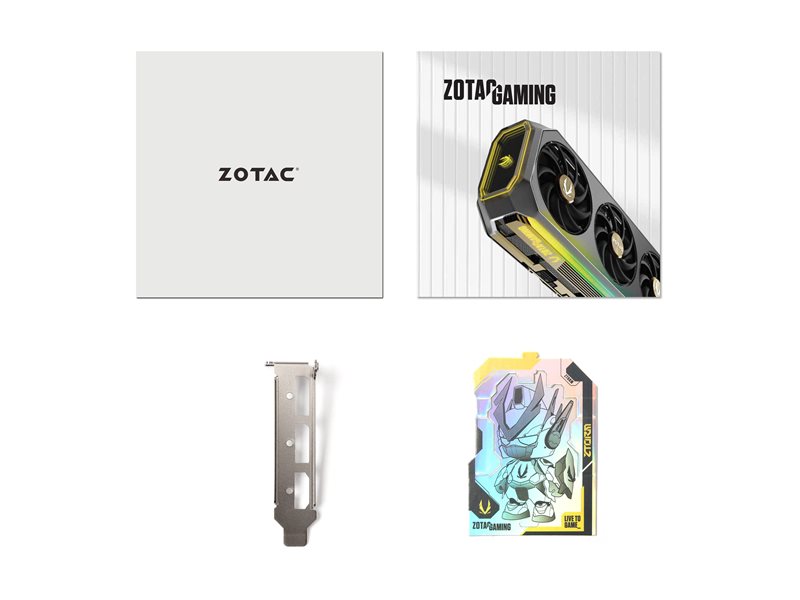

| Included Accessories | Low-profile bracket |
| Software Included | GeForce Game Ready Drivers, NVIDIA Studio drivers, GeForce Experience, ZOTAC FireStorm |
| Compliant Standards | DisplayPort 2.1b, Ultra High Bit Rate 20 (UHBR20), HDCP 2.3 |
| Width | 1.5 in |
| Depth | 7.2 in |
| Height | 2.7 in |
| Shipping Width | 8.5 in |
| Shipping Depth | 2.2 in |
| Shipping Height | 11 in |
| System Requirements | |
| Required Power Supply | 550 W |
| Additional Requirements | 8 pin PCI Express power connector |
| Performance | |
| NPU Performance Up To (TOPS) | 614 TOPS |
