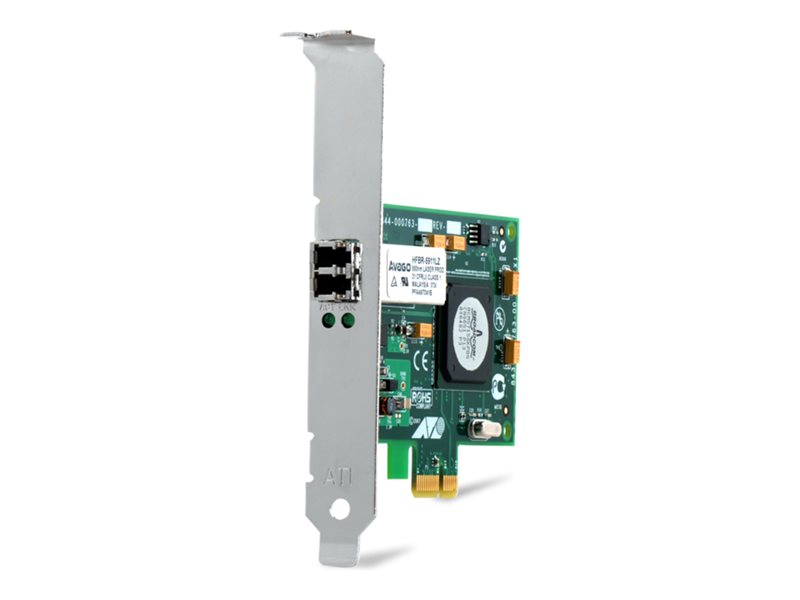

Network adapter - PCI Express x1 low profile - 10/100 Ethernet x 1 - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | Allied Telesis AT-2711FXA/LC - network adapter - PCI Express x1 - 10/100 Ethernet x 1 - TAA Compliant |
| Device Type | Network adapter |
| Form Factor | Plug-in card - low profile |
| Interface (Bus) Type | PCI Express x1 |
| PCI Specification Revision | PCIe 1.1 |
| Ports | 10/100 Ethernet x 1 |
| Dimensions (WxDxH) | 3 in x 2.7 in |
| Weight | 1.76 oz |
| Cabling Type | Ethernet 100Base-FX |
| Data Link Protocol | 100Mb LAN |
| Max Transfer Distance | 1.2 miles |
| Data Transfer Rate | 100 Mbps |
| Capacity | Jumbo frame size: 9.6 KB |
| Network / Transport Protocol | IPv6 |
| Compliant Standards | IEEE 802.1x, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3AS, IEEE 802.2, IEEE 802.3ac, IEEE 802.3u, IEEE 802.3x |
| Power | 3.3 V |
| System Requirements | Microsoft Windows 10 / 11, Microsoft Windows Server 2019, Microsoft Windows Server 2022, Linux |
| TAA Compliant | Yes |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | Network adapter |
| Form Factor | Plug-in card - low profile |
| Interface (Bus) Type | PCI Express x1 |
| PCI Specification Revision | PCIe 1.1 |
| Expansion / Connectivity | |
| Interfaces | 1 x 100Base-FX - LC multi-mode - x 2 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Included Accessories | Low-profile bracket, standard bracket |
| Compliant Standards | ACPI 2.0, RoHS, UL, FCC, EN55022 Class B, TUV, EN55024, C-Tick, VCCI |
| TAA Compliant | Yes |
| Networking | |
| Ports | 10/100 Ethernet x 1 |
| Connectivity Technology | Wired |
| Cabling Type | Ethernet 100Base-FX |
| Data Link Protocol | Fast Ethernet |
| Data Transfer Rate | 100 Mbps |
| Max Transfer Distance | 1.2 miles |
| Capacity | Jumbo frame size: 9.6 KB |
| Network / Transport Protocol | IPv6 |
| Remote Management Protocol | SNMP, WMI |
| Status Indicators | Link OK, link/activity |
| Features | Flow control, PXE 2.1 support, remote reboot, WOL, TCP/IP checksum offload, AVB, RSS, MSI-X, MSI, IPv6 support, ACPI 2.0 support, half duplex mode, full duplex mode, EMI protection |
| Compliant Standards | IEEE 802.1x, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3AS, IEEE 802.2, IEEE 802.3ac, IEEE 802.3u, IEEE 802.3x |
| Power | |
| Voltage Required | 3.3 V |
| Software / System Requirements | |
| OS Required | Microsoft Windows 10 / 11, Microsoft Windows Server 2019, Microsoft Windows Server 2022, Linux |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Dimensions & Weight | |
| Depth | 3 in |
| Height | 2.7 in |
| Weight | 1.76 oz |
