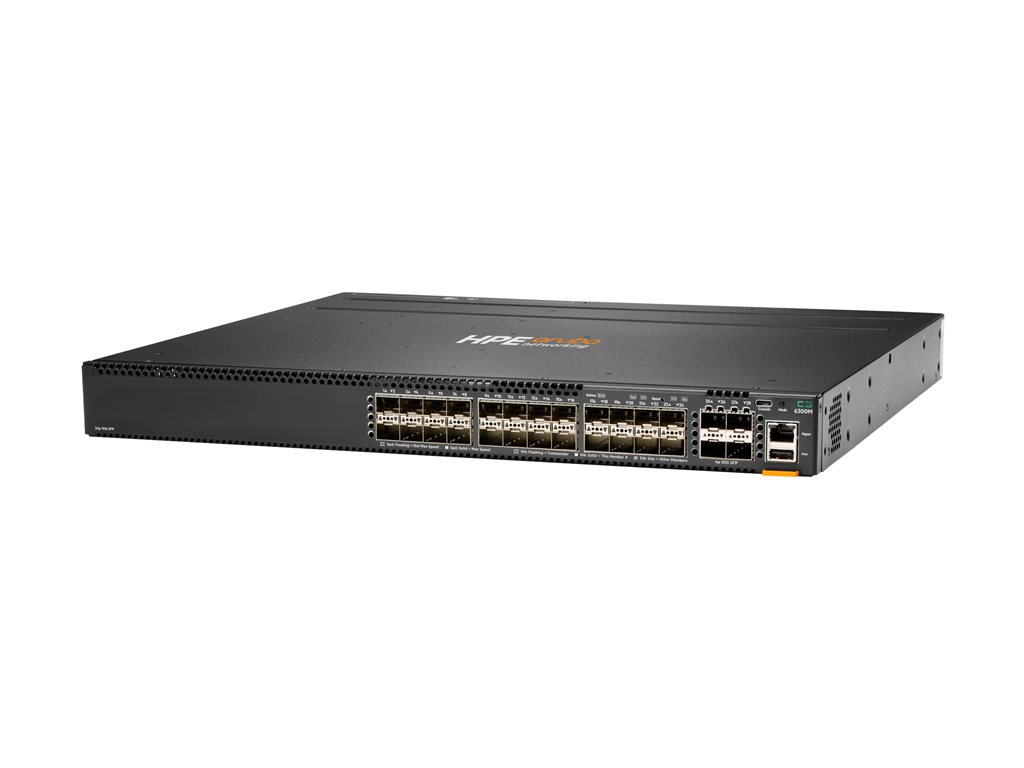

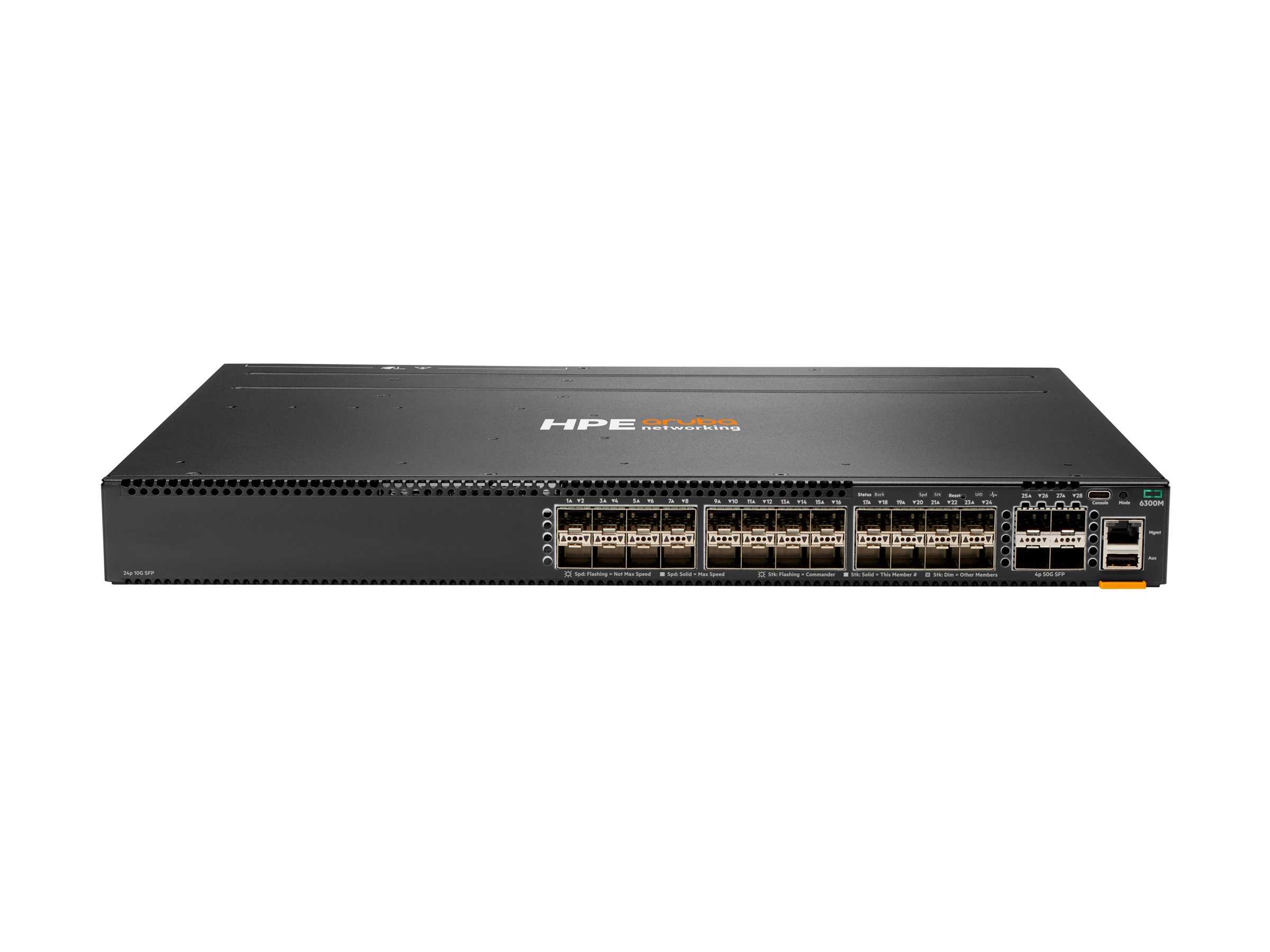

Switch - L3 - managed - 24 x 1 Gigabit / 10 Gigabit SFP+ + 4 x 50 Gigabit Ethernet SFP56 - front to back airflow - rack-mountable - BTO
| Main Specifications | |
|---|---|
| Product Description | HPE Aruba Networking CX 6300M 24p SFP+ 1G/10G 4p SFP56 50G - switch - 24 ports - managed - rack-mountable |
| Device Type | Switch - 24 ports - L3 - managed - stackable |
| Enclosure Type | Front to back airflow rack-mountable 1U |
| Subtype | 10 Gigabit Ethernet |
| Ports | 24 x 1 Gigabit / 10 Gigabit SFP+ + 4 x 50 Gigabit Ethernet SFP56 |
| Performance | Switching capacity: 880 Gbps ¦ Throughput: 654 Mpps ¦ Latency (1 Gbps): 1.99 ?s ¦ Latency (10 Gbps): 1.49 ?s ¦ Latency (25 Gbps): 2.85 ?s ¦ Latency (50 Gbps): 2.82 ?s |
| Jumbo Frame Support | 9198 bytes |
| Routing Protocol | BGP, VXLAN, VRF, OSPF, OSPFv2, IGMP, PIM-SM, BGP-4, ECMP, MP-BGP |
| Remote Management Protocol | SNMP, SNMP 2c, SNMP 3, RMON, CLI |
| Features | VSF, EVPN, UTM, ERPS, QoS, PTP, Rapid PVST+, ToR |
| Compliant Standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3ad (LACP), IEEE 802.1s, IEEE 802.1D, IEEE 802.1w, IEEE 802.1ab (LLDP), IEEE 802.1Q, IEEE 802.1v, IEEE 802.1ak, IEEE 802.1AX, IEEE 802.1p, IEEE 802.1t, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3x, IEEE 802.3z |
| Power | AC 100-240 V |
| Power Redundancy | Optional |
| Dimensions (WxDxH) | 17.4 in x 15.2 in x 1.7 in |
| Localization | English / Europe |
| Pricing Type | BTO |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | Switch - 24 ports - L3 - managed - stackable |
| Enclosure Type | Front to back airflow rack-mountable 1U |
| Subtype | 10 Gigabit Ethernet |
| Ports | 24 x 1 Gigabit / 10 Gigabit SFP+ + 4 x 50 Gigabit Ethernet SFP56 |
| Performance | Switching capacity: 880 Gbps ¦ Throughput: 654 Mpps ¦ Latency (1 Gbps): 1.99 ?s ¦ Latency (10 Gbps): 1.49 ?s ¦ Latency (25 Gbps): 2.85 ?s ¦ Latency (50 Gbps): 2.82 ?s |
| Jumbo Frame Support | 9198 bytes |
| Max Units In A Stack | 10 |
| Routing Protocol | BGP, VXLAN, VRF, OSPF, OSPFv2, IGMP, PIM-SM, BGP-4, ECMP, MP-BGP |
| Remote Management Protocol | SNMP, SNMP 2c, SNMP 3, RMON, CLI |
| Authentication Method | RADIUS, TACACS+, Secure Shell (SSH), Secure Shell v.2 (SSH2) |
| Features | VSF, EVPN, UTM, ERPS, QoS, PTP, Rapid PVST+, ToR |
| Compliant Standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3ad (LACP), IEEE 802.1s, IEEE 802.1D, IEEE 802.1w, IEEE 802.1ab (LLDP), IEEE 802.1Q, IEEE 802.1v, IEEE 802.1ak, IEEE 802.1AX, IEEE 802.1p, IEEE 802.1t, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3x, IEEE 802.3z |
| Processor | 1 x ARM Cortex-A72: 1.8 GHz |
| RAM | 8 GB DDR4 SDRAM |
| Flash Memory | 32 GB |
| Expansion / Connectivity | |
| Interfaces | 24 x 1/10Gbit LAN SFP+ ¦ 4 x 50Gbit LAN SFP56 uplink/stacking ¦ 1 x USB-C console ¦ 1 x management RJ-45 out-of-band network management ¦ 1 x USB Type A AUX |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Included Accessories | 2 port-to-power fan trays |
| Pricing Type | BTO |
| Localization | English / Europe |
| Power | |
| Power Device | Internal power supply - hot-plug |
| Installed Qty | 1 |
| Max Supported Qty | 2 |
| Power Redundancy | Optional |
| Power Redundancy Scheme | N+1 (with optional power supply), N+N (with optional power supply) |
| Power Provided | 250 Watt |
| Voltage Required | AC 100-240 V |
| Features | Port-to-power airflow |
| Dimensions & Weight | |
| Width | 17.4 in |
| Depth | 15.2 in |
| Height | 1.7 in |
