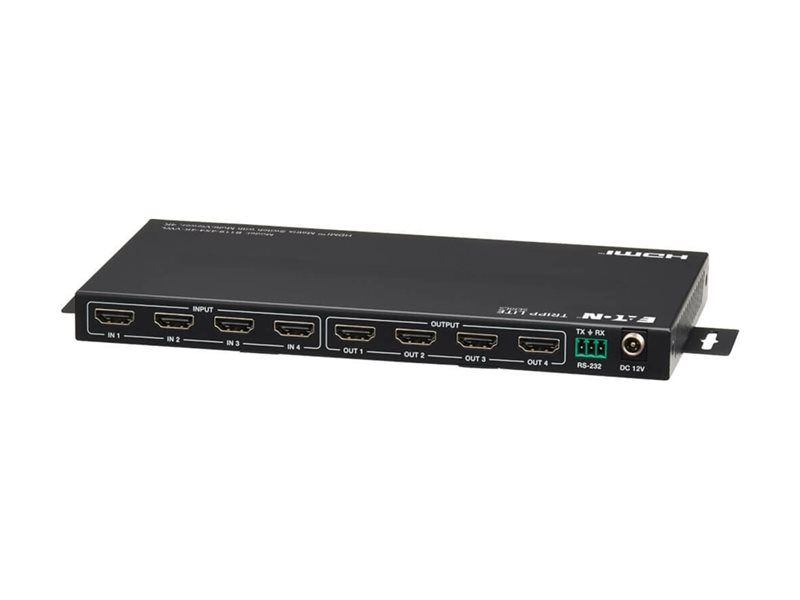

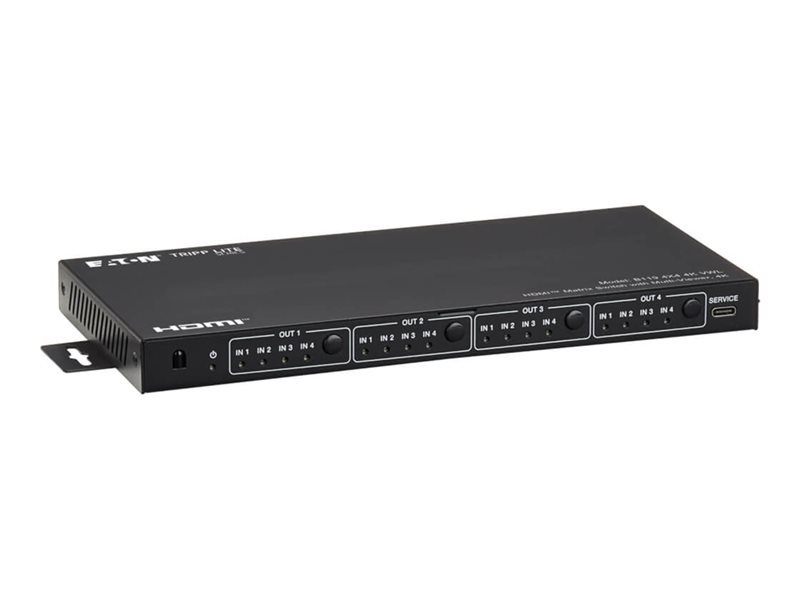

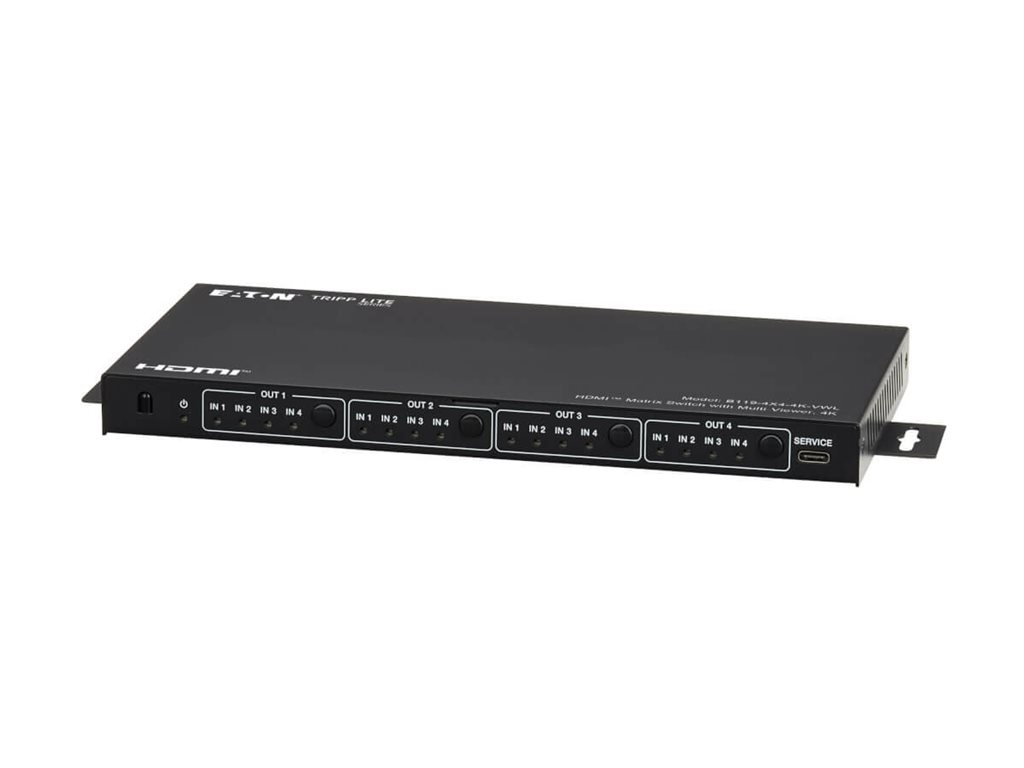

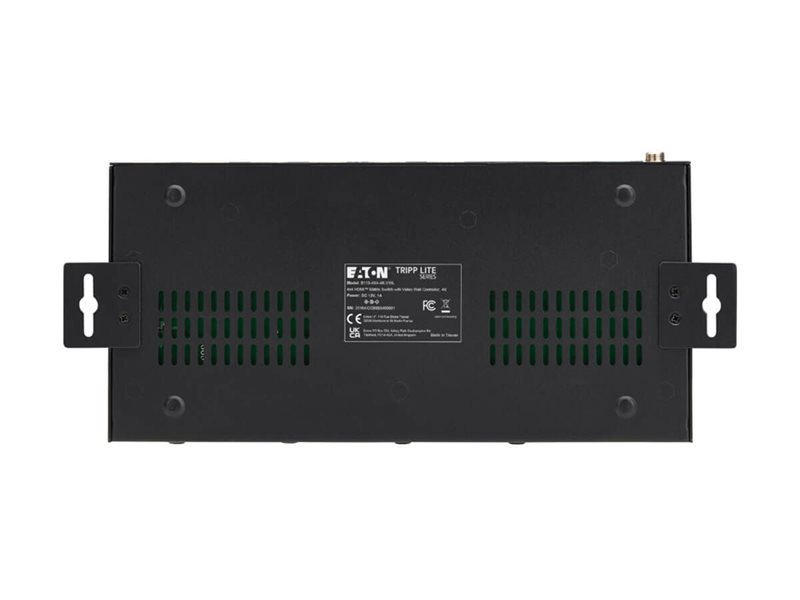

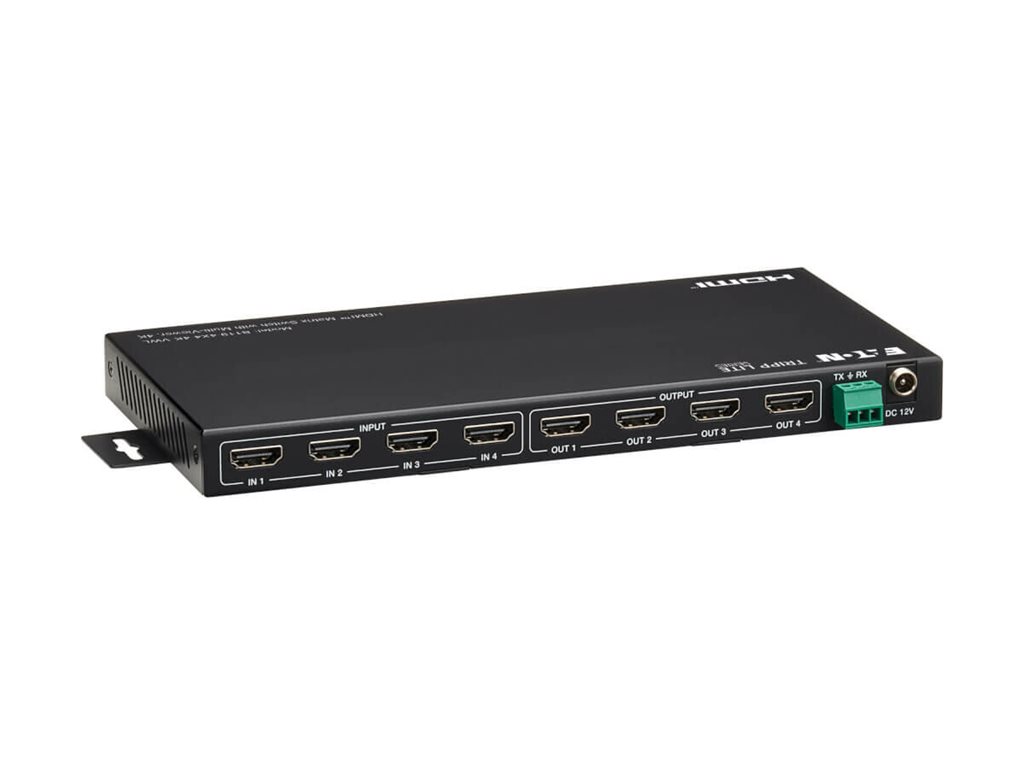

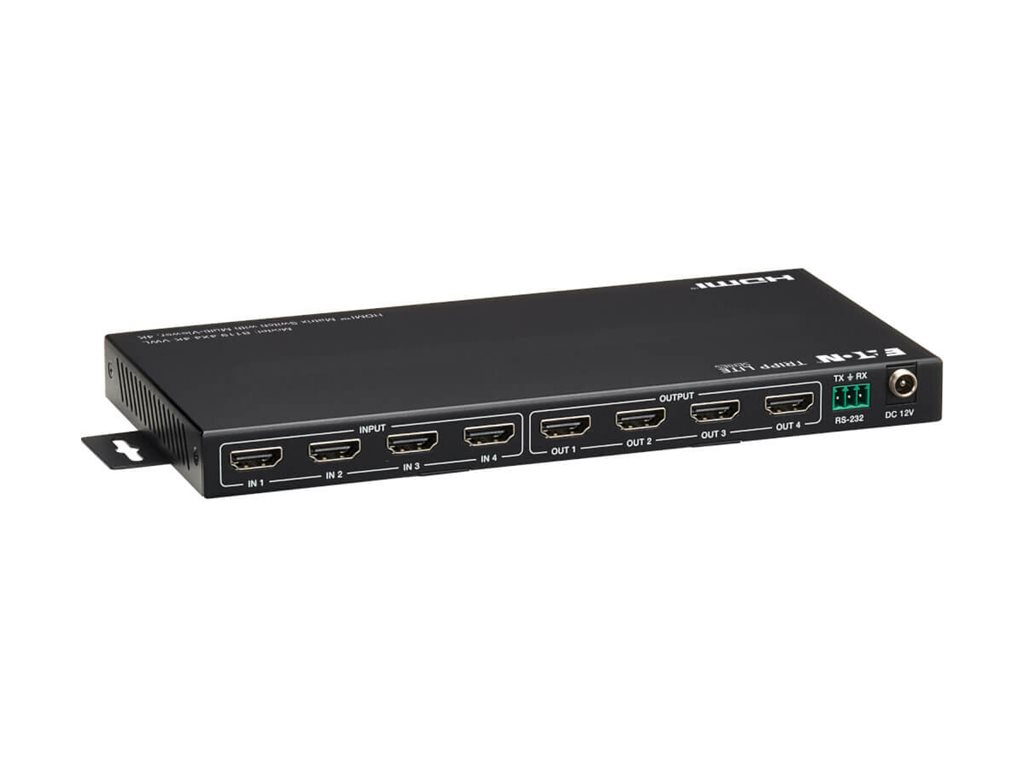

Video switch - matrix - 4 x 4 - 8 x HDMI - surface-mountable, wall-mountable - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | Eaton Tripp Lite series - video switch - matrix - 4 x 4 - TAA Compliant |
| Device Type | Video switch - 4 x 4 |
| Subtype | HDMI |
| Ports | 8 x HDMI |
| Features | Video wall support, 4K30Hz support, metal housing, LPCM support, Dolby Digital support, Dolby Digital Plus support, DTS support, 4:4:4 chroma subsampling support, 4:2:0 chroma subsampling support, 4:2:2 chroma subsampling support, 10.2 Gbps bandwidth, LPCM 2.0 support, multi resolution support, 36-bit Deep Color support, Pushbutton/Hotkey switching, 720p resolution support, 1080p resolution support, seamless switching |
| Compliant Standards | HDCP 1.4 |
| Power | AC 100-240 V (50/60 Hz) 0.4 A |
| Dimensions (WxDxH) | 4.1 in x 0.7 in x 8.7 in |
| Weight | 17.64 oz |
| Color | Black |
| Localization | Australia, Europe, North America, United Kingdom |
| TAA Compliant | Yes |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Video switch - 4 x 4 |
| Enclosure Type | Surface-mountable, wall-mountable |
| Subtype | HDMI |
| Ports | 8 x HDMI |
| Max Resolution | 4096 x 2160 @ 30 Hz |
| Features | Video wall support, 4K30Hz support, metal housing, LPCM support, Dolby Digital support, Dolby Digital Plus support, DTS support, 4:4:4 chroma subsampling support, 4:2:0 chroma subsampling support, 4:2:2 chroma subsampling support, 10.2 Gbps bandwidth, LPCM 2.0 support, multi resolution support, 36-bit Deep Color support, Pushbutton/Hotkey switching, 720p resolution support, 1080p resolution support, seamless switching |
| Compliant Standards | HDCP 1.4 |
| Status Indicators | Power, signal |
| Expansion / Connectivity | |
| Interfaces | 4 x HDMI input female ¦ 4 x HDMI output female ¦ 1 x USB-C firmware update ¦ 1 x RS232 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Color | Black |
| Included Accessories | Mounting kit, international power plugs |
| Cables Included | 1 x RS-232 adapter |
| Compliant Standards | Plug and Play, EDID compatible, FCC, UL, cUL, RoHS, UKCA, WEEE |
| TAA Compliant | Yes |
| Localization | Australia, Europe, North America, United Kingdom |
| Power | |
| Power Device | External power adapter |
| Power Provided | 12 V - 1 A |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Electric Current Required | 0.4 A |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 20 - 80% RH (non-condensing) |
| Min Storage Temperature | -4 °F |
| Max Storage Temperature | 140 °F |
| Humidity Range Storage | 10 - 90% RH (non-condensing) |
| Dimensions & Weight | |
| Width | 4.1 in |
| Depth | 0.7 in |
| Height | 8.7 in |
| Weight | 17.64 oz |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 11.9 in |
| Shipping Depth | 9.3 in |
| Shipping Height | 2.4 in |
| Shipping Weight | 34.56 oz |
