Motherboard - micro ATX no CPU - LGA1851 Socket - Z890 Chipset - USB 3.2 Gen 1 - 2 x Gigabit LAN - onboard graphics
| Main Specifications | |
|---|---|

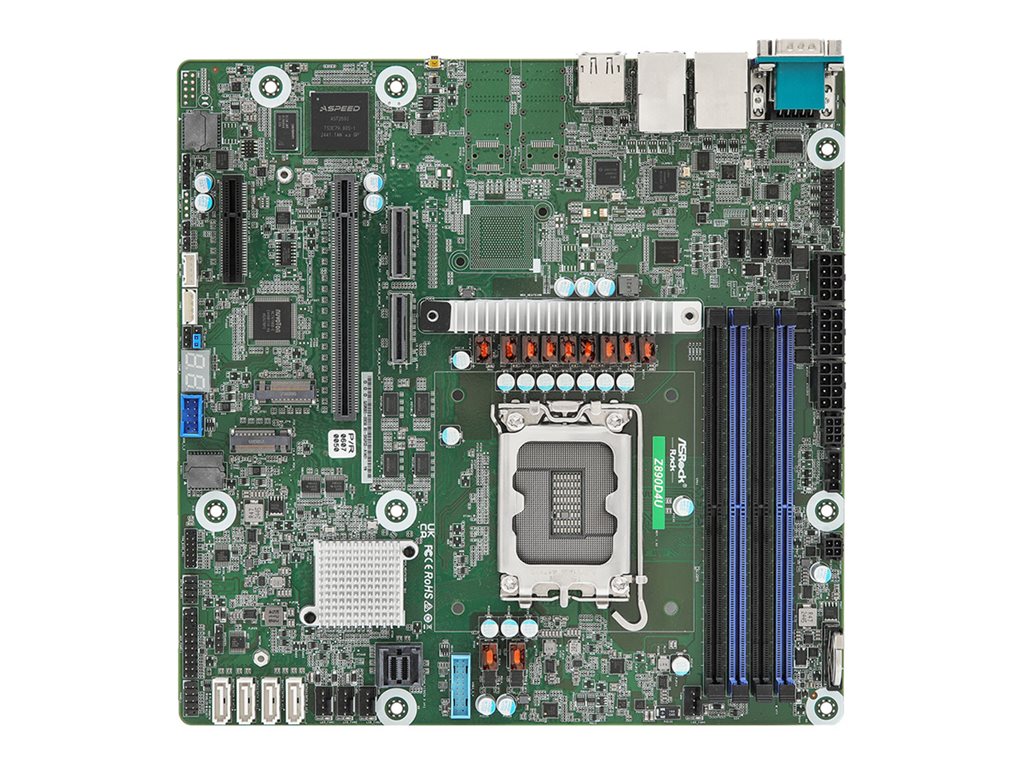

| Product Description | ASRock Rack Z890D4U - motherboard - micro ATX no CPU - LGA1851 Socket - Z890 |
| Product Type | Motherboard - micro ATX |
| Processor | No CPU |
| Chipset Type | Intel Z890 |
| Processor Socket | 1 x LGA1851 Socket |
| Compatible Processors | (supports Intel Core Ultra processors (Series 2)) |
| RAM Supported | 4 DIMM slots - DDR5, on-die ECC, unbuffered |
| Storage Ports | 4 x SATA-600 (RAID), 2 x M.2 |
| USB / FireWire Ports | 2 x USB 3.2 Gen 1 + (2 x USB 3.2 Gen 1 + 2 x USB 2.0 via headers) |
| Graphics | ASPEED AST2600 |
| LAN | 2 x Gigabit Ethernet |
| General | |
| Product Type | Motherboard - micro ATX |
| Processor | No CPU |
| Chipset Type | Intel Z890 |
| Processor Socket | LGA1851 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | (supports Intel Core Ultra processors (Series 2)) |
| Expansion / Connectivity | |
| Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin (1.1 V) ¦ 1 x PCIe 5.0 x16 ¦ 1 x PCIe 5.0 x4 ¦ 2 x PCIe 4.0 x4 (2280 M.2 slot) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 2 x M.2 |
| Interfaces | 1 x VGA ¦ 2 x USB 3.2 Gen 1 ¦ 2 x LAN (Gigabit Ethernet) ¦ 1 x HDMI ¦ 1 x management ¦ 1 x DisplayPort ¦ 1 x serial |
| Internal Interfaces | 2 x USB 2.0 - Type A ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x speaker - header ¦ 1 x SGPIO - header |
| Power Connectors | DC-in power connector, 4-pin ATX12V connector, 3 x 8-pin ATX12V connectors |
| Miscellaneous | |
| Width | 9.6 in |
| Depth | 9.6 in |
| Features | |
| BIOS Type | AMI |
| BIOS Features | ACPI 6.4 support, SMBIOS 2.3 support |
| Hardware Monitoring | CPU core temperature, chassis fan tachometer, fan control |
| Hardware Features | CPU Quiet Fan, ASRock Instant Flash |
| LAN | |
| Network Controller | Intel I210 |
| Network Interfaces | 2 x Gigabit Ethernet |
| Graphics | |
| Graphics Controller | ASPEED AST2600 |
| Supported RAM | |
| Technology | DDR5 |
| Bus Clock | 6400 MT/s, 5600 MT/s, 4800 MT/s, 4400 MT/s |
| Supported RAM Integrity Check | On-die ECC |
| Registered or Buffered | Unbuffered |
