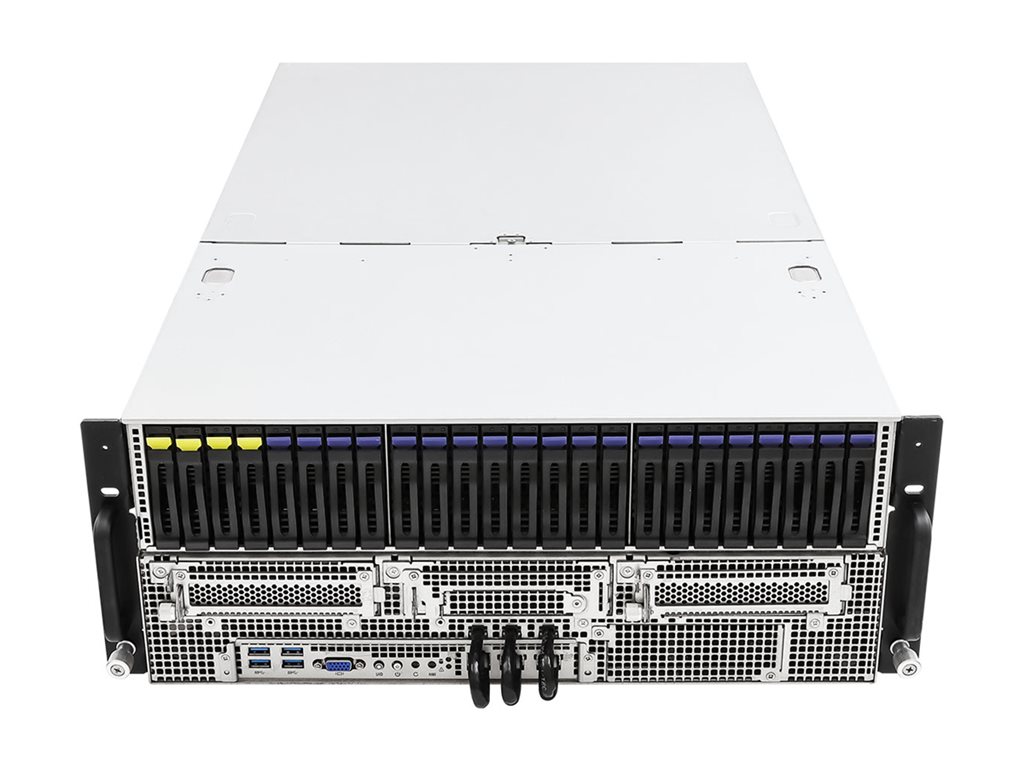

Server - rack-mountable 4U - 2-way - no CPU - RAM 0 GB - SATA/SAS/NVMe - hot-swap 2.5" bay(s) - no HDD - AST2600 - Gigabit Ethernet - no OS - monitor: none
| Main Specifications | |
|---|---|
| Product Description | ASRock Rack 4U8G-TURIN2 - rack-mountable no CPU - 0 GB - no HDD |
| Type | Server - rack-mountable |
| Height (Rack Units) | 4U |
| Server Scalability | 2-way |
| Processor | No CPU |
| Processor Socket | Socket SP5 |
| RAM | 0 GB (installed) / 256 GB (max) - DDR5 SDRAM |
| Storage Controller | SATA (SATA 6Gb/s); NVMe PCIe |
| Server Storage Bays | Hot-swap 2.5" |
| Hard Drive | No HDD |
| Optical Storage | No optical drive |
| Graphics Controller | ASPEED AST2600 |
| Video Memory | 512 MB DDR4 SDRAM |
| Networking | 1GbE |
| Power | (47 - 63 Hz) |
| Power Redundancy | Yes |
| OS Provided | No operating system |
| Dimensions (WxDxH) | 17.2 in x 30.9 in x 6.9 in |
| General | |
| Type | Server |
| Product Form Factor | Rack-mountable - 4U |
| Built-in Devices | 5 x 80 mm fans |
| Server Scalability | 2-way |
| Hot-Swap Bays Qty | 24 |
| Expansion / Connectivity | |
| Slots | 8 (total) / 8 (free) x PCIe 5.0 x16 - full-length, full-height ¦ 1 (total) / 1 (free) x PCIe 5.0 x8 - half-length, full-height ¦ 1 (total) / 1 (free) x PCIe 5.0 x8 / Open Compute Project mezzanine (OCP) 3.0 |
| Interfaces | 2 x USB 3.2 Gen 1 ¦ 1 x VGA ¦ 2 x LAN - RJ-45 ¦ 1 x management - RJ-45 |
| Miscellaneous | |
| Compliant Standards | SMBIOS 3.5.0, Plug and Play, ACPI 6.4 |
| RAM | |
| Installed Size | 0 GB (installed) / 256 GB (max) |
| Technology | DDR5 SDRAM |
| Form Factor | DIMM 288-pin |
| Slots | 24 (total) / 24 (empty) |
| Features | Registered, 3DS registered |
| Networking | |
| Ethernet Ports | 2 x Gigabit Ethernet |
| Ethernet Controller | 2 x Intel I350 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Remote Management Protocol | IPMI 2.0 |
| Remote Management Controller | Aspeed AST2600 |
| Power | |
| Device Type | Power supply |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 3+1 |
| Voltage Required | AC 200-240 V (47 - 63 Hz) |
| Power Provided | 2700 watt |
| 80 PLUS Certification | 80 PLUS Titanium |
| Environmental Parameters | |
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 20 - 90% (non-condensing) |
| Storage Controller | |
| Type | 1 x SATA |
| Controller Interface Type | SATA 6Gb/s |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | ASPEED AST2600 |
| Video Memory | 512 MB DDR4 SDRAM |
| Video Interfaces | VGA |
| Operating System / Software | |
| OS Provided | No operating system |
| Storage Controller (2nd) | |
| Type | NVMe - PCIe |
| Hard Drive | |
| Type | No HDD |
| Dimensions & Weight | |
| Width | 17.2 in |
| Depth | 30.9 in |
| Height | 6.9 in |
| Processor / Chipset | |
| CPU | No CPU |
| Max CPU Qty | 2 |
| CPU Upgradability | Upgradable |
| CPU Socket | Socket SP5 |
| Motherboard Name | TURIN2D24G-2L+/500W |
