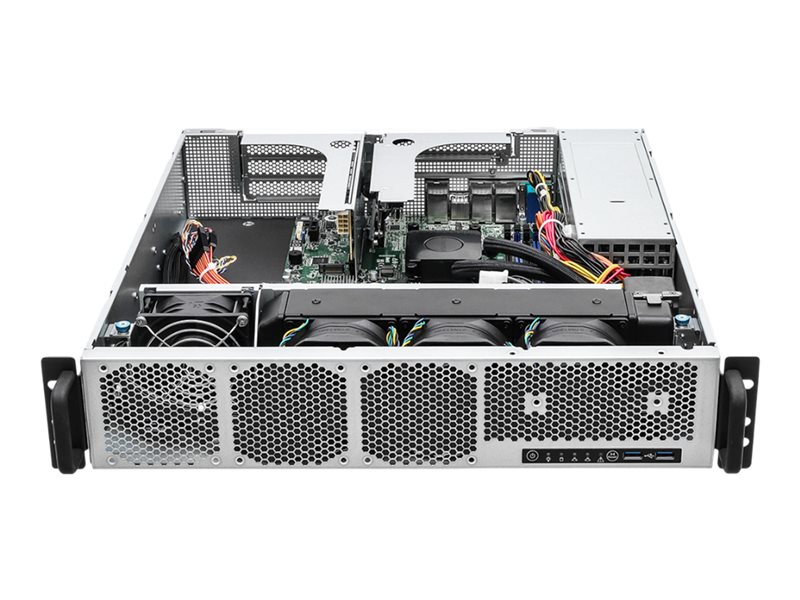

Server - rack-mountable 2U - 1-way - no CPU - RAM 0 GB - no HDD - AST2600 - Gigabit Ethernet - no OS - monitor: none
| Main Specifications | |
|---|---|
| Product Description | ASRock Rack 2U1G-B650/AQUA - rack-mountable no CPU - 0 GB - no HDD |
| Type | Server - rack-mountable |
| Height (Rack Units) | 2U |
| Server Scalability | 1-way |
| Processor | No CPU |
| Processor Socket | LGA1718 Socket |
| RAM | 0 GB (installed) / 48 GB (max) - DDR5 SDRAM |
| Storage Controller | SATA (SATA 6Gb/s) |
| Hard Drive | No HDD |
| Optical Storage | No optical drive |
| Graphics Controller | ASPEED AST2600 |
| Networking | 1GbE |
| Power | (50/60 Hz) |
| Power Redundancy | Yes |
| OS Provided | No operating system |
| Dimensions (WxDxH) | 18.8 in x 16.9 in x 3.5 in |
| General | |
| Type | Server |
| Product Form Factor | Rack-mountable - 2U |
| Server Scalability | 1-way |
| Expansion / Connectivity | |
| Bays | 2 (total) / 2 (free) x internal 2.5" |
| Slots | 1 (total) / 1 (free) x PCIe 5.0 x16 - full-length, full-height ¦ 1 (total) / 1 (free) x PCIe 4.0 x4 - half-length, full-height ¦ 2 (total) / 2 (free) x M.2 Card - 2242/2280 (PCIe 5.0 x4 mode) |
| Interfaces | 6 x USB 3.2 Gen 1 (2 front, 4 rear) ¦ 1 x VGA (1 rear) ¦ 1 x HDMI (1 rear) ¦ 1 x DisplayPort (1 rear) ¦ 1 x serial (1 rear) ¦ 2 x LAN (Gigabit Ethernet) - RJ-45 (2 rear) ¦ 1 x management - RJ-45 (1 rear) |
| Miscellaneous | |
| Included Accessories | Rack rail kit, 2 x 2.5" HDD tray, 2 x power cord, 2 x M3 screw, 2 cable ties, AMD retention bracket, 4 mounting screws |
| Compliant Standards | ACPI 6.4, Plug and Play |
| RAM | |
| Installed Size | 0 GB (installed) / 48 GB (max) |
| Technology | DDR5 SDRAM |
| Form Factor | DIMM 288-pin |
| Slots | 4 (total) / 4 (empty) |
| Features | Unbuffered, ECC |
| Networking | |
| Ethernet Ports | 2 x Gigabit Ethernet |
| Ethernet Controller | Intel I210 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Remote Management Controller | Aspeed AST2600 |
| Power | |
| Device Type | Power supply |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Voltage Required | AC 200-240 V (50/60 Hz) |
| Power Provided | 1200 watt |
| 80 PLUS Certification | 80 PLUS Platinum |
| Environmental Parameters | |
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 20 - 90% (non-condensing) |
| Storage Controller | |
| Type | SATA |
| Controller Interface Type | SATA 6Gb/s |
| Channel Qty | 2 |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | ASPEED AST2600 |
| Video Interfaces | VGA, HDMI, DisplayPort |
| Operating System / Software | |
| OS Provided | No operating system |
| Hard Drive | |
| Type | No HDD |
| Dimensions & Weight | |
| Width | 18.8 in |
| Depth | 16.9 in |
| Height | 3.5 in |
| Processor / Chipset | |
| CPU | No CPU |
| Max CPU Qty | 1 |
| CPU Upgradability | Upgradable |
| CPU Socket | LGA1718 Socket |
| Chipset Type | AMD B650E |
| Motherboard Name | ASRock Rack B650D4U/2U1G |
