Document camera - box - B&W - 2048 x 1536 - GbE - H.265, H.264, MJPEG - DC 24 V
| Main Specifications | |
|---|---|

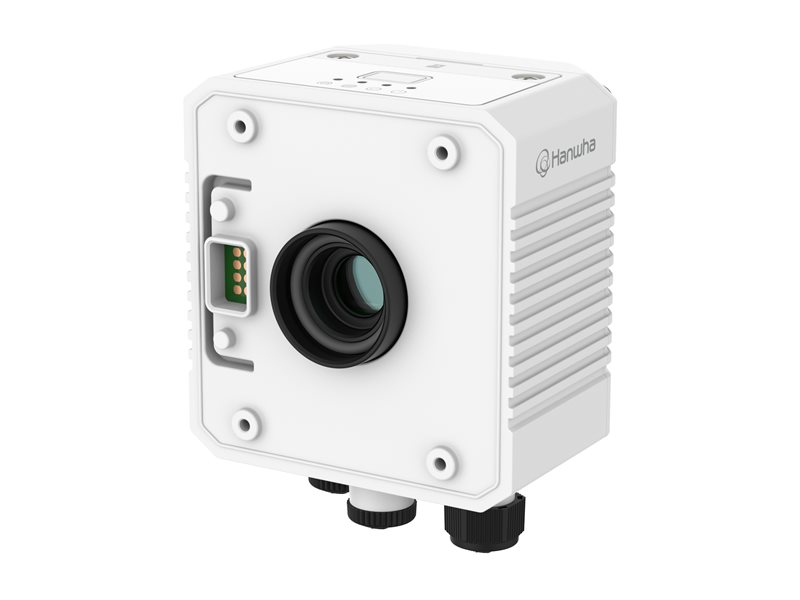

| Product Description | Hanwha Vision WiseNet T TNS-7000M - document camera - box |
| Device Type | Document camera - fixed - box |
| Dimensions (WxDxH) | 2.9 in x 2.3 in x 2.9 in |
| Weight | 14.81 oz |
| Color | White, black, RAL 9003 |
| Connectivity Technology | Wired |
| Camera | Black and white |
| Max Resolution | 2048 x 1536 |
| Frame Rate (max) | 50 frames per second |
| Optical Sensor Type | CMOS - 1/3" |
| Interfaces | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Voltage | DC 24 V |
| Features | Modular, HDR, vertical flip and mirror, barcode scan, Variable Bitrate (VBR), Constant Bitrate (CBR), Unicast Streaming, Multicast Streaming, ONVIF (Profile M) support, microSD/SDHC/SDXC Memory Card slot, aluminum enclosure, replaceable lens |
| Environmental Parameters (operating) | -40 °F - 131 °F; 0 - 95% RH (non-condensing) relative humidity |
| General | |
| Device Type | Document camera |
| Form Factor | Box |
| Connectivity Technology | Wired |
| Width | 2.9 in |
| Depth | 2.3 in |
| Height | 2.9 in |
| Weight | 14.81 oz |
| Expansion / Connectivity | |

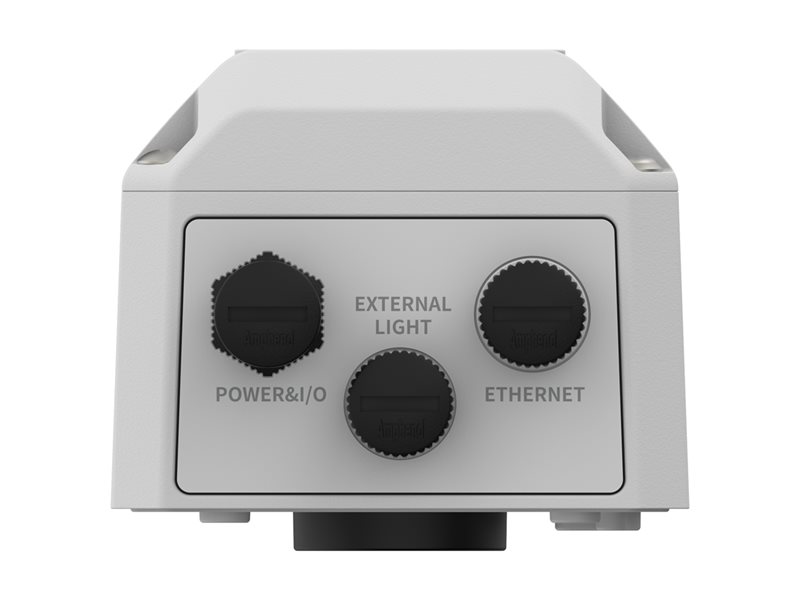

| Ports | LAN - M12 |

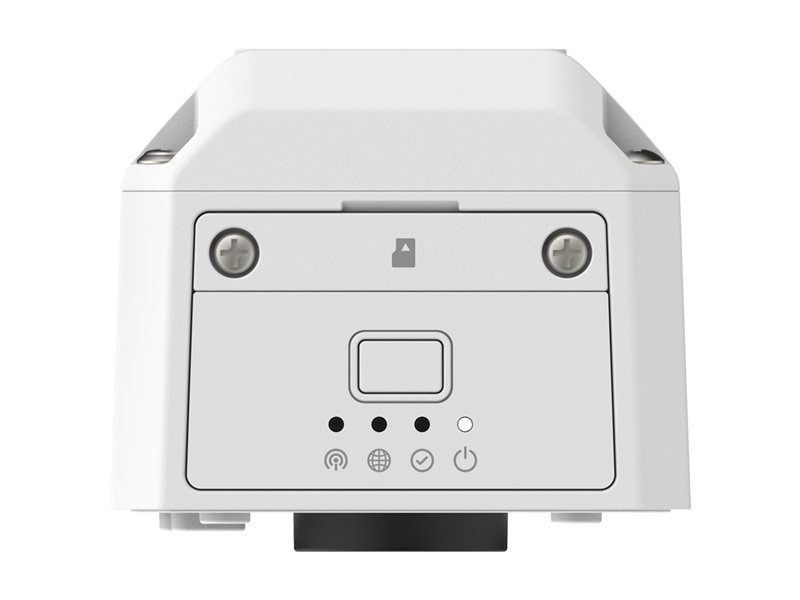

| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| Miscellaneous | |
| Compliant Standards | FCC 47 CFR Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, KS C 9832 Class A, KS C 9835, UL 62368-1, CAN/CSA-C22.2 No. 62368-1, IEC 60529 IP66, IEC 60529 IP67, IEC 62262 IK10, IEC 60068-2-6, IEC 60068-2-27 |
| Color | White, black, RAL 9003 |
| Power | |
| Power Requirements | DC 24 V |
| Power Device | 6.7 watt |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 131 °F |
| Relative Humidity (operating) | 0 - 95% RH (non-condensing) |
| Camera | |
| Type | Black and white - fixed |
| Digital Video Format | H.265, H.264, MJPEG |
| Max Digital Video Resolution | 2048 x 1536 |
| Exposure Range | 1/30 sec - 0.00015 sec |
| Digital Video Capture Resolution | 2048 x 1536 |
| Frame Rate (max) | 50 frames per second |
| Features | Modular, HDR, vertical flip and mirror, barcode scan, Variable Bitrate (VBR), Constant Bitrate (CBR), Unicast Streaming, Multicast Streaming, ONVIF (Profile M) support, microSD/SDHC/SDXC Memory Card slot, aluminum enclosure, replaceable lens |
| Image Sensor | |
| Type | CMOS 1/3" |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Network Protocols | IPv4, IPv6, TCP/IP, UDP/IP, RTCP, RTSP, NTP, HTTP, HTTPS, SSL, DHCP, FTP, SMTP, ICMP, IGMP, ARP, DNS, DDNS, QOS, UPnP, Bonjour, SRTP, MQTT, RTP, UDP, TCP, TLS, SNMP 1, SNMP 2c, SNMP 3, SUNAPI |
| Alarm Inputs Qty | 2 |
| Alarm Outputs Qty | 2 |
