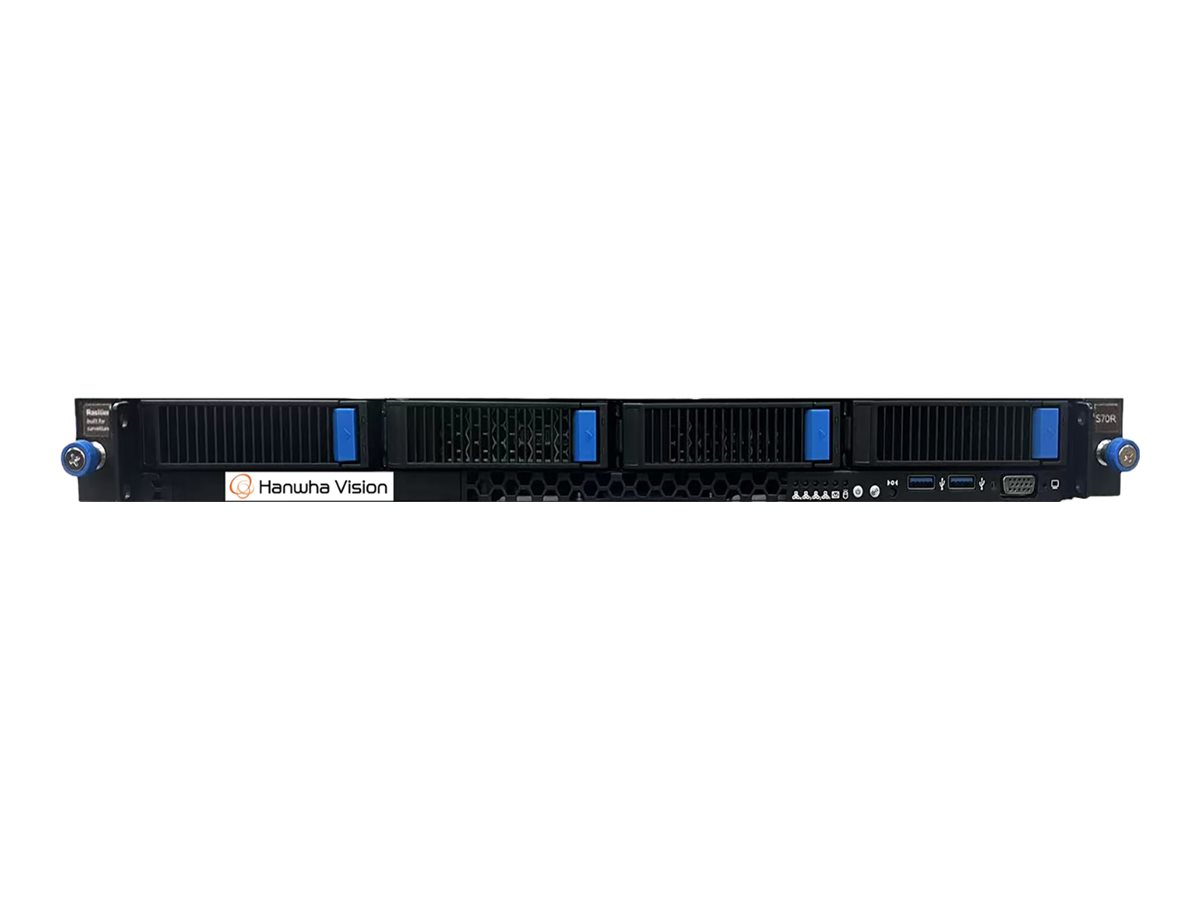

NVR 64 TB - networked - 1U - rack-mountable
| Main Specifications | |
|---|---|
| Product Description | Hanwha Vision WiseNet WAVE WRR-P-E201S2 - standalone NVR |
| Device Type | NVR - networked - rack-mountable - 1U |
| Hard Drive | 64 TB |
| Hard Drive(s) Supported | Quantity: 4 - total capacity: 80 TB |
| Voltage | 100 - 240 V |
| Dimensions (WxDxH) - without HDD | 19.6 in x 1.7 in x 17.3 in |
| Weight | 50.71 lbs |
| General | |
| Device Type | NVR - rack-mountable - 1U |
| Package Content | NVR, keyboard, mouse, slide rails, Mini DisplayPort to HDMI adapter, cable management arm |
| OS Provided | Microsoft Windows Server 2022 Standard |
| Software Included (Y) | 4 Wisenet WAVE Professional licenses |
| Compliant Standards | EAC, cULus, NDAA, FCC, 80Plus compliant, BSMI, FCC Class A certified, UL/cUL |
| Color | Black |
| Networking | |
| Network Interfaces | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Features | Remote management (IPMI) |
| Power | |
| Voltage | 100 - 240 V |
| Redundant Power Supply | Included |
| Environmental Parameters | |
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 10 - 80% RH |
| Hard Drive | |
| Quantity Supported | 4 |
| Capacity | 64 TB |
| Removable | Yes |
| Supported Max Total Capacity | 80 TB |
| Connections | |
| Video Output Ports | HDMI x 1, VGA x 1, Mini DisplayPort x 3 |
| Network Port | 10/100/1000Base-T x 2 |
| Other Ports | USB 3.2 x 4, serial |
| Dimensions & Weight | |
| Width | 19.6 in |
| Depth | 1.7 in |
| Height | 17.3 in |
| Weight | 50.71 lbs |
| Comments | Without HDD |
| Security DVR | |
| Networked | Yes |
| Features | RAID 5 support, recording data rate up to 470 Mbps, NVIDIA Quadro T400, 2 x 480GB SSD OS system drive (RAID 1), RAID 0 support, RAID 1 support, RAID 6 support, RAID 10 support, metal housing, 80 Plus Platinum power device, hot-swappable HDD trays |
| Video Server | |
| CPU | Intel Xeon 6333P |
| RAM | 16 GB |
