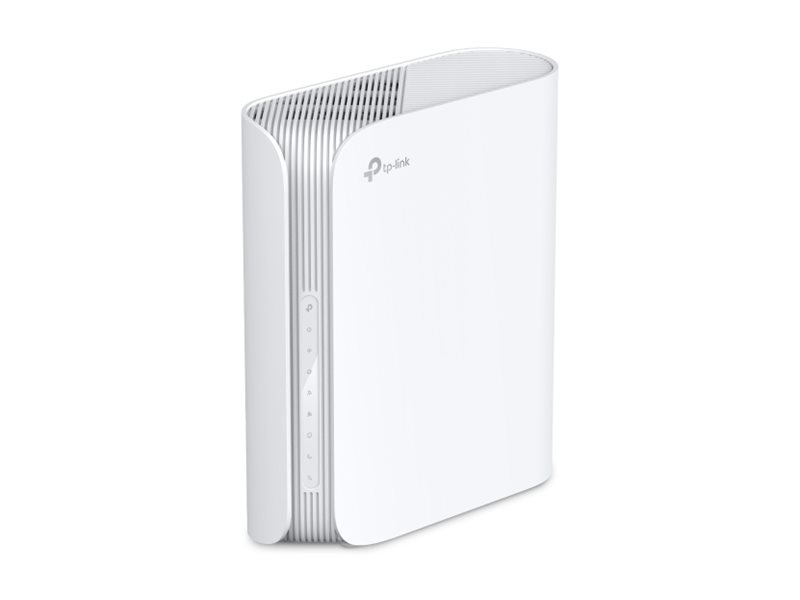

Wireless router - XGS-PON 5-port switch - Wi-Fi 7, XGS-PON, 10GbE Dual Band
| Main Specifications | |
|---|---|
| Product Description | TP-Link Aginet XGB430v Pro - wireless router - XGS-PON - Wi-Fi 7 - desktop |
| Device Type | Wireless router - XGS-PON terminal - 5-port switch (integrated) |
| Enclosure Type | Desktop |
| WAN Ports Qty | 1 |
| Data Link Protocol | Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11be (Wi-Fi 7), XGS-PON, 10 Gigabit Ethernet, Fast Ethernet |
| Frequency Band | 2.4 GHz / 5 GHz |
| Data Transfer Rate | 7.2 Gbps |
| Performance | Maximum data rate (5 GHz): 5760 Mbps ¦ Maximum data rate (2.4 GHz): 1376 Mbps ¦ XGS-PON data transfer rate (upstream): 9.953 Gbps ¦ XGS-PON data transfer rate (downstream): 9.953 Gbps ¦ Transmit power (2.4 GHz): 20 dBm ¦ Transmit power (5 GHz): 23 dBm |
| Capacity | Streams: 8 |
| Network / Transport Protocol | PPTP, L2TP, IPSec, OpenVPN, IPv4, IPv6 |
| Routing Protocol | IGMPv3, IGMPv2, IGMP, static IP routing |
| Remote Management Protocol | TAUC, OMCI, TR-069, TR-098, TR-181, TR-111, TR-143 |
| Features | MLO, MU-MIMO technology, beamforming technology, EasyMesh, DynDNS, DHCP server, DHCP client, Address Reservation, DHCP relay, QoS, No-IP DDNS, VPN passthrough, NAT firewall, ACL support, MAC filtering, IP address filtering, URL filtering, IP/MAC binding, DoS protection, SYN Flooding, Ping of Death, zero-wait DFS, Multi-RUs, BSS Coloring, port mapping, static routing, DNS relay, DDNS, IGMPv1/v2/v3 support, parental control, WiFi schedules, Guest Network, band steering, Airtime Fairness, network diagnostics, real-time traffic statistics, reset button, WLAN/WPS button, power button |
| Compliant Standards | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be, IEEE 802.11k, IEEE 802.11v, IEEE 802.11r |
| Dimensions (WxDxH) | 7.4 in x 2.8 in x 8.6 in |
| General | |
| Device Type | Wireless router - 5-port switch (integrated) |
| Enclosure Type | Desktop |
| Connectivity Technology | Wired, wireless |
| Data Link Protocol | Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11be (Wi-Fi 7), XGS-PON, 10 Gigabit Ethernet, Fast Ethernet |
| Frequency Band | 2.4 GHz / 5 GHz |
| Data Transfer Rate | 7.2 Gbps |
| Performance | Maximum data rate (5 GHz): 5760 Mbps ¦ Maximum data rate (2.4 GHz): 1376 Mbps ¦ XGS-PON data transfer rate (upstream): 9.953 Gbps ¦ XGS-PON data transfer rate (downstream): 9.953 Gbps ¦ Transmit power (2.4 GHz): 20 dBm ¦ Transmit power (5 GHz): 23 dBm |
| Capacity | Streams: 8 |
| Network / Transport Protocol | PPTP, L2TP, IPSec, OpenVPN, IPv4, IPv6 |
| Routing Protocol | IGMPv3, IGMPv2, IGMP, static IP routing |
| Remote Management Protocol | TAUC, OMCI, TR-069, TR-098, TR-181, TR-111, TR-143 |
| Encryption Algorithm | WPA3, WPA, WPA2 |
| Authentication Method | Radio Service Set ID (SSID) |
| Wi-Fi Rating | BE7200 |
| Features | MLO, MU-MIMO technology, beamforming technology, EasyMesh, DynDNS, DHCP server, DHCP client, Address Reservation, DHCP relay, QoS, No-IP DDNS, VPN passthrough, NAT firewall, ACL support, MAC filtering, IP address filtering, URL filtering, IP/MAC binding, DoS protection, SYN Flooding, Ping of Death, zero-wait DFS, Multi-RUs, BSS Coloring, port mapping, static routing, DNS relay, DDNS, IGMPv1/v2/v3 support, parental control, WiFi schedules, Guest Network, band steering, Airtime Fairness, network diagnostics, real-time traffic statistics, reset button, WLAN/WPS button, power button |
| Compliant Standards | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be, IEEE 802.11k, IEEE 802.11v, IEEE 802.11r |
| Expansion / Connectivity | |
| Interfaces | WAN / LAN: 1 x 10Gb Ethernet - RJ-45 ¦ LAN: 4 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ 1 x XGS-PON ¦ Phone line: 2 x RJ-11 ¦ USB 3.0: 1 x Type A |
| Miscellaneous | |
| Cables Included | 1 x network cable |
| Power | |
| Power Device | External power adapter |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Communications | |
| Type | XGS-PON terminal |
| Dimensions & Weight | |
| Width | 7.4 in |
| Depth | 2.8 in |
| Height | 8.6 in |
| Antenna | |
| Antenna | Internal |
| Antenna Qty | 6 |
| Line Properties | |
| Line Coding Format | 4096 QAM, OFDMA |
