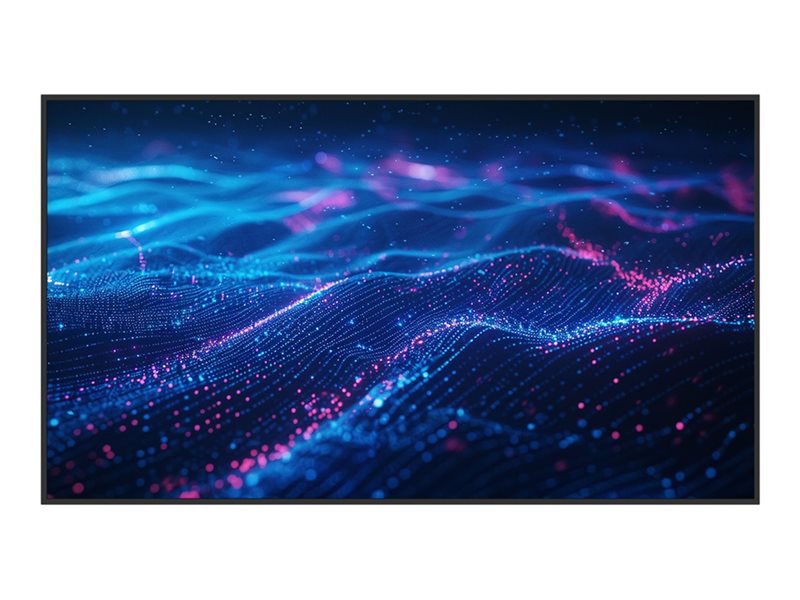

86" Diagonal Class DSX Series LED-backlit LCD display - digital signage - Android - 4K UHD (2160p) 3840 x 2160 - HDR - Direct LED
| Main Specifications | |
|---|---|
| Product Description | Newline DSX-8626 DSX Series - 86" LED-backlit LCD display - 4K - for digital signage |
| Product Type | LED-backlit LCD flat panel display |
| Diagonal Class | 86" |
| Commercial Use | Yes - digital signage |
| Platform | Android |
| Resolution | 3840 x 2160 |
| Display Format | 4K UHD (2160p) |
| Frame Rate & Enhancement Technology | 60 Hz Refresh Rate |
| Video Interface | HDMI |
| HDMI Ports Qty | 2 ports |
| Connectivity | LAN, Wi-Fi, Bluetooth |
| LCD Backlight Technology | Direct LED |
| Image Aspect Ratio | 16:9 |
| TV Tuner | No tuner |
| Commercial Features | Newline Signage Pro, Real-Time Clock (RTC) |
| Picture Enhancements | 93% DCI-P3 color gamut, 85% Color Gamut NTSC |
| Speaker System | 2 speakers |
| Storage Capacity | 32 GB |
| USB | 2 ports |
| Included Accessories | Remote control, 3 power cables (EU/UK/US plugs) |
| Voltage | AC 100-240 V |
| Power Consumption Operational | 360 watt |
| Power Consumption Stand by | 0.5 watt |
| Dimensions (WxDxH) | 76 in x 2.7 in x 43.3 in |
| Weight | 89.95 lbs |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Product Type | LED-backlit LCD flat panel display |
| Power Consumption (Max) | 450 watt |
| Power Consumption Operational | 360 watt |
| Diagonal Class | 86" |
| Commercial Use | Yes - digital signage |
| Series | DSX Series |
| Platform | Android |
| Operating System | Android OS 14 |
| HDR Capable | Yes |
| TV Tuner | No tuner |
| TV Tuner Presence | No |
| Video Interface | HDMI |
| HDMI Ports Qty | 2 ports |
| Modes | Portrait mode, landscape mode |
| Picture Enhancements | 93% DCI-P3 color gamut, 85% Color Gamut NTSC |
| Design | 13.9mm bezel width |
| Width | 76 in |
| Depth | 2.7 in |
| Height | 43.3 in |
| Weight | 89.95 lbs |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Included Accessories | 3 power cables (EU/UK/US plugs) |
| Cables Included | DB-9 to RS-232 cable - 10 ft ¦ RS-232 cable - 10 ft |
| Compliant Standards | ADA |
| Power | |
| Power Device | Power supply |
| Input Voltage | AC 100-240 V |
| Power Consumption Stand by | 0.5 watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 20 - 80% (non-condensing) |
| Display | |
| Color Support | 1070000000 colors |
| Resolution | 3840 x 2160 |
| Display Format | 4K UHD (2160p) |
| Image Aspect Ratio | 16:9 |
| Frame Rate & Enhancement Technology | 60 Hz Refresh Rate |
| LCD Backlight Technology | Direct LED |
| Coating | 25% haze |
| Dynamic Contrast Ratio | 5000:1 |
| Brightness | 700 cd/m² |
| Viewing Angle | 178° |
| Viewing Angle (Vertical) | 178° |
| Response Time | 6.5 ms |
| Backlight Life | 50,000 hour(s) |
| Commercial Features | Newline Signage Pro, Real-Time Clock (RTC) |
| Operation Hours / Days | 24 / 7 |
| Additional Features | 8-bit+FRC, Wake On LAN |
| Connections | |
| Connector Type | 2 x HDMI input ¦ USB-C 3.0 with DisplayPort ¦ USB 3.0 ¦ HDMI output ¦ SPDIF output ¦ Audio line-out ¦ RS-232 input ¦ RS-232 output ¦ Gigabit LAN input |
| Remote Control | |
| Type | Remote control |
| Battery Form Factor | AAA type |
| Battery Included | Yes |
| Audio System | |
| Speaker System | 2 speakers |
| Output Power / Total | 2 watt |
| Speakers | 2 x main channel speaker - 10 watt |
| Dimensions & Weight (Shipping) | |
| Width (Shipping) | 82.7 in |
| Depth (Shipping) | 9.1 in |
| Height (Shipping) | 49.2 in |
| Weight (Shipping) | 135.8 lbs |
| Network & Internet Multimedia | |
| Connectivity | LAN, Wi-Fi, Bluetooth |
| LAN Protocol | Ethernet |
| Wi-Fi Protocol | 802.11a, 802.11ac, 802.11ax, 802.11b, 802.11g, 802.11n |
| Bluetooth Version | Bluetooth 5.2 |
| Stands & Mounts | |
| Flat Panel Mount Interface | 700 x 500 mm |
| VESA Compatibility | Yes |
| Media Player | |
| USB Port | Yes |
| USB Ports Qty | 2 |
| Configuration | 4 x ARM Cortex-A72 + 4 x ARM Cortex-A53 - 4 GB - 32 GB - Mali-G52 MC3 |
