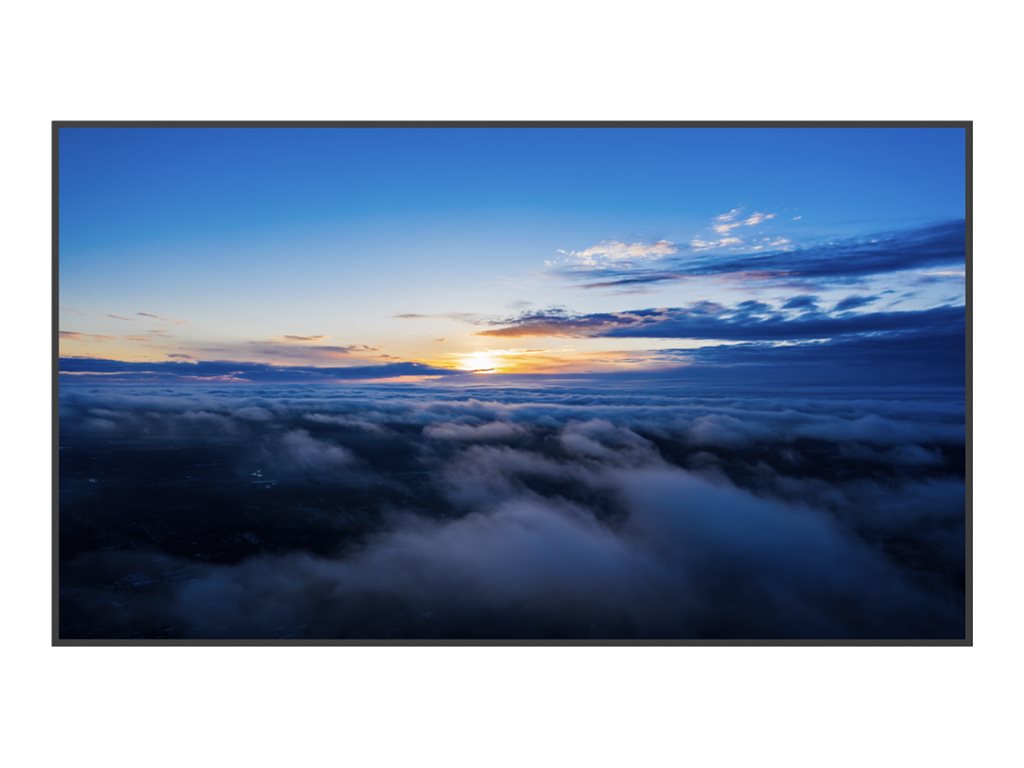

55" Diagonal Class CMB Series LED-backlit LCD display - interactive digital signage - Android - 4K UHD (2160p) 3840 x 2160 - HDR
| Main Specifications | |
|---|---|
| Product Description | MAXHUB ND55CMB CMB Series - 55" LED-backlit LCD display - 4K - for digital signage / interactive communication |
| Product Type | LED-backlit LCD flat panel display |
| Energy Label QR Code URL | Https://eprel.ec.europa.eu/qr/2481114 |
| Diagonal Class | 55" |
| Commercial Use | Yes - interactive digital signage |
| Platform | Android |
| Resolution | 3840 x 2160 |
| Display Format | 4K UHD (2160p) |
| Frame Rate & Enhancement Technology | 60 Hz Refresh Rate |
| Video Interface | HDMI |
| HDMI Ports Qty | 3 ports |
| Connectivity | Wi-Fi, LAN, Bluetooth |
| PC Interface | USB-C |
| Technology | ADS |
| LCD Backlight Technology | LED backlight |
| Image Aspect Ratio | 16:9 |
| TV Tuner | No tuner |
| Internet Streaming Services | Chromecast |
| Commercial Features | MAXHUB Share, MAXHUB Pivot |
| Picture Enhancements | 98% sRGB color gamut |
| Speaker System | 2 speakers |
| Storage Capacity | 32 GB |
| USB | 3 ports |
| Energy Class | Class E |
| Dimensions (WxDxH) | 48.5 in x 2.4 in x 27.7 in |
| Environmental Standards | ENERGY STAR Qualified, EPEAT Bronze |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Product Type | LED-backlit LCD flat panel display |
| Energy Label QR Code URL | Https://eprel.ec.europa.eu/qr/2481114 |
| Energy Class | Class E |
| Power Consumption SDR (On mode) | 62 kWh/1000h |
| Diagonal Class | 55" |
| Commercial Use | Yes - interactive digital signage |
| Series | CMB Series |
| Platform | Android |
| Operating System | Signage OS 2.0 powered by Android 14 |
| HDR Capable | Yes |
| TV Tuner | No tuner |
| TV Tuner Presence | No |
| Video Interface | HDMI |
| HDMI Ports Qty | 3 ports |
| PC Interface | USB-C |
| Modes | Portrait mode, landscape mode |
| Picture Enhancements | 98% sRGB color gamut |
| Design | Ultra-thin bezel design, 9.9mm bezel |
| Protection | Dustproof, corrosion protection, oxidation-resistant |
| Width | 48.5 in |
| Depth | 2.4 in |
| Height | 27.7 in |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Compliant Standards | IPX5, Microsoft Teams certified, ErP Tier E |
| Power | |
| Power Device | Power supply |
| Features | WOL (Wake on LAN) |
| Display | |
| LCD Display Technology | ADS |
| Color Support | 1070000000 colors |
| Resolution | 3840 x 2160 |
| Display Format | 4K UHD (2160p) |
| Image Aspect Ratio | 16:9 |
| Frame Rate & Enhancement Technology | 60 Hz Refresh Rate |
| LCD Backlight Technology | LED backlight |
| Coating | 25% haze |
| Image Contrast Ratio | 1200:1 |
| Brightness | 500 cd/m² |
| Viewing Angle | 178° |
| Viewing Angle (Vertical) | 178° |
| Backlight Life | 100,000 hour(s) |
| Commercial Features | MAXHUB Share, MAXHUB Pivot |
| Operation Hours / Days | 24 / 7 |
| Additional Features | 24/7 operation time, 10-bit support, Apple AirPlay support, USB Cloning, Crestron Connected Compatible, CEC Support, picture-in-picture (PIP), picture-by-picture (PBP) |
| Connections | |
| Connector Type | USB 2.0 ¦ USB-C with 65W Power Delivery ¦ USB 3.0 ¦ Audio line-in ¦ RS-232 ¦ LAN input ¦ HDMI output ¦ Audio line-out ¦ SPDIF output ¦ LAN output |
| Audio System | |
| Speaker System | 2 speakers |
| Output Power / Total | 32 Watt |
| Speakers | 2 x main channel speaker - 16 Watt |
| Network & Internet Multimedia | |
| Connectivity | Wi-Fi, LAN, Bluetooth |
| LAN Protocol | Ethernet |
| Wi-Fi Protocol | 802.11b, 802.11g, 802.11n, 802.11a, 802.11ac, 802.11ax |
| Bluetooth Version | Bluetooth 5.2 |
| Connect & Share | Screen Share, Wi-Fi Miracast |
| Internet Streaming Services | Chromecast |
| Stands & Mounts | |
| Flat Panel Mount Interface | 400 x 400 mm |
| VESA Compatibility | Yes |
| Media Player | |
| USB Port | Yes |
| USB Ports Qty | 3 |
| Configuration | ARM Cortex-A73 Quad-Core ( 1.8 GHz ) - 4 GB - 32 GB |
| Sustainability Information | |
| EPEAT Compliant | EPEAT Bronze |
| ENERGY STAR Certified | Yes |
