Security appliance - 5 ports - 1GbE - Wi-Fi 6 - 5G - 2.4 GHz, 5 GHz
| Main Specifications | |
|---|---|

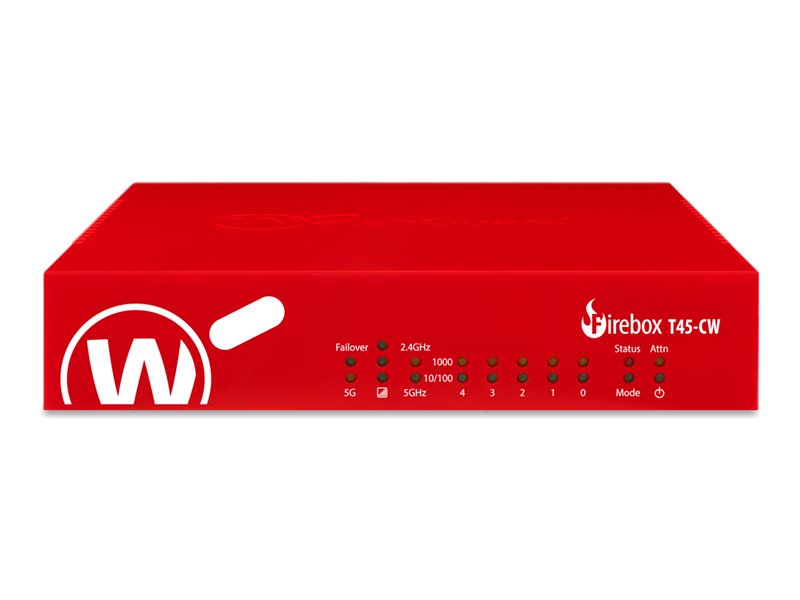

| Product Description | WatchGuard Firebox T45-CW - security appliance - Wi-Fi 6 |
| Device Type | Security appliance |
| Form Factor | External |
| Processor | 1 x NXP LS1043ASE7QQB 1.6 GHz |
| RAM | 4 GB |
| Hard Drive | 16 GB x 1 |
| Ports Qty | 5 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6) |
| Frequency Band | 2.4 GHz, 5 GHz |
| Performance | Unified Threat Management (UTM) throughput (full scan): 557 Mbps ¦ Firewall throughput (IMIX): 1.44 Gbps ¦ VPN throughput (IMIX): 460 Mbps ¦ HTTPS content inspection (IPS enabled): 301 Mbps ¦ Antivirus throughput: 874 Mbps ¦ IPS throughput (full scan): 716 Mbps ¦ Firewall throughput (1518-byte UDP): 3.94 Gbps ¦ VPN throughput (1518-byte UDP): 1.58 Gbps ¦ Maximum data rate (2.4 GHz): 573 Mbps ¦ Maximum data rate (5 GHz): 1.2 Gbps |
| Capacity | Concurrent connections: 3850000 ¦ Concurrent connections (proxy): 285000 ¦ New connections per second: 26500 ¦ VLANs supported: 50 ¦ Mobile VPN tunnels: 30 ¦ Branch office VPN tunnels: 30 |
| Mobile Broadband Access | Yes |
| Generation | 5G |
| Cellular Protocol | 5G NR |
| Included Accessories | Power cord, 4 antennas, 4 antenna terminal covers |
| Power | AC 100-240 V (50/60 Hz) |
| Dimensions (WxDxH) | 8 in x 8.5 in x 1.8 in |
| Weight | 34.67 oz |
| General | |
| Device Type | Security appliance |
| Width | 8 in |
| Depth | 8.5 in |
| Height | 1.8 in |
| Weight | 34.67 oz |
| Expansion / Connectivity | |
| Expansion Slots | 1 (total) / 1 (free) x Nano SIM card |
| Interfaces | 1 x 1000Base-T - RJ-45 (WAN) ¦ 1 x serial - RJ-45 ¦ 1 x USB 3.0 - Type A ¦ 4 x 1000Base-T - RJ-45 ¦ 4 x antenna - SMA |
| Miscellaneous | |
| Included Accessories | Power cord, 4 antennas, 4 antenna terminal covers |
| Cables Included | 1 x network cable |
| MTBF | 477,304 hours |
| Compliant Standards | CB, NRTL, WEEE, REACH, IPv6 Ready Gold, RoHS |
| Networking | |
| Form Factor | External |
| Ports Qty | 5 |
| Connectivity Technology | Wireless, wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6) |
| Network / Transport Protocol | TCP/IP, UDP/IP, L2TP, IPSec, PPPoE, FTP, DHCP, DNS, DDNS, HTTP, HTTPs, SMTPS, POP3S, IMAPS |
| Routing Protocol | OSPF, RIP, BGP, static IP routing |
| Remote Management Protocol | SNMP 2, SNMP 3 |
| Frequency Band | 2.4 GHz, 5 GHz |
| Performance | Unified Threat Management (UTM) throughput (full scan): 557 Mbps ¦ Firewall throughput (IMIX): 1.44 Gbps ¦ VPN throughput (IMIX): 460 Mbps ¦ HTTPS content inspection (IPS enabled): 301 Mbps ¦ Antivirus throughput: 874 Mbps ¦ IPS throughput (full scan): 716 Mbps ¦ Firewall throughput (1518-byte UDP): 3.94 Gbps ¦ VPN throughput (1518-byte UDP): 1.58 Gbps ¦ Maximum data rate (2.4 GHz): 573 Mbps ¦ Maximum data rate (5 GHz): 1.2 Gbps |
| Capacity | Concurrent connections: 3850000 ¦ Concurrent connections (proxy): 285000 ¦ New connections per second: 26500 ¦ VLANs supported: 50 ¦ Mobile VPN tunnels: 30 ¦ Branch office VPN tunnels: 30 |
| Status Indicators | Failover, 5G, signal strength, 2.4 GHz, 5 GHz, status, operation mode, reset, power |
| Features | Firewall protection, Stateful Packet Inspection (SPI), proxy firewall, HTTP proxy, HTTPS proxy, FTP proxy, DNS proxy, TCP/UDP proxy, POP3S proxy, SMTPS proxy, IMAPS proxy, Explicit proxy, DoS attack prevention, fragmented & malformed packets protection, blended threats protection, multi-WAN failover, Dynamic path selection (DPS), jitter/ loss/ latency measurement, DiffServ Code Point (DSCP) support, IP Precedence, DHCP relay, DHCP client, DHCP server |
| Encryption Algorithm | TLS, IKEv2, FIPS 140-2 |
| Compliant Standards | IEEE 802.1Q, IEEE 802.3ad (LACP) |
| Power | |
| Power Device | External power adapter |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Provided | 48 Watt |
| Software / System Requirements | |
| OS Provided | WatchGuard Fireware OS |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Communications | |
| Mobile Broadband Access | Yes |
| Generation | 5G |
| Cellular Protocol | 5G NR |
| Processor / Memory / Storage | |
| Processors Installed | 1 x NXP LS1043ASE7QQB 1.6 GHz |
| Max Supported Qty | 1 |
| RAM | 4 GB DDR4 SDRAM |
| Hard Drive | SSD 16 GB x 1 - M.2 |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 12.1 in |
| Shipping Depth | 10.3 in |
| Shipping Height | 7.1 in |
| Shipping Weight | 4.1 lbs |
| Antenna | |
| Antenna | External detachable |
| Antenna Qty | 4 |
