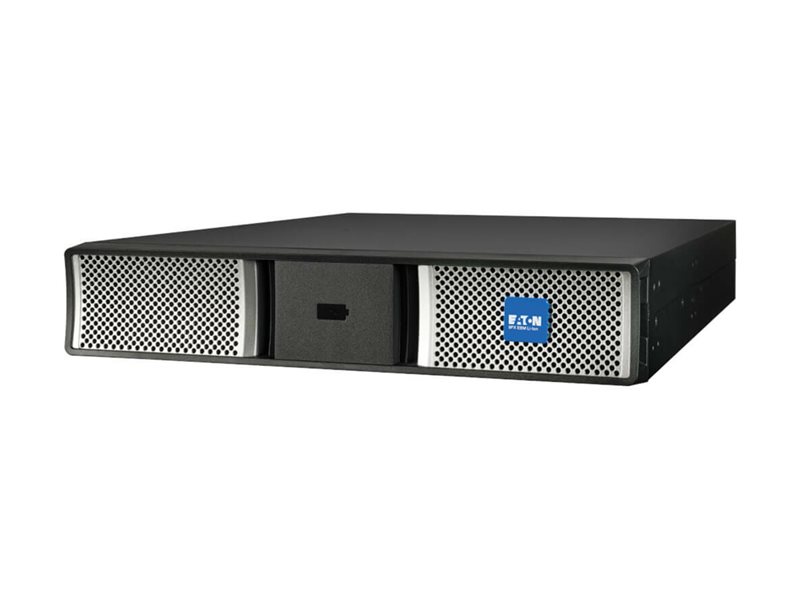

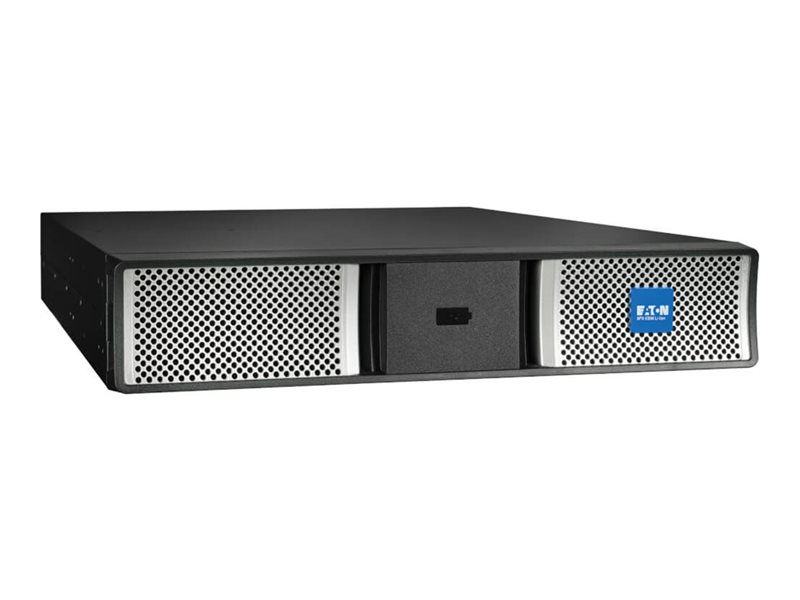

Battery enclosure (rack-mountable / external) - 192V - lithium ion - 12 Ah - 2304 Wh - 2U
| Main Specifications | |
|---|---|
| Product Description | Eaton 9PX - battery enclosure - 192V - Li-Ion - 12 Ah - 2304 Wh |
| Device Type | Battery enclosure - rack-mountable / external |
| Rack Size | 2U |
| Weight | 76.94 lbs |
| Battery | Lithium ion - 12 Ah - 2304 Wh |
| Dimensions (WxDxH) | 17.2 in x 25.4 in x 3.4 in |
| Manufacturer Warranty | 5-year warranty |
| General | |
| Device Type | Battery enclosure - rack-mountable / external |
| Height (Rack Units) | 2U |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Cables Included | Power cable 1 ft |

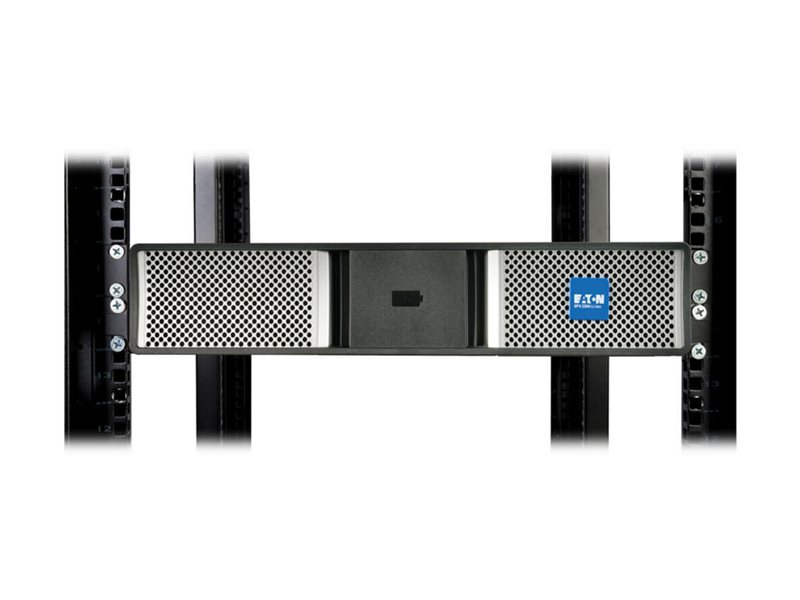

| Rack Mounting Kit | Included |
| Features | Single-phase, daisy chaining support, Battery Management System (BMS), Enhanced Battery Management (EBM) |
| Compliant Standards | RoHS, cUL, EN 62040-2, FCC (USA), Mexico NOM |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 96% (non-condensing) |
| Battery | |
| Technology | Lithium ion |
| Voltage Provided | 192 V |
| Capacity | 12 Ah - 2304 Wh |
| Features | Hot-swappable |
| Power Device | |
| UPS Technology | On-line |
| Dimensions & Weight | |
| Width | 17.2 in |
| Depth | 25.4 in |
| Height | 3.4 in |
| Weight | 76.94 lbs |
