NAS server - 16 bays - SATA 6Gb/s - RAID 0, 1, 5, 6, 10, 50, 60 - RAM 32 GB - 10 Gigabit Ethernet - iSCSI support
| Main Specifications | |
|---|---|

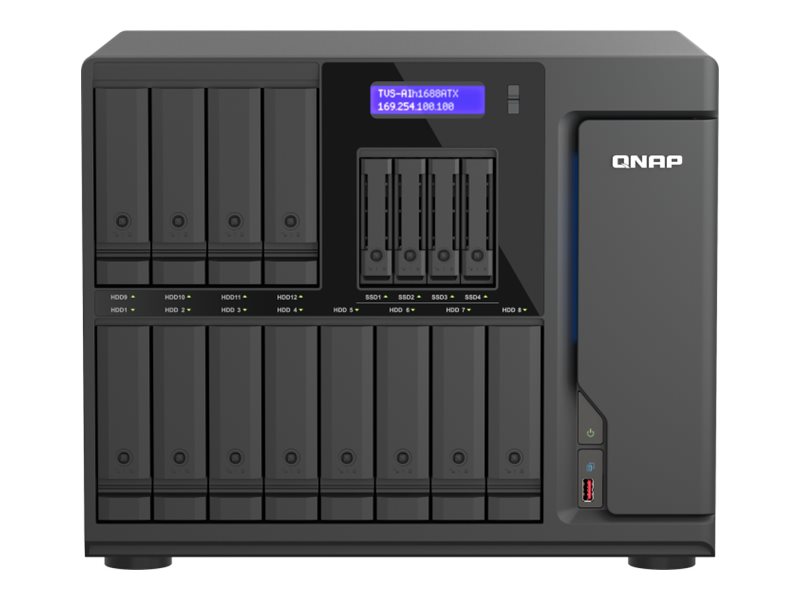

| Product Description | QNAP TVS-AIH1688ATX - NAS server |
| Device Type | NAS server |
| Host Connectivity | 10 Gigabit Ethernet |
| Installed Devices / Modules Qty | 0 (installed) / 16 (max) |
| Dimensions (WxDxH) | 14.6 in x 12.6 in x 11.6 in |
| Weight | 30.42 lbs () |
| Localization | United States |
| Processor | 1 x Intel Core Ultra 7 (20-core) |
| Storage Controller | RAID SATA 6Gb/s RAID 0, 1, 5, 6, 10, 50, 60 |
| Networking | 10Mb LAN, 100Mb LAN, 1GbE, 2.5GbE, 10GbE |
| RAM | 32 GB |
| Power | AC 100-240 V |
| Manufacturer Warranty | 5-year warranty |
| General | |
| Device Type | NAS server |
| Host Connectivity | 10 Gigabit Ethernet |
| Total Storage Capacity | 0 GB |
| Installed Devices / Modules Qty | 0 (installed) / 16 (max) |
| Width | 14.6 in |
| Depth | 12.6 in |
| Height | 11.6 in |
| Weight | 30.42 lbs () |
| Built-in Devices | Status LCD, 3 x 80 mm fans, 2 x 97 mm CPU fans |
| Localization | United States |
| Expansion / Connectivity | |
| Expansion Bays | 12 x hot-swap - 2.5" / 3.5" ¦ 4 x hot-swap - 2.5" |
| Expansion Slots | 1 (total) / 1 (free) x PCI Express 4.0 x16 ¦ 2 (total) / 2 (free) x PCI Express 4.0 x4 |
| Interfaces | 2 x Ethernet 10Gb - RJ-45 ¦ 2 x 2.5 Gigabit Ethernet - RJ-45 ¦ 1 x HDMI output ¦ 2 x USB 3.2 Gen 2 - Type C ¦ 3 x USB 3.2 Gen 2 - Type A |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Features | Security lock slot (cable lock sold separately) |
| Security Slot Type | Kensington security slot |
| Compliant Standards | FIPS 140-2 |
| Networking | |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, 1GbE, 2.5GbE, 10GbE |
| Network / Transport Protocol | IPv4, IPv6 |
| Remote Management Protocol | SNMP 2, SNMP 3, RADIUS |
| Network Services Compatibility | DDNS |
| Features | Floating point unit, Encryption Engine, hardware-accelerated transcoding, SSD cache acceleration support, WOL, LED status indicators, LED display, reset button, Storage Pool, SED Storage Pool, JBOD Expansion, VJBOD Cloud, iSCSI service, fibre channel service, block-based iSCSI LUN, RAID Hot Spare, Disk S.M.A.R.T. Scan, Disk S.M.A.R.T. Data Migration, Secure Erase, SSD trim, SSD life estimation, Disk Roaming, Disk Standby, Volume Snapshot, LUN snapshot, Snapshot Retention Policy, Self-serve Snapshot Recovery, Application Consisted Snapshot, Snapshot Full Clone, Snapshot Replica / Vault, SSD read-only Cache, SSD read-write cache, SSD write-only cache, SSD profiling tool, External Device Management, MTP, Object Storage, domain security, Domain Controller, shared folder permission, user quota, group quota, home folder, Resource Monitor, Smart Fan, schedule on/off, DHCP server, security counselor, malware remover, Access Protection, Service binding, firewall protection, LDAP server, HD Station, SQL Server |
| Encryption Algorithm | FIPS 140-2, TLS, 256-bit AES |
| Compliant Standards | UPnP |
| Power | |
| Power Device | External power adapter |
| Voltage Required | AC 100-240 V |
| Power Consumption Operational | 130.83 Watt |
| Power Consumption Stand by | 97.036 Watt |
| Power Provided | 750 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 95% RH (non-condensing) |
| Storage Controller | |
| Type | RAID |
| Interface Type | SATA 6Gb/s |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60 |
| Processor / Memory | |
| Processors Installed | 1 x Intel Core Ultra 7 |
| Number of Cores | 20-core |
| Max Supported Qty | 1 |
| Max Turbo Speed | 5.3 GHz |
| RAM | 32 GB (installed) / 192 GB (supported) - DDR5 |
| Features | Unregistered, ECC |
| Flash Memory Installed | 5 GB |
