Switch - L3 - managed - 48 x 10GBase-T + 8 x 40 Gigabit / 100 Gigabit QSFP28 - rack-mountable
| Main Specifications | |
|---|---|

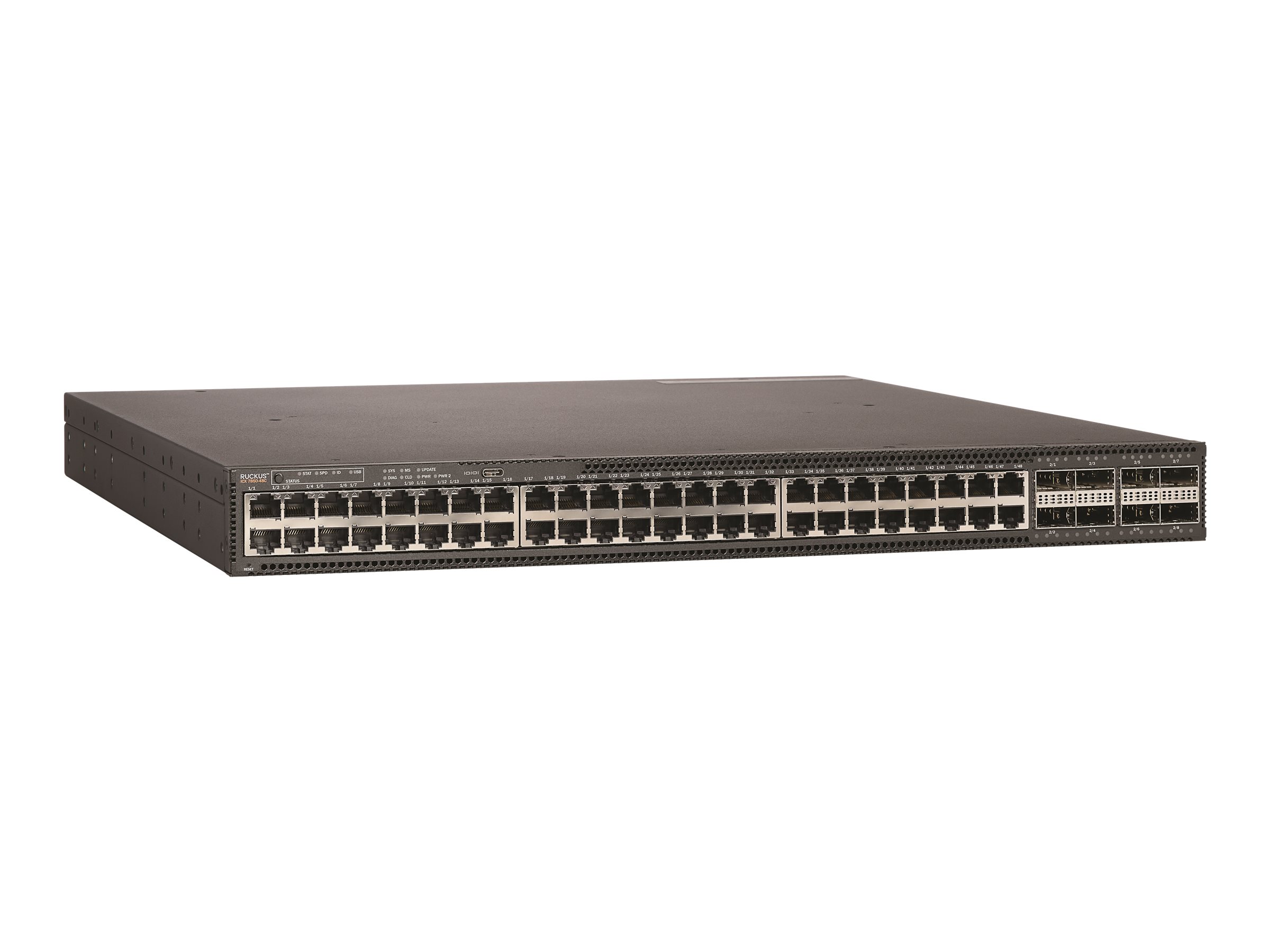

| Product Description | Ruckus ICX 7850-48C - switch - 48 ports - managed - rack-mountable |
| Device Type | Switch - 48 ports - L3 - managed - stackable |
| Enclosure Type | Rack-mountable 1U |
| Subtype | 10 Gigabit Ethernet |
| Ports | 48 x 10GBase-T + 8 x 40 Gigabit / 100 Gigabit QSFP28 |
| Performance | Switching capacity: 2.56 Tbps ¦ Forwarding capacity: 1.9 Bpps ¦ Aggregate stacking bandwidth: 9.6 Tbps |
| Capacity | Virtual interfaces (VLANs): 4095 ¦ Spanning Tree Protocol instances: 254 ¦ IPv4 routes: 128000 ¦ IPv6 routes: 7000 ¦ PVLANs supported: 256 ¦ Maximum ports per trunk: 16 ¦ Trunk groups: 256 ¦ Latency: 0.8 ?s ¦ VRF instances: 128 ¦ Layer 2 multicast groups: 8192 ¦ Layer 3 multicast groups: 8192 |
| MAC Address Table Size | 96K entries |
| Jumbo Frame Support | 9216 bytes |
| Routing Protocol | RIP-1, RIP-2, IGMPv2, IGMP, VRRP, static IP routing, IGMPv3, ECMP, RIPng, MLDv2, MLD |
| Remote Management Protocol | SNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH-2, CLI, SCP, NTP, DHCP, TACACS+, RADIUS |
| Features | Flow control, full duplex capability, layer 2 switching, BOOTP support, trunking, load balancing, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, DoS attack prevention, port mirroring, DiffServ support, WRR queuing, MAC address filtering, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, LFS, MRP support, sFlow, STP support, PVST, RFN, VRRP support, VSRP support, VCT technology, MRP-II support, MSTP support, DHCP snooping, ACL support, QoS, DOM support, DHCP server, MLD snooping, DAI, TPM, PVST+, reset button, UDLD, LLDP support, DHCP relay, LACP, RSPAN, MIB, GVRP, NAC, VRF, SPQ, NDP, hot swappable fan, CoS, SP, IGMP proxy, GVRP, reverse airflow support, ToS, DSCP support, OpenFlow support, ISSU, 32MB packet buffer, SCP, VXLAN, Link Aggregation, failover protection, SDN, MAC address authentication, AAA, Root Guard, Voice VLAN, LLDP-MED, Private VLAN, protected ports, MCT, ERSPAN, MAC based VLAN, Hybrid OpenFlow 1.3, VLAN Tagging, Telnet server, Telnet client, DSCP based ToS, Unknown Storm Control, BPDU Guard, Rapid Reconfiguration of Spanning Tree (RSTP), PVLAN support, Q-in-Q tunneling, SmartZone, DSCP based QoS, RPVST+, IPG adjustment, MAC Learning Disable, Port Loop Detection, CSMA/CD |
| Compliant Standards | IEEE 802.3, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ae, IEEE 802.1ab (LLDP), IEEE 802.3ba, IEEE 802.1BR, IEEE 802.1AX |
| Power | AC 100-240 V (50/60 Hz) |
| Power Redundancy | Yes |
| Dimensions (WxDxH) | 17.3 in x 17.5 in x 1.7 in |
| Weight | 20.06 lbs |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | Switch - 48 ports - L3 - managed - stackable |
| Enclosure Type | Rack-mountable 1U |
| Subtype | 10 Gigabit Ethernet |
| Ports | 48 x 10GBase-T + 8 x 40 Gigabit / 100 Gigabit QSFP28 |
| Performance | Switching capacity: 2.56 Tbps ¦ Forwarding capacity: 1.9 Bpps ¦ Aggregate stacking bandwidth: 9.6 Tbps |
| Capacity | Virtual interfaces (VLANs): 4095 ¦ Spanning Tree Protocol instances: 254 ¦ IPv4 routes: 128000 ¦ IPv6 routes: 7000 ¦ PVLANs supported: 256 ¦ Maximum ports per trunk: 16 ¦ Trunk groups: 256 ¦ Latency: 0.8 ?s ¦ VRF instances: 128 ¦ Layer 2 multicast groups: 8192 ¦ Layer 3 multicast groups: 8192 |
| MAC Address Table Size | 96K entries |
| Jumbo Frame Support | 9216 bytes |
| Max Units In A Stack | 12 |
| Routing Protocol | RIP-1, RIP-2, IGMPv2, IGMP, VRRP, static IP routing, IGMPv3, ECMP, RIPng, MLDv2, MLD |
| Remote Management Protocol | SNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH-2, CLI, SCP, NTP, DHCP, TACACS+, RADIUS |
| Encryption Algorithm | AES |
| Authentication Method | RADIUS, TACACS, TACACS+, Secure Shell v.2 (SSH2) |
| Features | Flow control, full duplex capability, layer 2 switching, BOOTP support, trunking, load balancing, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, DoS attack prevention, port mirroring, DiffServ support, WRR queuing, MAC address filtering, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, LFS, MRP support, sFlow, STP support, PVST, RFN, VRRP support, VSRP support, VCT technology, MRP-II support, MSTP support, DHCP snooping, ACL support, QoS, DOM support, DHCP server, MLD snooping, DAI, TPM, PVST+, reset button, UDLD, LLDP support, DHCP relay, LACP, RSPAN, MIB, GVRP, NAC, VRF, SPQ, NDP, hot swappable fan, CoS, SP, IGMP proxy, GVRP, reverse airflow support, ToS, DSCP support, OpenFlow support, ISSU, 32MB packet buffer, SCP, VXLAN, Link Aggregation, failover protection, SDN, MAC address authentication, AAA, Root Guard, Voice VLAN, LLDP-MED, Private VLAN, protected ports, MCT, ERSPAN, MAC based VLAN, Hybrid OpenFlow 1.3, VLAN Tagging, Telnet server, Telnet client, DSCP based ToS, Unknown Storm Control, BPDU Guard, Rapid Reconfiguration of Spanning Tree (RSTP), PVLAN support, Q-in-Q tunneling, SmartZone, DSCP based QoS, RPVST+, IPG adjustment, MAC Learning Disable, Port Loop Detection, CSMA/CD |
| Compliant Standards | IEEE 802.3, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ae, IEEE 802.1ab (LLDP), IEEE 802.3ba, IEEE 802.1BR, IEEE 802.1AX |
| RAM | 4 GB |
| Flash Memory | 32 GB |
| Expansion / Connectivity | |
| Interfaces | 48 x 10GBase-T RJ-45 ¦ 8 x 40/100Gbit LAN QSFP28 ¦ 1 x management (Gigabit LAN) RJ-45 ¦ 1 x console RJ-45 management ¦ 1 x console (USB) Type C ¦ 1 x USB Type A |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| MTBF | 222,514 hours |
| Compliant Standards | CISPR 22 Class A, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, EN 61000-6-1, EN 61000-4-4, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, EN 61000-4-11, EN 61000-4-8, UL 60950-1, WEEE, RoHS, EN 61000-6-3, FCC Part 15 A, EN 60825-1, CAN/CSA C22.2 No. 60950-1-07, VCCI Class A, EN 60950-1:2006, IEC 60950-1, IEC 68-2-6, AS/NZS 55022, IEC 68-2-36, IEC 68-2-32, IEC 68-2-27 |
| Power | |
| Power Device | Internal power supply - hot-plug |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Power Provided | 650 Watt |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 254.4 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Storage | 10 - 90% (non-condensing) |
| Dimensions & Weight | |
| Width | 17.3 in |
| Depth | 17.5 in |
| Height | 1.7 in |
| Weight | 20.06 lbs |
