Router - WWAN 1GbE - 3G, 4G - TAA Compliant - with 5 years NetCloud Branch LTE Adapter Essentials Plan and Advanced Plan - for P/N: 170732-001, 170732-002, 170732-004, 170765-000, 170876-001, TAA-170876-001
| Main Specifications | |
|---|---|

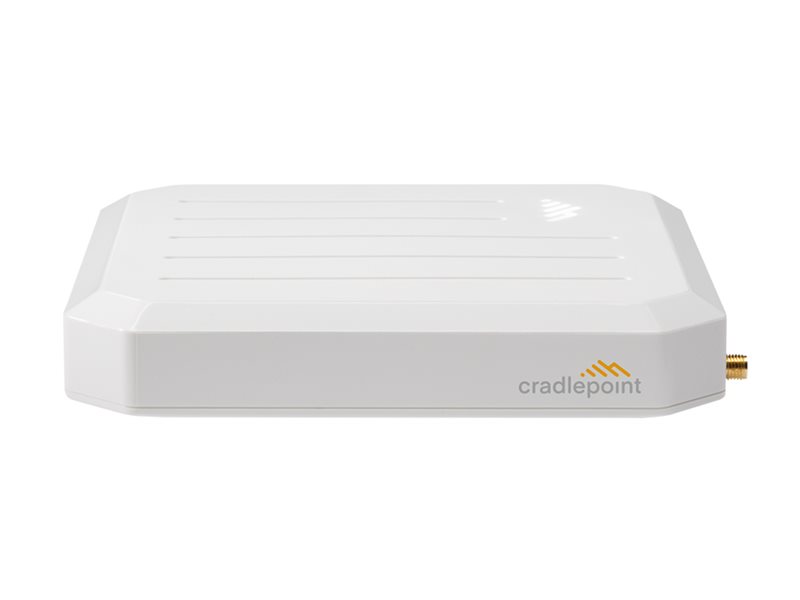

| Product Description | Cradlepoint L950 Series L950-C7A - router - WWAN - 3G, 4G - desktop - TAA Compliant |
| Device Type | Router - wireless cellular modem |
| Enclosure Type | Desktop |
| Bundled Services | 5 years NetCloud Branch LTE Adapter Essentials Plan and Advanced Plan |
| Cellular Protocol | WCDMA, UMTS, HSPA+, LTE |
| Generation | 3G, 4G |
| Cellular Band | LTE B2, LTE B4, LTE B5, LTE B7, LTE B12, LTE B13, LTE B14, LTE B25, LTE B26, LTE B66, LTE B71, LTE B41, LTE B42, LTE B43, LTE B48, HSPA+ B2, HSPA+ B4, HSPA+ B5 |
| WAN Ports Qty | 1 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Performance | IP pass-through mode throughput: 940 Mbps ¦ Standard NAT mode throughput: 940 Mbps ¦ Captive modem mode throughput: 940 Mbps |
| Features | NAT support, security lock slot (cable lock sold separately), 2x2 MIMO technology, Zero-Touch Deployment, cloud managed, FirstNet ready, reset button, passive GNSS, 3GPP Release 11 |
| Compliant Standards | IEEE 802.3af |
| Dimensions (WxDxH) | 5.7 in x 5.7 in x 1.2 in |
| Weight | 13.76 oz |
| Localization | North America (US and Canada) |
| TAA Compliant | Yes |
| Manufacturer Warranty | Limited lifetime warranty |
| Designed For | P/N: 170732-001, 170732-002, 170732-004, 170765-000, 170876-001, TAA-170876-001 |
| General | |
| Device Type | Router |
| Bundled Services | 5 years NetCloud Branch LTE Adapter Essentials Plan and Advanced Plan |
| Enclosure Type | Desktop |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Performance | IP pass-through mode throughput: 940 Mbps ¦ Standard NAT mode throughput: 940 Mbps ¦ Captive modem mode throughput: 940 Mbps |
| Features | NAT support, security lock slot (cable lock sold separately), 2x2 MIMO technology, Zero-Touch Deployment, cloud managed, FirstNet ready, reset button, passive GNSS, 3GPP Release 11 |
| Compliant Standards | IEEE 802.3af, UL, cUL, CB Scheme, EN 60950-1, EN 62368-1, WEEE, RoHS, REACH, CP65, FCC, IC, PTCRB, FCC Part 96 |
| Status Indicators | Status |
| Expansion / Connectivity | |
| Interfaces | WAN / LAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ LAN: 1 x 10Base-T/100Base-TX/1000Base-T (PoE) - RJ-45 ¦ Antenna: 2 x SMA ¦ USB 2.0: 1 x 4 pin USB Type A |
| Expansion Slots | 2 Nano-SIM |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Included Accessories | 2 x cellular antennas |
| MTBF | 613,536 hours |
| TAA Compliant | Yes |
| Localization | North America (US and Canada) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 10 - 90% |
| Communications | |
| Type | Wireless cellular modem |
| Cellular Protocol | WCDMA, UMTS, HSPA+, LTE |
| Generation | 3G, 4G |
| Cellular Band | LTE B2, LTE B4, LTE B5, LTE B7, LTE B12, LTE B13, LTE B14, LTE B25, LTE B26, LTE B66, LTE B71, LTE B41, LTE B42, LTE B43, LTE B48, HSPA+ B2, HSPA+ B4, HSPA+ B5 |
| Max Transfer Rate | 300 Mbps |
| Dimensions & Weight | |
| Width | 5.7 in |
| Depth | 5.7 in |
| Height | 1.2 in |
| Weight | 13.76 oz |
| Antenna | |
| Antenna | External detachable |
| Antenna Qty | 2 |
| Line Properties | |
| Line Coding Format | 64 QAM |
| Compatibility Information | |
| Designed For | P/N: 170732-001, 170732-002, 170732-004, 170765-000, 170876-001, TAA-170876-001 |
