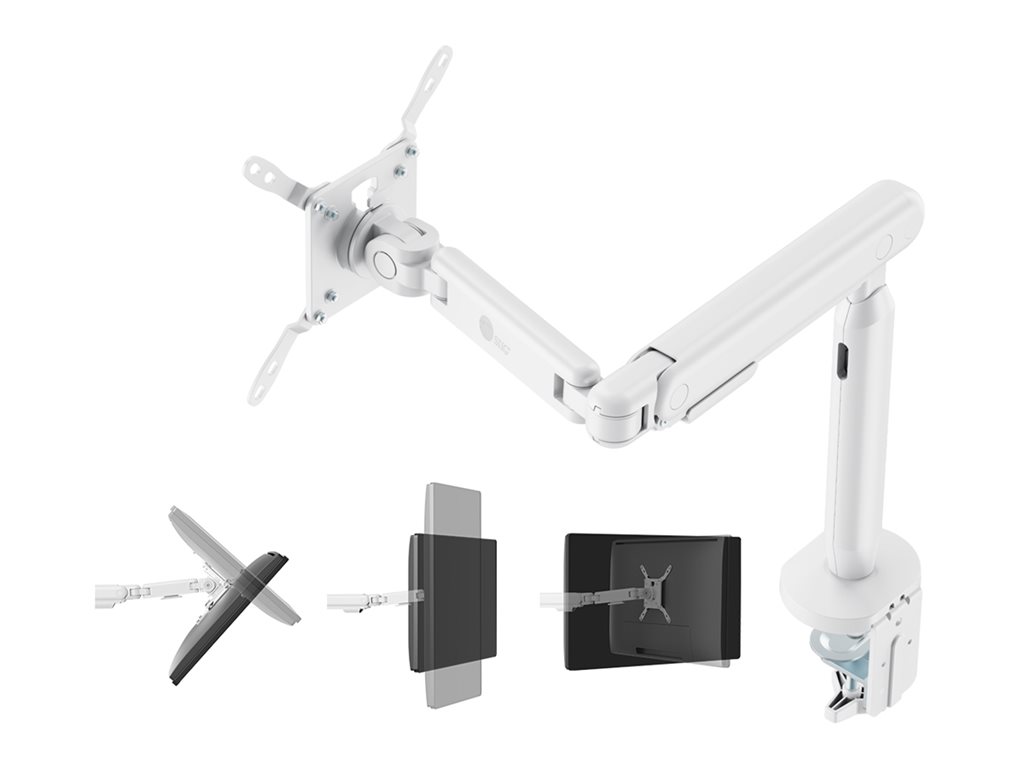

Mounting kit (articulating arm) - full-motion - for LCD display/ curved LCD display - ultrawide, 3-segment, USB-C/USB-A ports - aluminum - white - screen size: 17"-40" (ultra-wide) - desk-mountable
| Main Specifications | |
|---|---|
| Product Description | SIIG Easel mounting kit - full-motion - for LCD display/ curved LCD display - ultrawide, 3-segment, USB-C/USB-A ports - white |
| Product Type | Mounting kit (full-motion) - desk-mountable |
| Mounting Components | Articulating arm |

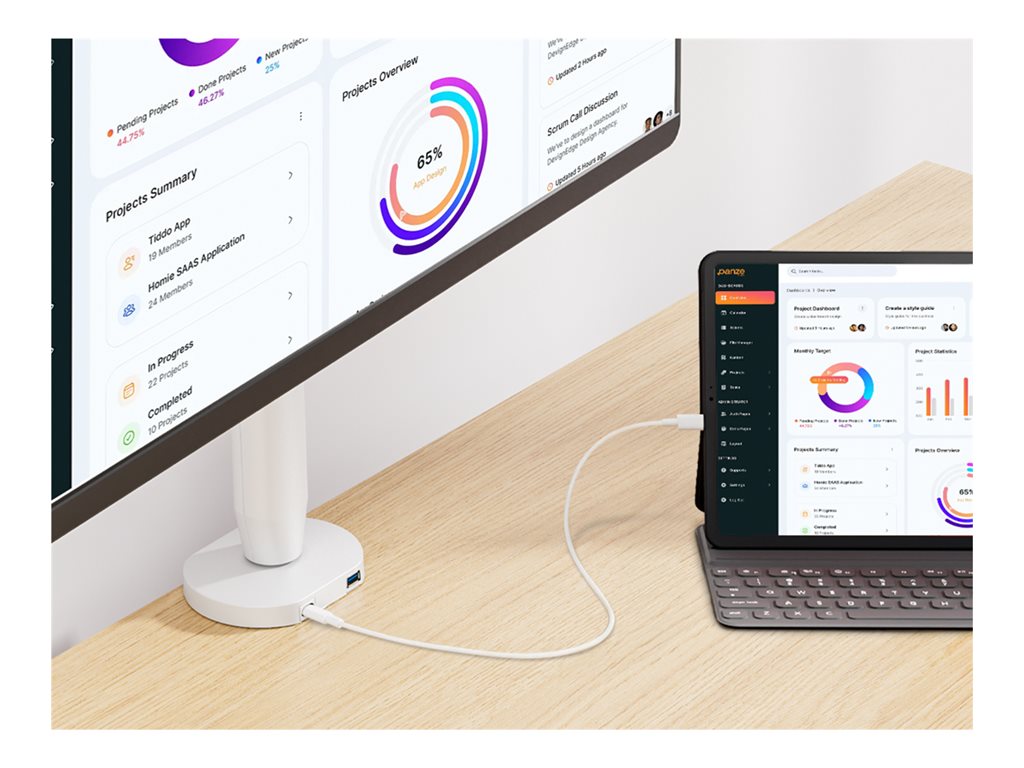

| Integrated Devices | USB-A port, USB-C port |
| Dimensions (WxDxH) | 27.9 in x 8.7 in x 23.3 in |
| Adjustable Depth | Up to 57.3 cm |
| Adjustable Height | Up to 20 cm |
| Tilt | -60° to 60° |
| Lift | 7.87 in |
| Rotation | -90° to 90° |
| Swivel | -90° to 90° |
| Adjustments | Depth, tilt, rotation, swivel, height |
| Joints Qty | 3 |
| Weight | 7.94 lbs |
| Recommended Use | LCD display/ curved LCD display |
| Recommended Display Size | 17"-40" (ultra-wide) |

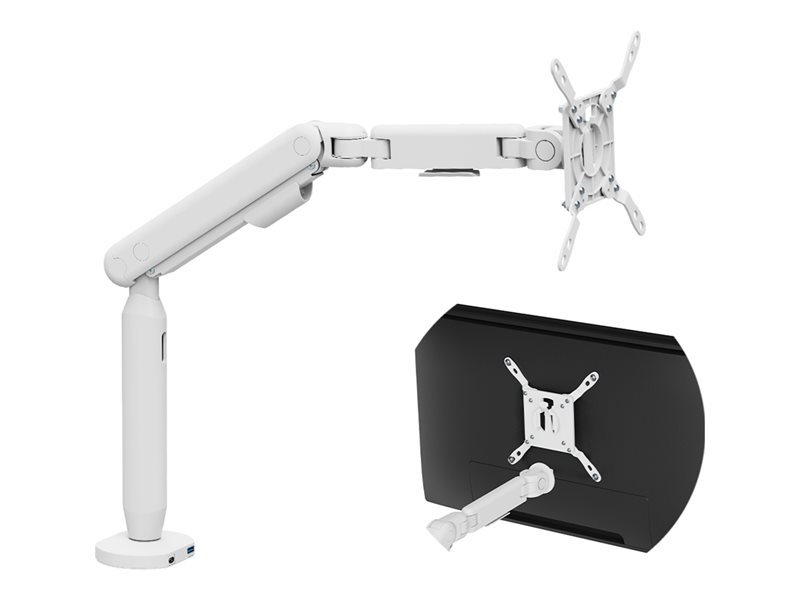

| VESA Mounting Interface | 75 x 75 mm, 100 x 100 mm, 200 x 200 mm |
| Max Load Weight | 24.3 lbs |
| Material | Aluminum |
| Color | White |

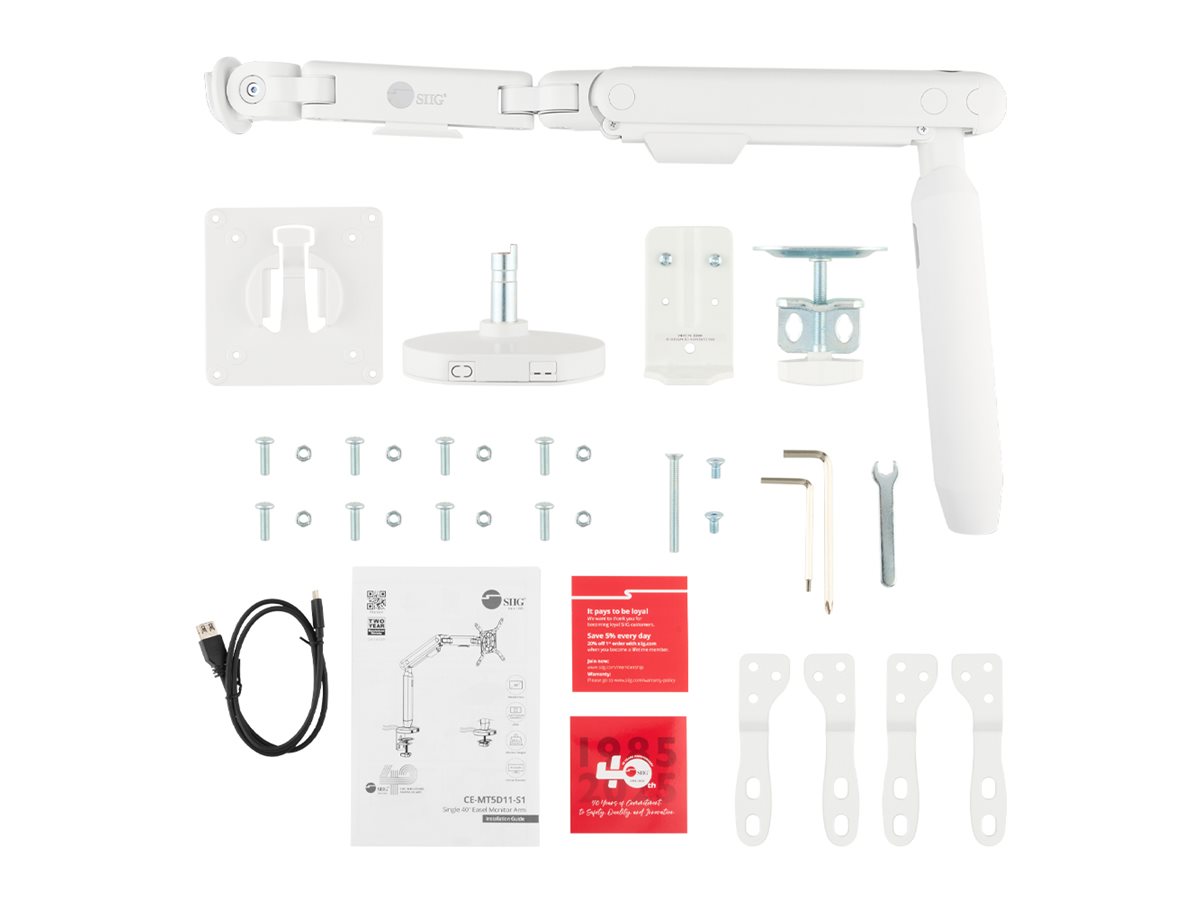

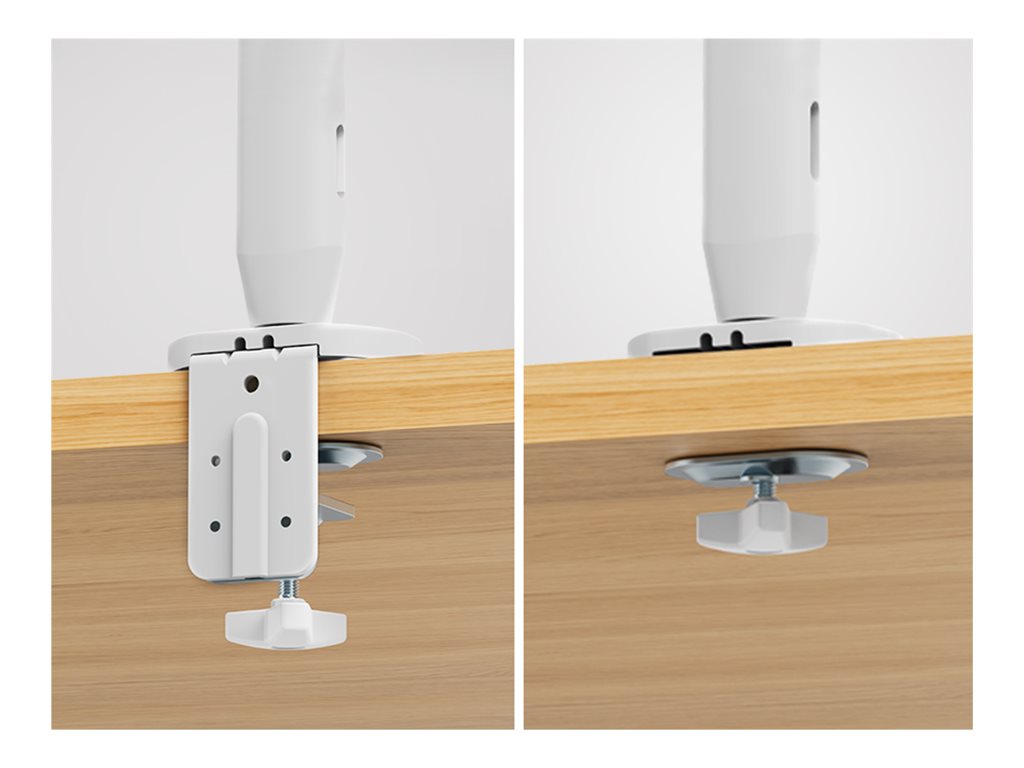

| Package Content | Clamp, grommet, mounting hardware |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Width | 27.9 in |
| Depth | 8.7 in |
| Height | 23.3 in |
| Adjustable Depth | Up to 57.3 cm |
| Adjustable Height | Up to 20 cm |
| Weight | 7.94 lbs |
| Material | Aluminum |
| Color | White |
| Package Content | Clamp, grommet, mounting hardware |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| AV Furniture | |
| Type | Mounting kit |
| Mounting Components | Articulating arm |
| Design | Full-motion |
| Recommended Use | LCD display/ curved LCD display |
| Placing / Mounting | Desk-mountable |
| VESA Mounting Interface | 75 x 75 mm, 100 x 100 mm, 200 x 200 mm |
| Integrated Devices | USB-A port, USB-C port |

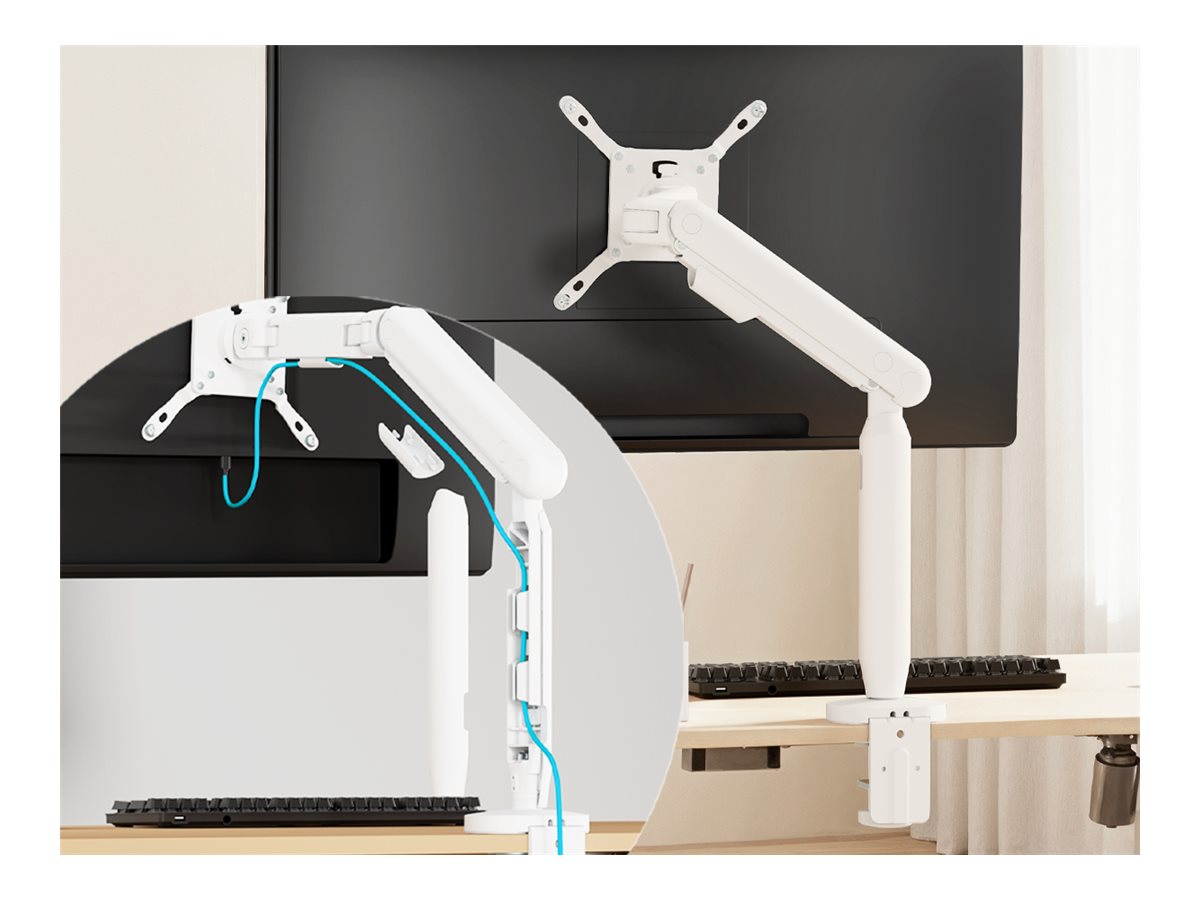

| Cable Management | Integrated cable management |
| Recommended Display Size | 17"-40" (ultra-wide) |
| Tilt | -60° to 60° |
| Lift | 7.87 in |
| Rotation | -90° to 90° |
| Swivel | -90° to 90° |
| Adjustments | Depth, tilt, rotation, swivel, height |
| Joints Qty | 3 |
| Max Load Weight | 24.3 lbs |
| Min Load Weight | 6.6 lbs |
| Dimensions & Weight Details | |
| Shipping Dimensions (WxDxH) / Weight | 14.8 in x 16.3 in x 3.5 in / 9.92 lbs |
| Compliant Standards | RoHS, CP65 |
