Audio input/output expander
| Main Specifications | |
|---|---|

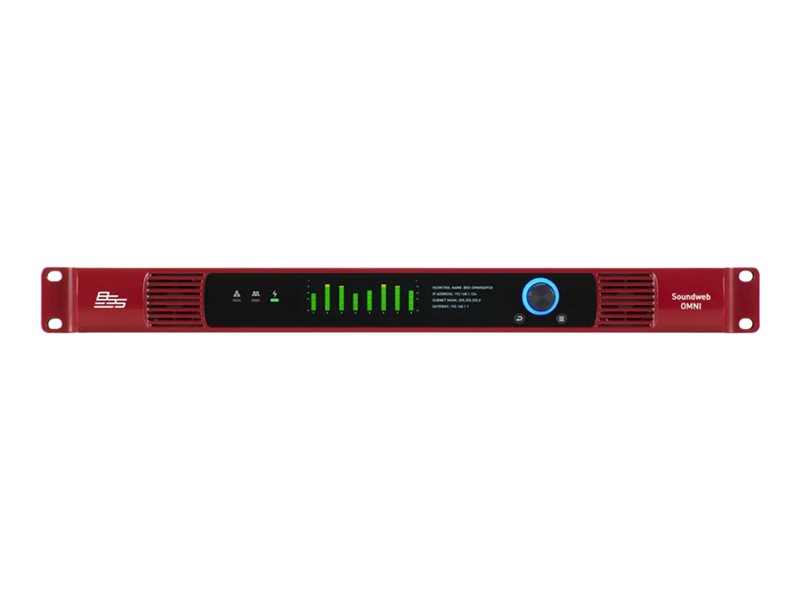

| Product Description | BSS Soundwerb Omni 16e audio input/output expander |
| Type | Audio input/output expander |
| Dimensions (WxDxH) | 17.5 in - 19 in - 1.7 in |
| Weight | 12.9 lbs |
| Manufacturer Warranty | 5 years |
| General | |
| Type | Audio input/output expander |
| Width | 17.5 in |
| Depth | 19 in |
| Height | 1.7 in |
| Weight | 12.9 lbs |
| Manufacturer Warranty | |
| Warranty | 5 years |
| Power | |
| Voltage Required | AC 120/230 V AC 100-240 V |
| Frequency | 50/60 Hz |
| Power Consumption | 200 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 113 °F |
| Terminals | |
| Terminals | (4) x analog audio input - 3-pin terminal block ¦ (4) x analog audio output - 3-pin terminal block ¦ (4) x flex input/output - 3-pin terminal block ¦ (12) x GPIO - terminal block ¦ (1) x service port - USB-C ¦ (2) x Dante - RJ-45 ¦ (2) x control - RJ-45 |
| Studio & Production Equipment | |
| Features | AES67 support, AES3/EBU support, built-in LCD, built-in microphone preamplifier, phantom power, fan cooling, rack-mountable |
