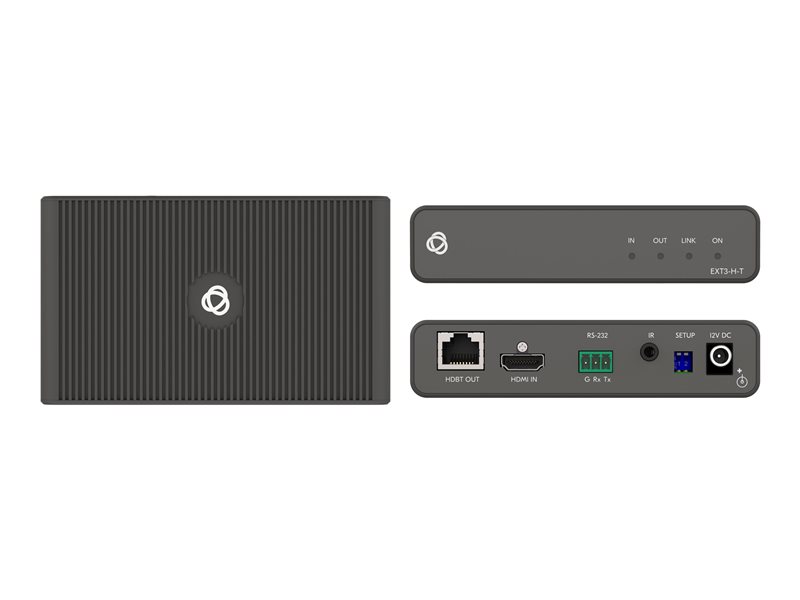

Video/audio/infrared/serial extender - transmitter - HDBaseT 3.0, HDMI, RS-232 - over CATx - up to 230 ft - 1U
| Main Specifications | |
|---|---|
| Product Description | Kramer EXT3-H-T - video/audio/infrared/serial extender - HDBaseT 3.0, HDMI, RS-232 |
| Device Type | Video/audio/infrared/serial extender (transmitter) |
| Form Factor | Desktop / rack mountable - 1U |
| Data Transfer Rate | 18 Gbps |
| Data Link Protocol | HDBaseT 3.0, HDMI, RS-232 |
| Transmission Medium | CATx |
| Max Transfer Distance | 230 ft |
| Power | DC 12 V |
| Dimensions (WxDxH) | 4.7 in x 2.8 in x 1 in |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Video/audio/infrared/serial extender (transmitter) |
| Form Factor | Desktop / rack mountable - 1U |
| Expansion / Connectivity | |
| Interfaces | 1 x HDMI - 19 pin HDMI Type A female ¦ 1 x HDBaseT - RJ-45 female ¦ 1 x RS-232 - 3 pin terminal block ¦ 1 x IR - mini jack female |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Included Accessories | Mounting brackets |
| Compliant Standards | RoHS, WEEE, UL |
| Networking | |
| Connectivity Technology | Wired |
| Data Link Protocol | HDBaseT 3.0, HDMI, RS-232 |
| Data Transfer Rate | 18 Gbps |
| Max Transfer Distance | 230 ft |
| Status Indicators | Input, link, output |
| Features | HDR10 support, 4K60Hz support, 2K resolution support, 3D support, Deep Color support, Dolby TrueHD support, DTS-HD support, uncompressed audio, x.v.Color support, bidirectional, fanless, firmware upgradable, built-in DIP switch, 1080p/60 resolution support, aluminum housing |
| Compliant Standards | HDCP 2.3 |
| Power | |
| Power Device | External power adapter |
| Voltage Required | DC 12 V |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% RH (non-condensing) |
| Dimensions & Weight | |
| Width | 4.7 in |
| Depth | 2.8 in |
| Height | 1 in |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 6.2 in |
| Shipping Depth | 4.7 in |
| Shipping Height | 3.4 in |
| Shipping Weight | 24.69 oz |
