Hub - L2+ - managed - 24 x 10/100/1000 (PoE+) + 4 x 1 Gigabit SFP - rack-mountable - PoE+ (370 W)
| Main Specifications | |
|---|---|

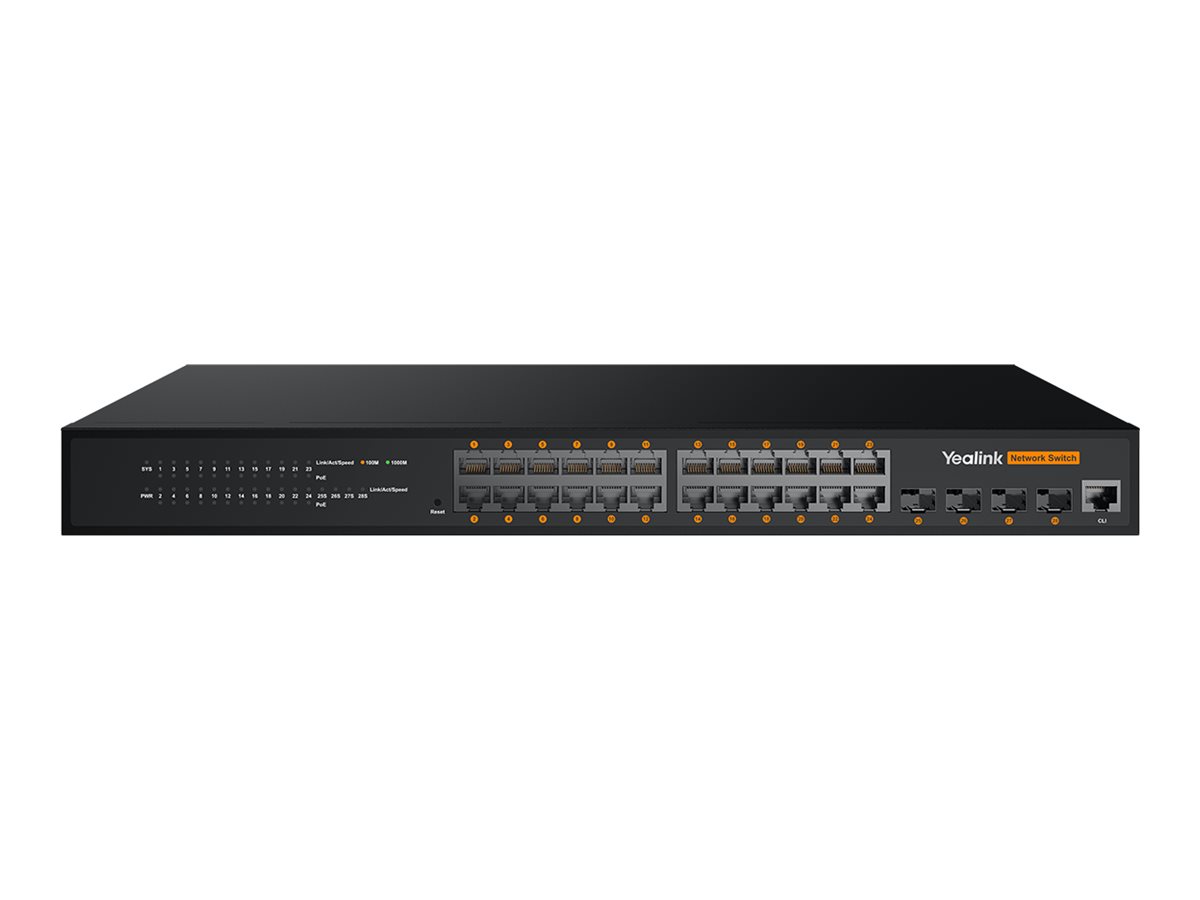

| Product Description | Yealink RCH240 - hub - 24 ports - managed - rack-mountable |
| Device Type | Hub - 24 ports - L2+ - managed |
| Enclosure Type | Rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 24 x 10/100/1000 (PoE+) + 4 x 1 Gigabit SFP |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 370 W |
| Performance | Switching capacity: 56 Gbps ¦ Packet forwarding rate: 42 Mpps |
| Capacity | VLAN entries: 4000 |
| Routing Protocol | STP, RSTP, MSTP, IGMPv2, IGMPv3 |
| Remote Management Protocol | CLI |
| Features | EEE, IGMP snooping, AES67 audio network, Dante audio network, GVRP, Private VLAN, QinQ VLAN, Voice VLAN, BPDU protection, root protection, loop protection, IGMP fast leave, DSCP support, WRR, QoS, reset button |
| Compliant Standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w |
| Dimensions (WxDxH) | 17.3 in x 8.2 in x 1.7 in |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Hub - 24 ports - L2+ - managed |
| Enclosure Type | Rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 24 x 10/100/1000 (PoE+) + 4 x 1 Gigabit SFP |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 370 W |
| Performance | Switching capacity: 56 Gbps ¦ Packet forwarding rate: 42 Mpps |
| Capacity | VLAN entries: 4000 |
| Routing Protocol | STP, RSTP, MSTP, IGMPv2, IGMPv3 |
| Remote Management Protocol | CLI |
| Features | EEE, IGMP snooping, AES67 audio network, Dante audio network, GVRP, Private VLAN, QinQ VLAN, Voice VLAN, BPDU protection, root protection, loop protection, IGMP fast leave, DSCP support, WRR, QoS, reset button |
| Compliant Standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w |
| Built-in Devices | 2 x fans |
| Status Indicators | System, power, link/activity/speed, PoE |
| Expansion / Connectivity | |
| Interfaces | 24 x 10/100/1000 Base-T (PoE+) RJ-45 ¦ 4 x 1000Base-X SFP ¦ 1 x management RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Compliant Standards | Plug and Play |
| Power | |
| Power Device | Internal power supply |
| Environmental Parameters | |
| Min Operating Temperature | 14 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 10 - 90% RH (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 167 °F |
| Humidity Range Storage | 5 - 95% RH (non-condensing) |
| Dimensions & Weight | |
| Width | 17.3 in |
| Depth | 8.2 in |
| Height | 1.7 in |
