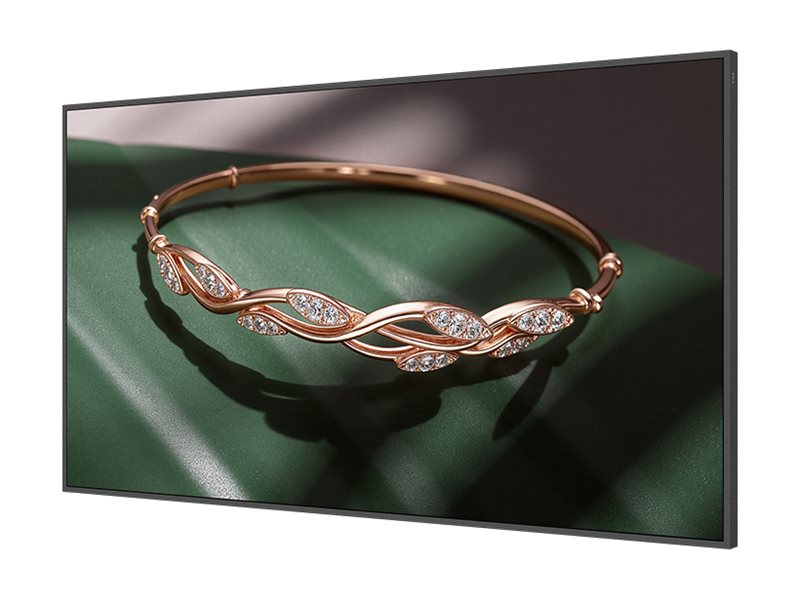

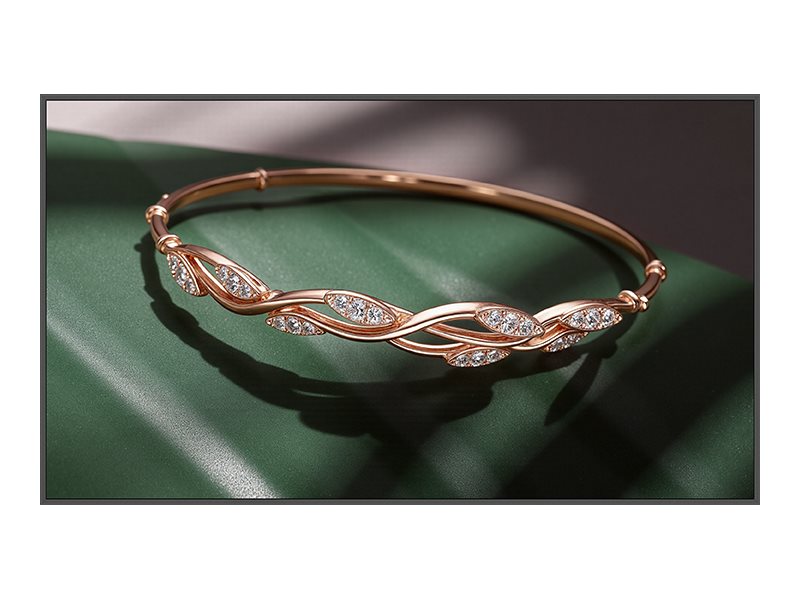

43" Diagonal Class TMN Series LED-backlit LCD display - digital signage - Android - 4K UHD (2160p) 3840 x 2160 - black
| Main Specifications | |
|---|---|
| Product Description | TCL TM43N TMN Series - 43" LED-backlit LCD display - 4K - for digital signage |
| Product Type | LED-backlit LCD flat panel display |
| Diagonal Class | 43" |
| Commercial Use | Yes - digital signage |
| Color | Black |
| Platform | Android |
| Resolution | 3840 x 2160 |
| Display Format | 4K UHD (2160p) |
| Frame Rate & Enhancement Technology | 60 Hz Refresh Rate |
| Video Interface | HDMI |
| HDMI Ports Qty | 2 ports |
| Connectivity | Bluetooth, Wi-Fi, LAN |
| PC Interface | DisplayPort |
| LCD Backlight Technology | E-LED backlight |
| Image Aspect Ratio | 16:9 |
| TV Tuner | No tuner |
| Commercial Features | Content management software (CMS) compatible |
| Picture Enhancements | 93% DCI-P3 color gamut |
| Speaker System | 2 speakers |
| Storage Capacity | 32 GB |
| USB | 2 ports |
| Included Accessories | Remote control |
| Voltage | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 108 Watt |
| Power Consumption Stand by | 0.5 Watt |
| Dimensions (WxDxH) | 37.9 in x 1.1 in x 21.7 in |
| Weight | 28.66 lbs |
| Environmental Standards | ENERGY STAR Qualified |
| General | |
| Product Type | LED-backlit LCD flat panel display |
| Power Consumption (Max) | 130 Watt |
| Power Consumption Operational | 108 Watt |
| Diagonal Class | 43" |
| Commercial Use | Yes - digital signage |
| Series | TMN Series |
| Platform | Android |
| Operating System | Android OS 13.0 |
| TV Tuner | No tuner |
| TV Tuner Presence | No |
| Video Interface | HDMI |
| HDMI Ports Qty | 2 ports |
| PC Interface | DisplayPort |
| Modes | Landscape mode, portrait mode |
| Picture Enhancements | 93% DCI-P3 color gamut |
| Width | 37.9 in |

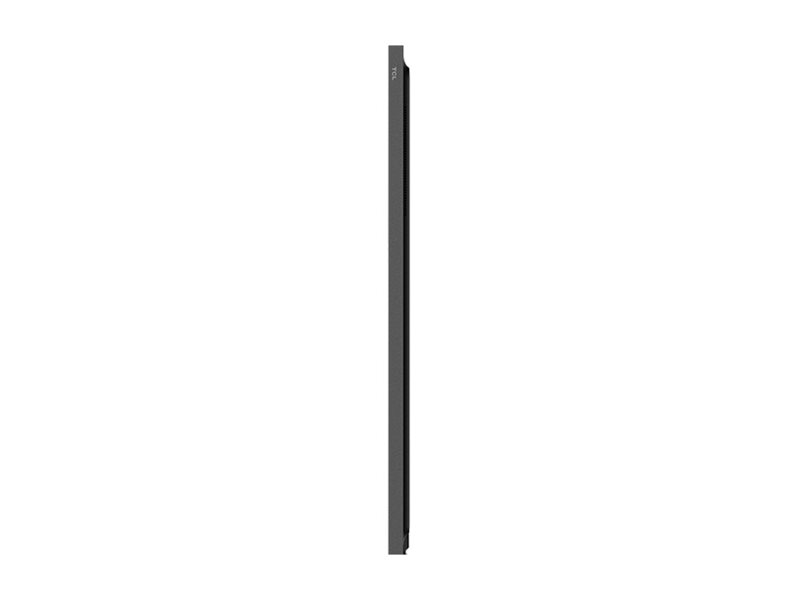

| Depth | 1.1 in |
| Height | 21.7 in |
| Weight | 28.66 lbs |
| Enclosure Color | Black |
| Miscellaneous | |
| Compliant Standards | IP5X, CB, FCC SDOC, IC, VOC, UL 4200A, SDDPI, CP65, EMC Class B, Safety 62368-1, ISO 27701, ISO 27001 |
| Power | |
| Power Device | Power supply |
| Input Voltage | AC 100-240 V (50/60 Hz) |
| Power Consumption Stand by | 0.5 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 20 - 80% |
| Display | |
| Resolution | 3840 x 2160 |
| Display Format | 4K UHD (2160p) |
| Image Aspect Ratio | 16:9 |
| Frame Rate & Enhancement Technology | 60 Hz Refresh Rate |
| LCD Backlight Technology | E-LED backlight |
| Coating | 25% haze |
| Image Contrast Ratio | 4000:1 |
| Brightness | 500 cd/m² |
| Viewing Angle | 178° |
| Viewing Angle (Vertical) | 178° |
| Backlight Life | 50,000 hour(s) |
| Commercial Features | Content management software (CMS) compatible |
| Operation Hours / Days | 24 / 7 |
| Connections | |
| Connector Type | 2 x HDMI input ¦ DisplayPort input ¦ USB 3.0 ¦ USB 2.0 ¦ Audio output ¦ RS-232 input ¦ RS-232 output ¦ Infrared input ¦ LAN |
| Remote Control | |
| Type | Remote control |
| Audio System | |
| Speaker System | 2 speakers |
| Output Power / Total | 20 Watt |
| Speakers | 2 x main channel speaker - 10 Watt |
| Dimensions & Weight (Shipping) | |
| Width (Shipping) | 42.3 in |
| Depth (Shipping) | 4.8 in |
| Height (Shipping) | 25.4 in |
| Weight (Shipping) | 33.07 lbs |
| Network & Internet Multimedia | |
| Connectivity | Bluetooth, Wi-Fi, LAN |
| LAN Protocol | Ethernet |
| Wi-Fi Protocol | 802.11ac, 802.11b, 802.11g, 802.11n |
| Bluetooth Version | Bluetooth 5.1 |
| Stands & Mounts | |

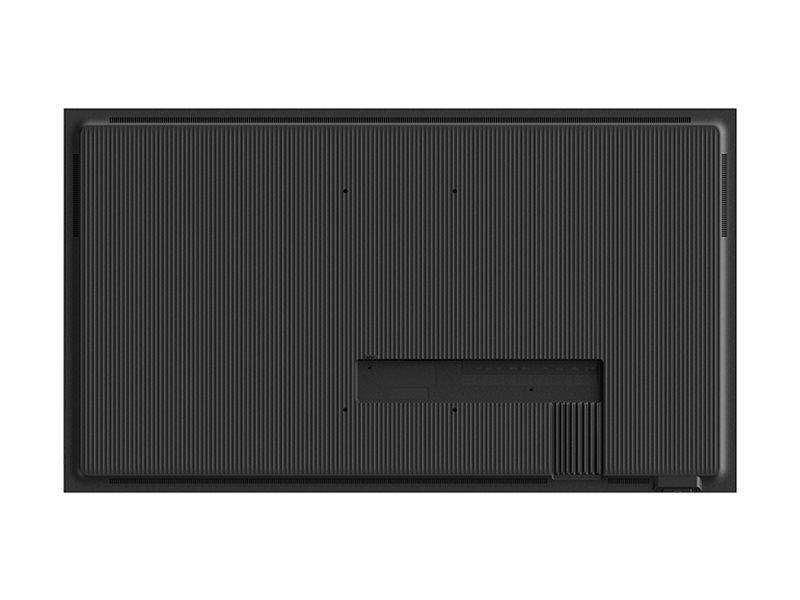

| Flat Panel Mount Interface | 300 x 300 mm |
| VESA Compatibility | Yes |
| Media Player | |
| Supported Video Formats | AV1, H.265, VP9, AVS2, H.264, MPEG-4, WMV, AVS, MPEG-2, MPEG-1 |
| USB Port | Yes |
| USB Ports Qty | 2 |
| Configuration | ARM Cortex-A55 Quad-Core - 4 GB - 32 GB |
| Sustainability Information | |
| ENERGY STAR Certified | Yes |
| ENERGY STAR Version | 8.0 |
