Motherboard - micro ATX - LGA1718 Socket - AMD X600 Chipset - USB 3.2 Gen 1 - 2 x Gigabit LAN - onboard graphics
| Main Specifications | |
|---|---|

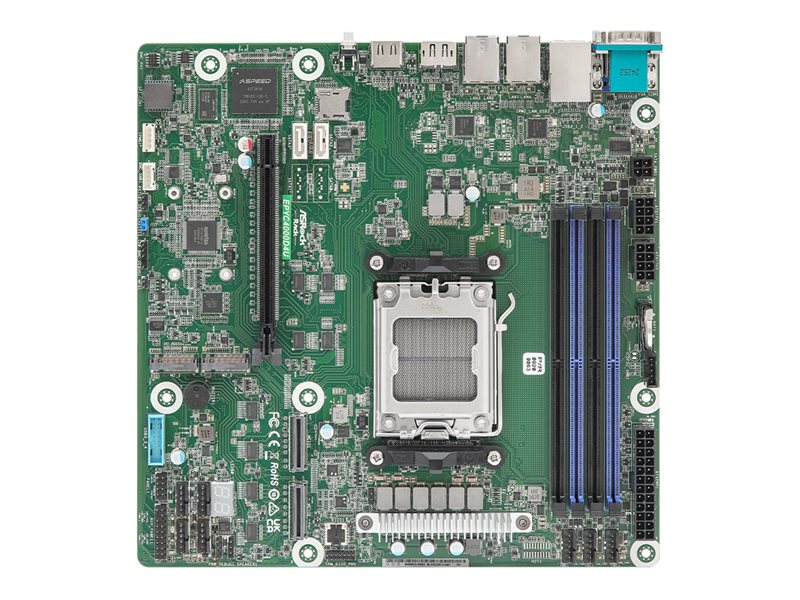

| Product Description | ASRock Rack EPYC4000D4U - motherboard - micro ATX - LGA1718 Socket - AMD X600 |
| Product Type | Motherboard - micro ATX |
| Chipset Type | AMD X600 |
| Processor Socket | 1 x LGA1718 Socket |
| Compatible Processors | EPYC, Ryzen |
| Max RAM Size | 48 GB |
| RAM Supported | 4 DIMM slots - DDR5, ECC, non-ECC, unbuffered |
| Storage Ports | 2 x MCIO, 2 x SATA-600, 2 x M.2 |
| USB / FireWire Ports | 2 x USB 3.2 Gen 1 |
| Graphics | ASPEED AST2600 |
| LAN | 2 x Gigabit Ethernet |
| General | |
| Product Type | Motherboard - micro ATX |
| Chipset Type | AMD X600 |
| Processor Socket | LGA1718 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | EPYC, Ryzen |
| Expansion / Connectivity | |
| Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 2 x M.2 socket (2242/2280 M.2 Key M slot) ¦ 1 x PCIe 5.0 x16 |
| Storage Interfaces | ASMedia ASM1061: SATA-600 -connectors: 2 x 7pin Serial ATA ¦ PCIe 5.0 -connectors: 2 x M.2 |
| Interfaces | 1 x VGA ¦ 2 x USB 3.2 Gen 1 ¦ 1 x IPMI ¦ 2 x LAN (Gigabit Ethernet) ¦ 1 x HDMI ¦ 1 x DisplayPort |
| Internal Interfaces | 1 x speaker - header ¦ 1 x SPI - header |
| Power Connectors | 24-pin main power connector, 2 x 8-pin ATX12V connectors |
| Miscellaneous | |
| Width | 9.6 in |
| Depth | 9.6 in |
| Features | |
| BIOS Type | AMI |
| BIOS Features | ACPI 6.4 support, SMBIOS 3.5 support |
| Hardware Monitoring | CPU core temperature, CPU fan tachometer, fan control, system voltage |
| LAN | |
| Network Controller | 2 x Intel I210 |
| Network Interfaces | 2 x Gigabit Ethernet |
| Graphics | |
| Graphics Controller | ASPEED AST2600 |
| Supported RAM | |
| Max Size | 48 GB |
| Technology | DDR5 |
| Bus Clock | 5600 MHz, 3600 MHz |
| Supported RAM Integrity Check | ECC, non-ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture |
