Motherboard - ATX - Socket AM5 - AMD X870 Chipset - USB4, USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen 2x2 - 10 Gigabit LAN, 5 Gigabit Ethernet, Wi-Fi 7, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel)
| Main Specifications | |
|---|---|

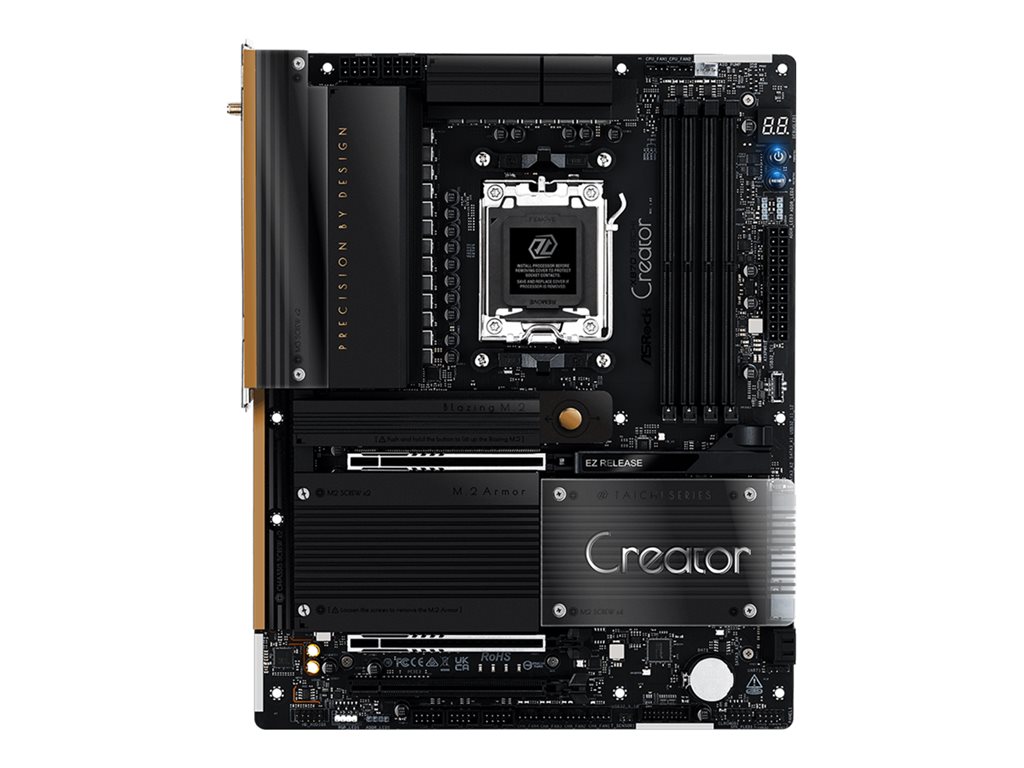

| Product Description | ASRock X870 TAICHI CREATOR - motherboard - ATX - Socket AM5 - AMD X870 |
| Product Type | Motherboard - ATX |
| Chipset Type | AMD X870 |
| Processor Socket | 1 x Socket AM5 |
| Compatible Processors | Ryzen (supports Ryzen 7000/8000/9000 Series) |
| Max RAM Size | 256 GB |
| RAM Supported | 4 DIMM slots - DDR5, non-ECC, ECC, unbuffered |
| Storage Ports | 4 x SATA-600 (RAID), 1 x Hyper M.2, 2 x Blazing M.2, 1 x Ultra M.2 |
| USB / FireWire Ports | 2 x USB4 + 2 x USB 3.2 Gen 2 + 6 x USB 3.2 Gen 1 + 2 x USB 2.0 + (1 x USB-C 3.2 Gen 2x2 + 4 x USB 3.2 Gen 1 + 6 x USB 2.0 via headers) |
| Audio | HD Audio (8-channel) |
| LAN | 10 Gigabit Ethernet, 5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4 |
| General | |
| Product Type | Motherboard - ATX |
| Chipset Type | AMD X870 |
| Processor Socket | Socket AM5 |
| Max Processors Qty | 1 |
| Compatible Processors | Ryzen (supports Ryzen 7000/8000/9000 Series) |
| Expansion / Connectivity | |
| Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 2 x PCIe 5.0 x16 ¦ 1 x PCIe 3.0 x16 (x4 mode) ¦ 1 x M.2 socket (Key E) ¦ 4 x M.2 socket (2280 M.2 Key M slot) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 4.0 -connectors: 1 x Hyper M.2 - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 5.0 -connectors: 1 x Blazing M.2 - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 4.0 -connectors: 1 x Blazing M.2 - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 3.0 -connectors: 1 x Ultra M.2 - RAID 0 / RAID 1 / RAID 10 |
| Interfaces | 2 x antenna ¦ 1 x HDMI ¦ 2 x USB4 ¦ 2 x USB 3.2 Gen 2 ¦ 6 x USB 3.2 Gen 1 ¦ 2 x USB 2.0 ¦ 1 x LAN (5Gigabit Ethernet) ¦ 1 x LAN (10Gigabit Ethernet) ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x SPDIF out |
| Internal Interfaces | 6 x USB 2.0 - header ¦ 4 x USB 3.2 Gen 1 - header ¦ 1 x USB-C 3.2 Gen 2x2 - header ¦ 1 x audio - header |
| Power Connectors | 24-pin main power connector, 2 x 8-pin ATX12V connectors |
| Miscellaneous | |
| Included Accessories | ASRock WiFi 2.4/5/6 GHz antenna, 1 to 2 ARGB LED splitter cable, thermistor cable |
| Cables Included | 4 x Serial ATA cable |
| Software Included | ASRock A-Tuning, ASRock Polychrome SYNC |
| Compliant Standards | ErP Ready, EuP Ready, FCC |
| Width | 12 in |
| Depth | 9.6 in |
| Audio | |
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALC4082 |
| Compliant Standards | High Definition Audio |
| Features | |
| BIOS Type | AMI |
| BIOS Features | UEFI BIOS |
| Hardware Features | 18+2+1 Phase Power Design, Enlarged Heatsink Armor, pre-mounted I/O shield, 20K black capacitors, BIOS FlashBack button, ASRock Auto Driver Installer, ASRock Polychrome RGB, ASRock EZ Mode, ASRock Full HD UEFI, ASRock Instant Flash, 80A Smart Power Stage, Nahimic Audio Enhacer, 8 Layer PCB, chipset heatsink, enlarged M.2 heatsink, DIY Friendly Design, anti-drop M.2 heatsink screw |
| LAN | |
| Network Controller | Realtek RTL8126 / Marvell (Aquantia) AQC113 |
| Network Interfaces | 10 Gigabit Ethernet, 5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4 |
| Supported RAM | |
| Max Size | 256 GB |
| Technology | DDR5 |
| Bus Clock | 8000 MT/s (O.C.) |
| Supported RAM Integrity Check | Non-ECC, ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, AMD EXPO technology, Intel Extreme Memory Profiles (XMP) |
