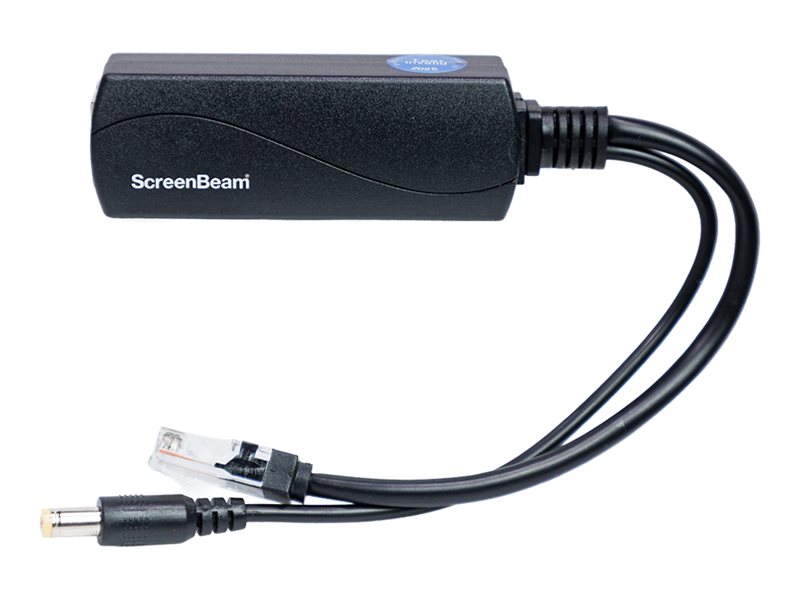

PoE splitter - DC 42.5 - 57 V - output connectors: 1
| Main Specifications | |
|---|---|
| Product Description | ScreenBeam PS5712BG - PoE splitter |
| Device Type | PoE splitter - external |
| Power Over Ethernet (PoE) | PoE+ |
| Weight | 5.29 oz |
| Input Voltage | DC 42.5 - 57 V |
| Output Voltage | DC 12 V |
| Input Connectors | RJ-45 |
| Output connectors | 1 x RJ-45 ¦ 1 x power DC jack 5.5 mm (ID: 2.1 mm) |
| Dimensions (WxDxH) | 10.8 in x 1.1 in x 0.9 in |
| General | |
| Device Type | PoE splitter - external |
| Power Over Ethernet (PoE) | PoE+ (IEEE 802.3at) |
| Expansion / Connectivity | |
| Interfaces | 1 x 1/2.5 Gigabit LAN - RJ-45 |
| Miscellaneous | |
| Cables Included | Power cable - integrated ¦ Network cable - integrated |
| Features | LED indicators |
| Compliant Standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt |
| Environmental Parameters | |
| Min Operating Temperature | -4 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Power Device | |
| Input Voltage | DC 42.5 - 57 V |
| Input Connectors | RJ-45 |
| Power Output Connectors Details | 1 x RJ-45 ¦ 1 x power DC jack 5.5 mm (ID: 2.1 mm) |
| Output Voltage | DC 12 V |
| Dimensions & Weight | |
| Width | 10.8 in |
| Depth | 1.1 in |
| Height | 0.9 in |
| Weight | 5.29 oz |
