Fiber media converter - 10GbE - over fiber optic - 10GBase-LR, 10GBase-SR, 10GBase-X, 10GBase-T - SFP+ / RJ-45 - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | Startech - fiber media converter - 10GbE - TAA Compliant |
| Device Type | Fiber media converter - SFP+ / RJ-45 |
| Form Factor | Wall / rack / DIN rail mountable |
| Cabling Type | 10GBase-LR, 10GBase-SR, 10GBase-X, 10GBase-T |
| Data Transfer Rate | 10 Gbps |
| Data Link Protocol | 10GbE |
| Transmission Medium | Fiber optic |
| Power | AC 100-240 V |
| Dimensions (WxDxH) | 3.7 in x 2.8 in x 1 in |
| Weight | 7.62 oz |
| TAA Compliant | Yes |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | Fiber media converter |
| Form Factor | Wall / rack / DIN rail mountable |
| Expansion / Connectivity | |

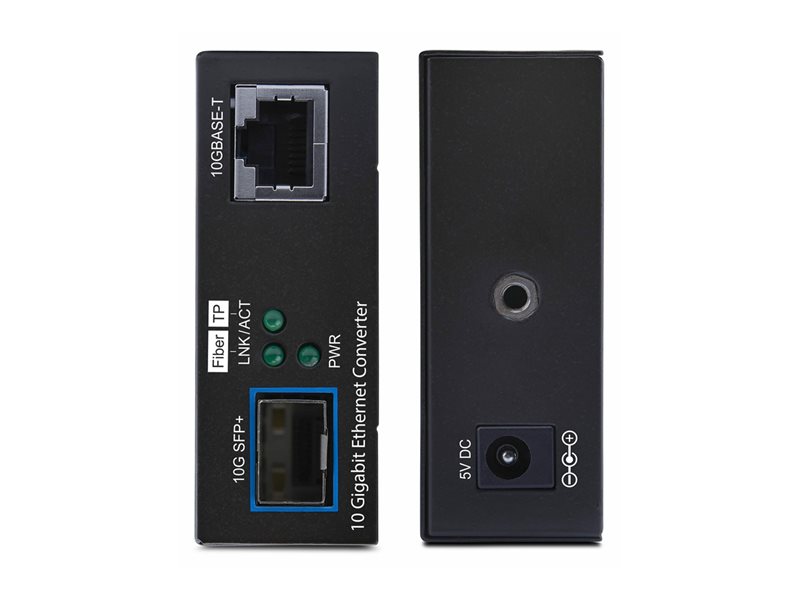

| Interfaces | 1 x Ethernet 10GBase-X - SFP+ female ¦ 1 x Ethernet 10GBase-T - RJ-45 female |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |

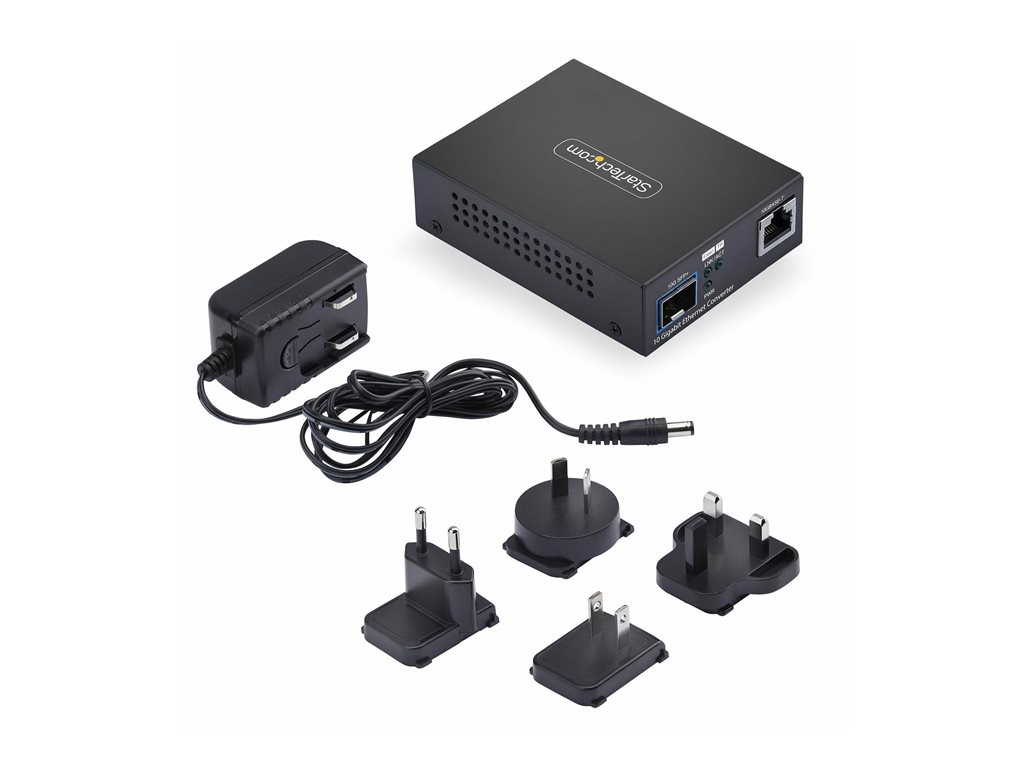

| Included Accessories | Power adapter |
| MTBF | 50,000 hours |
| Compliant Standards | Plug and Play, FCC, RoHS, WEEE |
| TAA Compliant | Yes |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 10GBase-LR, 10GBase-SR, 10GBase-X, 10GBase-T |
| Data Link Protocol | 10GbE |
| Data Transfer Rate | 10 Gbps |
| Status Indicators | Power, link/activity |
| Features | Flow control, auto-uplink (auto MDI/MDI-X), full duplex mode, 16 KB Jumbo Frame, single-mode, LED status indicators, multimode, compact |
| Compliant Standards | IEEE 802.3 |
| Power | |
| Power Device | External power adapter |
| Voltage Required | AC 100-240 V |
| Power Consumption Operational | 5.3 watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 5 - 95% RH (non-condensing) |
| Dimensions & Weight | |
| Width | 3.7 in |
| Depth | 2.8 in |
| Height | 1 in |
| Weight | 7.62 oz |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 3.7 in |
| Shipping Depth | 5.9 in |
| Shipping Height | 3.6 in |
| Shipping Weight | 14.04 oz |
