Mid tower - extended ATX - windowed side panel (tempered glass) - no power supply (ATX) - black - USB/Audio
| Main Specifications | |
|---|---|

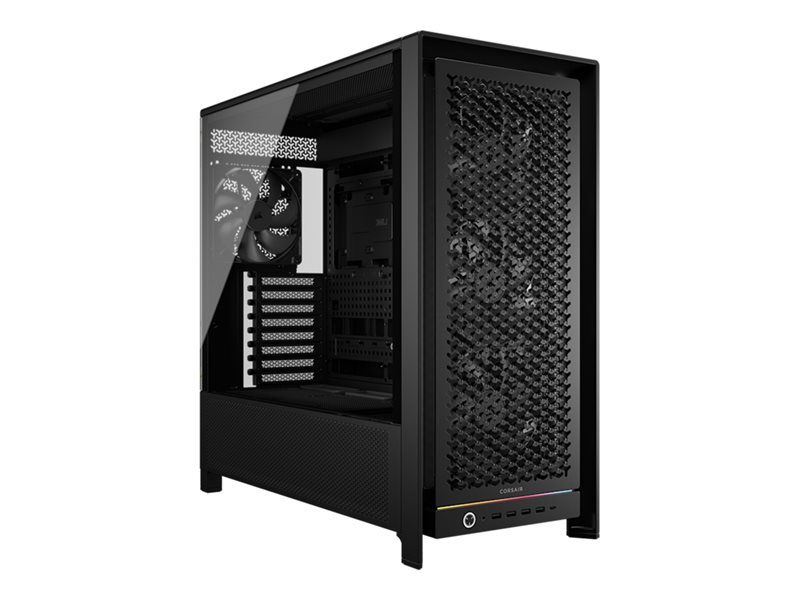

| Product Description | CORSAIR FRAME 5000D RS - mid tower - extended ATX |
| Product Type | System cabinet |
| Form Factor | Mid tower |
| Windowed Side Panel | Yes, tempered glass |
| Color | Black |
| I/O Connectors | 4 x USB 3.2 Gen 1 ¦ 1 x USB-C 3.2 Gen 2 ¦ 1 x headphone/microphone |
| Supported Motherboards | ATX, microATX, Mini-ITX, Extended ATX |
| System Cabinet Features | Support back-connect motherboard, cable management system (42 mm clearance), front dust filter, PSU dust filter, side panel dust filter, vertical/horizontal graphic card orientation, GPU anti-sag bracket |
| Power Device | No power supply (ATX) |
| Dimensions (WxDxH) | 9.8 in x 21.9 in x 21.3 in |
| Weight | 34.13 lbs |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Form Factor | Mid tower |
| Windowed Side Panel | Yes |
| Windowed Side Panel Material | Tempered glass |
| Max Mainboard Size | Extended ATX |
| Supported Motherboards | ATX, microATX, Mini-ITX, Extended ATX |
| Internal Bays Qty | 6 |
| Product Material | Tempered glass, steel, plastic |
| Color | Black |
| Cooling System | Front: 140 mm fan x 3 / 2 x 200 mm fan or 3 x 120 mm fan or 240/280/360/420 mm radiator supported ¦ Rear: 140 mm fan x 1 / 1 x 120 mm fan or 120/140 mm radiator supported ¦ Top: 120/140 mm fan mount x 3 / 240/280/360/420 mm radiator supported ¦ Side: 120/140 mm fan mount x 3 / 240/280/360 mm radiator supported ¦ PSU shroud: 120 mm fan mount x 2 |
| CPU Cooler Max Height | 175 mm |
| Video Card Max Length | 450 mm |
| System Cabinet Features | Support back-connect motherboard, cable management system (42 mm clearance), front dust filter, PSU dust filter, side panel dust filter, vertical/horizontal graphic card orientation, GPU anti-sag bracket |
| Expansion / Connectivity | |
| Expansion Bays | 2 (total) / 2 (free) x internal - 2.5" ¦ Internal - 2x2.5" / 1x3.5" shared ¦ Internal - 2x2.5" / 1x3.5" shared |
| Expansion Slots | 8 x horizontal ¦ 3 x vertical |
| Interfaces | 4 x USB 3.2 Gen 1 ¦ 1 x USB-C 3.2 Gen 2 ¦ 1 x headphone/microphone - mini-jack |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Included Accessories | 4 x RS140 fans, cable ties, screws, 16 x QuikTurn fan screws, side shroud sticker |
| Power | |
| Power Device | No power supply |
| Specification Compliance | ATX |
| Max Supported Qty | 1 |
| Dimensions & Weight | |
| Width | 9.8 in |
| Depth | 21.9 in |
| Height | 21.3 in |
| Weight | 34.13 lbs |
