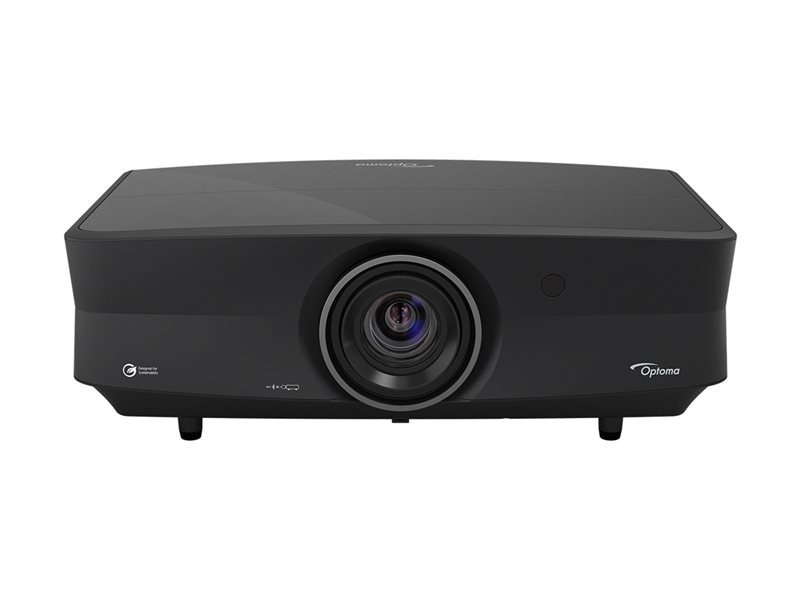

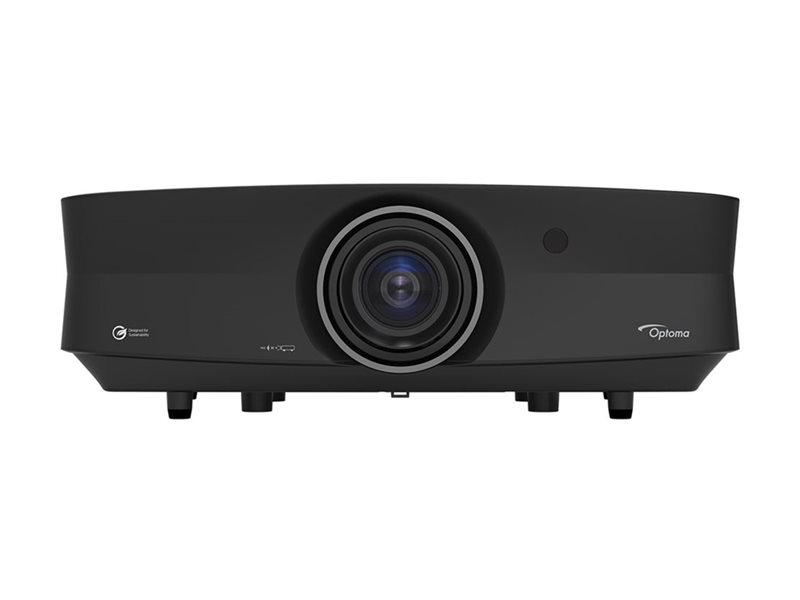

DLP projector - dual laser - 3D - 4500 lumens - 3840 x 2160 - 16:9 - 4K
| Main Specifications | |
|---|---|
| Product Description | Optoma UHZ68 - DLP projector - 3D |
| Device Type | DLP projector - 4K |
| 3D Capable | Yes |
| Brightness | 4500 lumens |
| Contrast Ratio | 2800000:1 |
| Resolution | 3840 x 2160 |
| Native Aspect Ratio | 16:9 |
| Lens Shift Direction | Horizontal, vertical |
| Lamp Type | Dual laser |
| Lamp Life Cycle | Up to 30000 hour(s) |
| Speakers | Speaker(s) - integrated |
| Power | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 345 watt |
| Dimensions (WxDxH) | 19.6 in x 13 in x 6.7 in |
| Weight | 19.2 lbs |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | DLP projector - 4K |
| 3D Capable | Yes |
| Expansion / Connectivity | |
| Interfaces | 3 x HDMI - 19 pin HDMI Type A ¦ 1 x USB (service/power) - 4 pin USB Type A ¦ 2 x USB - 4 pin USB Type A ¦ 1 x 3D Sync ¦ 1 x audio line-out - mini-phone 3.5 mm ¦ 1 x SPDIF line-out ¦ 1 x network - RJ-45 (management) ¦ 1 x serial RS-232 (management) ¦ 2 x 12V programmable trigger |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Included Accessories | CR2025 battery, power cable, remote control, USB wireless network adapter |
| Security Features | Security bar, security lock slot (cable lock sold separately), password protection |
| Security Slot Type | Kensington security slot |
| Power | |
| Power Source | AC |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 345 watt |
| Power Consumption Stand by | 0.5 watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 80% |
| Sound Emission | 31 dB |
| Sound Emission (Economic Mode) | 25 dB |
| Video Input | |
| Video Interfaces | HDMI |
| Dimensions & Weight | |
| Width | 19.6 in |
| Depth | 13 in |
| Height | 6.7 in |
| Weight | 19.2 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 26.01 lbs |
| Projector | |
| Brightness | 4500 lumens |
| Contrast Ratio | 2800000:1 |
| Image Size | 30.7 in - 301 in |
| Projection Distance | 3.3 ft - 33 ft |
| Throw Ratio | 1.2 - 1.92:1 |
| Uniformity | 85 % |
| Resolution | Ultra HD 4K - 3840 x 2160 |
| Native Aspect Ratio | 16:9 |
| Max Sync Rate (V x H) | 240 Hz x 255 kHz |
| Lamp Type | Dual laser |
| Lamp Life Cycle | Up to 30000 hour(s) |
| Controls & Adjustments | Keystone correction |
| OSD Languages | Arabic, Czech, Danish, Dutch, English, Farsi, Finnish, French, German, Greek, Hungarian, Indonesian, Italian, Japanese, Norwegian, Polish, Portuguese, Romanian, Russian, Chinese (simplified), Spanish, Swedish, Chinese (traditional), Turkish, Vietnamese |
| Features | 4:3 aspect ratio support, Enhanced Audio Return Channel (eARC), 24/7 operation, 8.5 ms input lag, Dolby Vision, PureEngine Ultra technology, HDR10+ compatibility, 95% DCI-P3 coverage, Filmmaker Mode, ISF modes, 360° projection, 4 Corner Correction, PureMotion technology, Auto Low Latency Mode, Ultra Low Latency Mode |
| Lens | |
| Zoom Type | Manual |
| Zoom Factor | 1.6x |
| Keystone Correction Direction | Horizontal, vertical |
| Vertical Keystone Correction | -30 / +30 |
| Horizontal Keystone Correction | -30 / +30 |
| Lens Shift Direction | Horizontal, vertical |
| Vertical Lens Shift | 106% / 126% |
| Horizontal Lens Shift | 10% / 10% |
| Speakers | |
| Type | Integrated |
| Sound Output Mode | Stereo |
| Output Power / Channel | 5 watt |
| Speakers | 2 x right / left channel |
