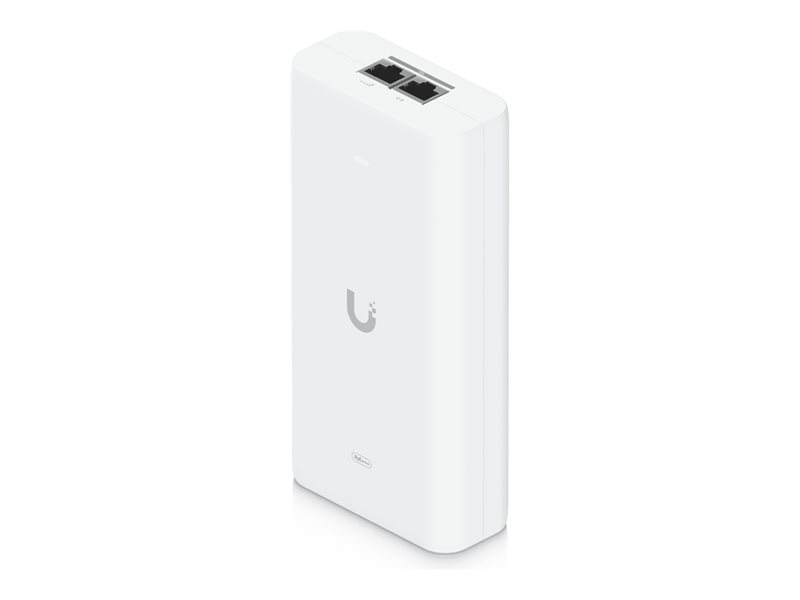

PoE injector (DIN rail mountable / wall) - 10G, PoE+++ - AC 100-240 V - 90 Watt - output connectors: 1
| Main Specifications | |
|---|---|
| Product Description | Ubiquiti UniFi - PoE injector - 10G, PoE+++ - 90 Watt |
| Device Type | PoE injector - DIN rail mountable / wall |
| Power Over Ethernet (PoE) | PoE++ |
| Weight | 13.12 oz |
| Input Voltage | AC 100-240 V |
| Output Voltage | DC 54 V |
| Power Capacity | 90 Watt |
| Input Connectors | 1 |
| Output connectors | 1 x RJ-45 1.67 A ¦ 1 x RJ-45 |
| Dimensions (WxDxH) | 2.8 in x 1.7 in x 6.5 in |
| General | |
| Device Type | PoE injector - DIN rail mountable / wall |
| Power Over Ethernet (PoE) | PoE++ (IEEE 802.3bt) |
| Expansion / Connectivity | |
| Interfaces | 1 x 10 Gigabit LAN - RJ-45 |
| Miscellaneous | |
| Features | Shielded RJ45 ports, clamping protection, 4-pair powering, LED indicators |
| Compliant Standards | IEEE 802.3bt Type 4, FCC, IC, UL, UKCA, KC, CCC, RoHS, NDAA |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 95% (non-condensing) |
| Power Device | |
| Input Voltage | AC 100-240 V |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 |
| Power Output Connectors Details | 1 x RJ-45 1.67 A ¦ 1 x RJ-45 |
| Output Voltage | DC 54 V |
| Power Capacity | 90 Watt |
| Surge Suppression | Yes |
| Surge Response Time | 1 ns |
| Clamping Level | 60 V |
| Efficiency | 88% |
| Dimensions & Weight | |
| Width | 2.8 in |
| Depth | 1.7 in |
| Height | 6.5 in |
| Weight | 13.12 oz |
