Standard - network / wireless cellular modem combo - 5G LTE - 2.5 Gigabit Ethernet - 3.4 Gbps - 1GbE, 2.5GbE
| Main Specifications | |
|---|---|

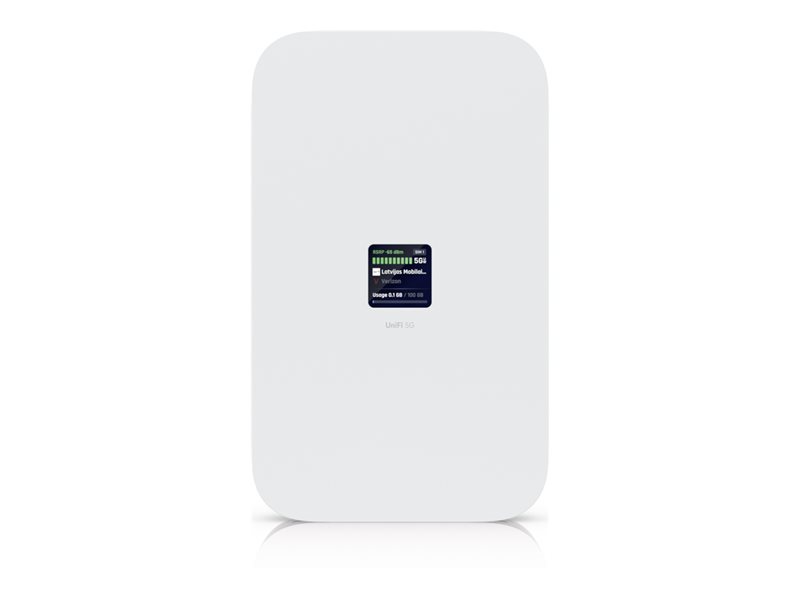

| Product Description | Ubiquiti UniFi 5G Max - Standard - network / wireless cellular modem combo - 5G LTE |
| Device Type | Network / wireless cellular modem combo - 2.5 Gigabit Ethernet |
| Form Factor | External |
| Max Transfer Rate | 3.4 Gbps |
| Cellular Protocol | 5G NR, LTE, UMTS |
| Cellular Band | UMTS B1/B2/B4/B5/B8/B19 / LTE B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B34/B38/B39/B40/B41/B42/B43/B46/B48/B66/B71 5G n1/n2/n3/n5/n7/n8/n12/n13/n14/n18/n20/n25/n26/n28/n29/n30/n38/n40/n41/n48/n66/n71/n75/n76/n77/n78/n79 |
| Networking | Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet |
| System Requirements | UniFi Network 10.0.162 or later |
| Dimensions (WxDxH) | 4.3 in x 1.3 in x 7.1 in |
| Weight | 14.46 oz |
| General | |
| Device Type | Network / wireless cellular modem combo |
| Form Factor | External |
| Built-in Devices | 1.3" touch screen display |
| Expansion / Connectivity | |
| Interfaces | 1 x 2.5GBase-T (PoE) - RJ-45 |
| Miscellaneous | |
| SIM Card Supported | Dual SIM (eSIM+nano-SIM) x 2 |
| Included Accessories | Stand, wall mount, window mount, mounting kit |
| Compliant Standards | IK04, PTCRB, GCF |
| Networking | |
| Connectivity Technology | Wireless, wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet |
| Features | Built-in touchscreen display, policy-based WAN, reset button, LED status indicator, power over Ethernet (PoE), polycarbonate/aluminum alloy housing, silicone rubber mount, HPUE (High Power User Equipment) support |
| Software / System Requirements | |
| OS Required | UniFi Network 10.0.162 or later |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Modem | |
| Bus | 2.5 Gigabit Ethernet |
| Connectivity Technology | Wireless |
| Max Transfer Rate | 3.4 Gbps |
| Cellular Band | UMTS B1/B2/B4/B5/B8/B19 / LTE B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B34/B38/B39/B40/B41/B42/B43/B46/B48/B66/B71 5G n1/n2/n3/n5/n7/n8/n12/n13/n14/n18/n20/n25/n26/n28/n29/n30/n38/n40/n41/n48/n66/n71/n75/n76/n77/n78/n79 |
| Cellular Protocol | 5G NR, LTE, UMTS |
| Antenna | Internal |
| Antenna Qty | 4 |
| Features | Wall mountable, desk mountable, window mountable |
| Dimensions & Weight | |
| Width | 4.3 in |
| Depth | 1.3 in |
| Height | 7.1 in |
| Weight | 14.46 oz |
