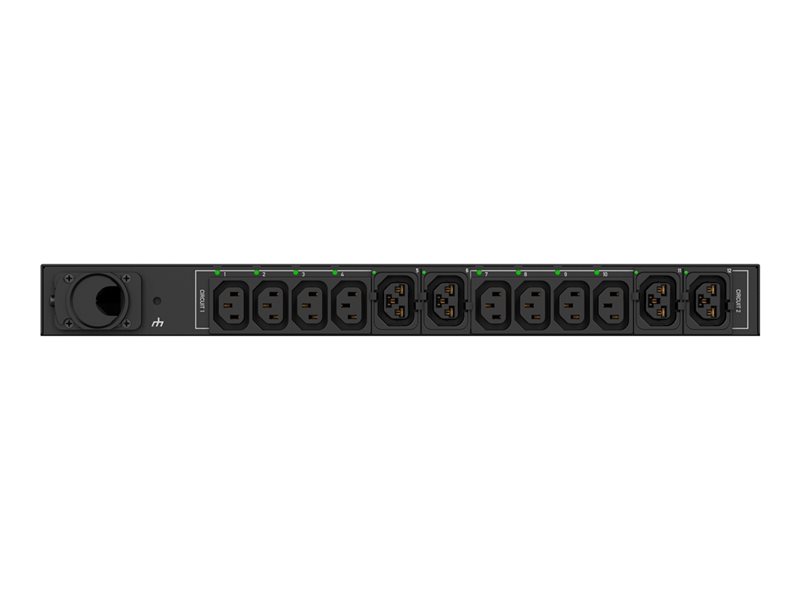

Power distribution unit (rack-mountable) - 24A - AC 208 V - 5000 VA - 1-phase - Ethernet 10/100/1000, USB - input: IEC 60309 2P+PE 6Hr - output connectors: 12 (8 x IEC 60320 C13, 4 x IEC 60320 Cx) - 1U - 10 ft cord - black
| Main Specifications | |
|---|---|
| Product Description | Raritan PX4-2289I2R-C8E8 - power distribution unit - 24A - 5000 VA |
| Device Type | Power distribution unit - rack-mountable |
| Cord Length | 10 ft |
| Rack Size | 1U |
| Weight | 8.99 lbs |
| Input Wiring | 1-phase |
| Input Voltage | AC 208 V |
| Output Voltage | AC 200-240 V |
| Power Capacity | 5000 VA |
| Power Capacity Details | 4.8 kVA at 200 V, 5.8 kVA at 240 V |
| Input Connectors | 1 x power IEC 60309 2P+PE 6Hr |
| Output connectors | 8 x power IEC 60320 C13 10 A ¦ 4 x power IEC 60320 Cx 16 A |
| Networking | Ethernet 10/100/1000, USB |
| Remote Management Protocol | HTTP, HTTPS, SNMP 3, Telnet, SNMP 2, SSH, SMTP, JSON-RPC, Modbus TCP, CLI |
| Color | Black |
| Dimensions (WxDxH) | 17.3 in x 7.2 in x 1.7 in |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 1U |
| Cord Length | 10 ft |
| Color | Black |
| Expansion / Connectivity | |
| Interfaces | 2 x management (Gigabit Ethernet) - RJ-45 ¦ 2 x USB - 4 pin USB Type A ¦ 1 x management (USB) - 4 pin USB Type B ¦ 1 x PDU link ¦ 1 x sensor - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Cables Included | Power cable 10 ft |
| Rack Mounting Kit | Included |
| Features | Powder coated, extruded aluminum housing, tool-less button mount, reset button, rear feed, voltage meter, current meter, active power meter, real power meter, energy meter, power factor meter, metering per input line, metering per branch circuit breaker, remote outlet switching, hot-swappable controller, environmental sensor ready, cascadable, LCD display, Auto-flip orientation, 16MB SPI Flash, 64MB DDR2 RAM, 16 A circuit breaker, 10kAIC breaker, 2 x J62-X0 overload protection |
| Compliant Standards | ICES-003, FCC Part 15 A, RoHS, ISO 27001 |
| Networking | |
| Remote Management Interface | Ethernet 10/100/1000, USB |
| Remote Management Protocol | HTTP, HTTPS, SNMP 3, Telnet, SNMP 2, SSH, SMTP, JSON-RPC, Modbus TCP, CLI |
| Environmental Parameters | |
| Max Operating Temperature | 140 °F |
| Humidity Range Operating | 85% |
| Power Device | |
| Input Voltage | AC 208 V |
| Input Voltage Range | AC 200 - 240 V |
| Input Wiring | 1-phase |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power IEC 60309 2P+PE 6Hr |
| Power Output Connectors Details | 8 x power IEC 60320 C13 10 A ¦ 4 x power IEC 60320 Cx 16 A |
| Output Voltage | AC 200-240 V |
| Max Electric Current | 16 A |
| Power Capacity | 5000 VA |
| Power Capacity Details | 4.8 kVA at 200 V, 5.8 kVA at 240 V |
| Circuit Protection | Circuit breaker |
| Dimensions & Weight | |
| Width | 17.3 in |
| Depth | 7.2 in |
| Height | 1.7 in |
| Weight | 8.99 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 8.2 in |
| Shipping Depth | 14.6 in |
| Shipping Height | 21.7 in |
| Shipping Weight | 14.44 lbs |
