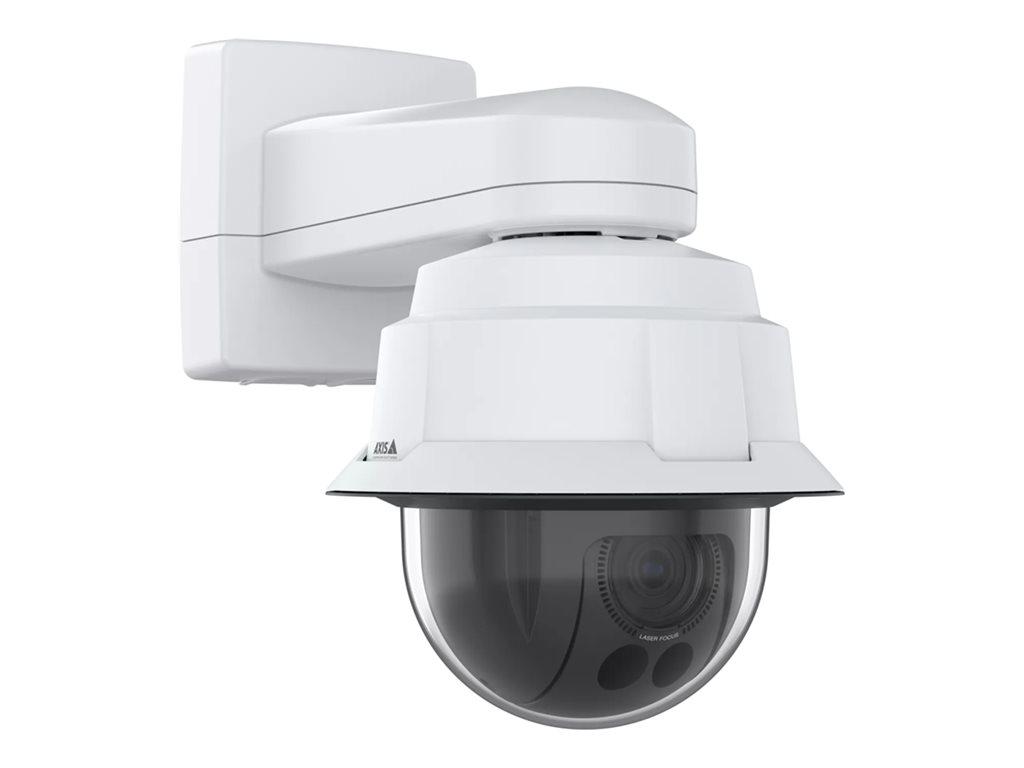

Network surveillance camera - PTZ - outdoor, indoor - vandal / weatherproof - color (Day&Night) - 3840 x 2160 - 2160p - auto iris - GbE - H.264, H.265, MPEG-4, MJPEG, HEVC - PoE Class 6 - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | AXIS Q6088-E - network surveillance camera - TAA Compliant |
| Device Type | Network surveillance camera - pan / tilt / zoom - outdoor, indoor - vandal / weatherproof |
| Color | NCS S 1002-B, white |
| Connectivity Technology | Wired |
| Camera | Color - Day&Night |
| Optical Zoom | 34 x |
| Max Resolution | 3840 x 2160 |
| Frame Rate (max) | 60 frames per second |
| Motion Detection | Yes |
| Video Modes | 2160p |
| Optical Sensor Type | PS RGB CMOS - 1/2" |
| Minimum Illumination | 0.2 lux - color - F1.7 - 30 IRE ¦ 0.08 lux - B&W - F1.7 - 30 IRE ¦ 0.3 lux - color - F1.7 - 50 IRE ¦ 0.01 lux - B&W - F1.7 - 50 IRE |
| Focal Length | 6.64 mm - 225.5 mm |
| Focus Adjustment | Automatic (min distance 10 ft) |
| Lens Iris | F/1.7-5.1 - auto iris (P-Iris) |
| Panning Range (degree) | 360 |
| Tilting Range (degree) | 0 to 90 |
| Interfaces | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Voltage | PoE Class 6 |
| Features | Object analytics, AI-powered, IR-cut filter, 300 preset positions, deep learning processing unit (DLPU), low latency mode, 120 dB wide dynamic range, saturation control, contrast control, brightness control, sharpness control, white balance, day/night threshold, local contrast control, tone mapping, exposure mode, exposure zone, Defog, compression, 100 individual polygon and mosaic privacy masks, lock aperture, target aperture, license plate detection, IP address filtering, shock detection, guard tour, Pixel Counter Support, level grid, human detection, Vehicle Detection, Line Crossing Detection, object in area, time in area, crossing counter, occupancy counting, PPE detection, trigger capture, vehicle color recognition, clothing color recognition, ARTPEC-9 chipset |
| TAA Compliant | Yes |
| Manufacturer Warranty | 5-year warranty |
| Environmental Parameters (operating) | -40 °F - 149 °F; 5 - 95% RH (non-condensing) relative humidity |
| General | |
| Device Type | Network surveillance camera |
| Connectivity Technology | Wired |
| Localization | Argentina, Australia, Brazil, China, Europe, India, Japan, Korea, United Kingdom, United States |
| Expansion / Connectivity | |
| Ports | LAN/power - RJ-45 |
| Supported Memory Cards | SD Memory Card, SDHC Memory Card, SDXC Memory Card |
| Encryption Algorithm | FIPS 140 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| TAA Compliant | Yes |
| Compliant Standards | IP67, IK10, FCC, ICES, KC, VCCI, EMC, CISPR 35, CISPR 32 Class A, EN 55035, EN 55032 Class A, EN 50121-4, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, AS/NZS CISPR 32 Class A, ICES-3(A)/NMB-3(A), VCCI Class A, KS C 9835, KS C 9832 Class A, FCC Part 15 B Class A, IEC 62236-4, CAN/CSA C22.2 No. 62368-1 Third Edition, IEC/EN/UL 62368-1, IEC/EN 60825-1, AS/NZS 62368.1:2022, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529, IEC/EN 62262, ISO 21207 method B, ISO 12944-6, NEMA 250 Type 4X, NEMA TS-2 (2.2.7-2.2.9), MIL-STD-810H, NIST SP500-267, ETSI EN 303 645, BSI, BFR, CFR free, JEDEC, ECA, JS709, RoHS, EU RoHS, 2011/65/EU, 2015/863, EN IEC 6300:2018, REACH, Directive 1907/2006/EC, SCIP |
| Color | NCS S 1002-B, white |
| Power | |
| Power Requirements | PoE Class 6 |
| Power Device | 11.7 Watt |
| Software / System Requirements | |
| Software Included | AXIS Object Analytics, AXIS Image Health Analytics |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 149 °F |
| Relative Humidity (operating) | 5 - 95% RH (non-condensing) |
| Camera | |
| Type | Color - Day&Night - pan / tilt / zoom - outdoor, indoor - vandal / weatherproof |
| Digital Video Format | H.264, H.265, MPEG-4, MJPEG, HEVC |
| Max Digital Video Resolution | 3840 x 2160 |
| Motion Detection | Yes |
| Video Modes | 2160p |
| Digital Zoom | 12 |
| Exposure Range | 1/2 sec - 1/59000 sec |
| Minimum Illumination | 0.2 lux - color - F1.7 - 30 IRE ¦ 0.08 lux - B&W - F1.7 - 30 IRE ¦ 0.3 lux - color - F1.7 - 50 IRE ¦ 0.01 lux - B&W - F1.7 - 50 IRE |
| Infrared LEDs | Yes |
| Infrared Distance | 164 ft |
| Digital Video Capture Resolution | 3840 x 2160, 640 x 360 |
| Frame Rate (max) | 60 frames per second |
| Features | Object analytics, AI-powered, IR-cut filter, 300 preset positions, deep learning processing unit (DLPU), low latency mode, 120 dB wide dynamic range, saturation control, contrast control, brightness control, sharpness control, white balance, day/night threshold, local contrast control, tone mapping, exposure mode, exposure zone, Defog, compression, 100 individual polygon and mosaic privacy masks, lock aperture, target aperture, license plate detection, IP address filtering, shock detection, guard tour, Pixel Counter Support, level grid, human detection, Vehicle Detection, Line Crossing Detection, object in area, time in area, crossing counter, occupancy counting, PPE detection, trigger capture, vehicle color recognition, clothing color recognition, ARTPEC-9 chipset |
| Lens Construction | |
| Optical Zoom | 34 x |
| Focal Length | 6.64 mm - 225.5 mm |
| Lens Iris | F/1.7-5.1 auto iris (P-Iris) |
| Focus Adjustment | Automatic |
| Min Focus Distance | 10 ft |
| Horizontal Field of View (degree) | 2 - 60.8 |
| Vertical Field of View (degree) | 1.1 - 36.5 |
| Image Sensor | |
| Type | PS RGB CMOS 1/2" |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Network Protocols | IPv4, IPv6, USGv6, ICMP, HTTP, HTTP/2, HTTPS, QOS, FTP, SFTP, CIFS, SMB, SMTP, Bonjour, UPnP, SNMP 1, SNMP 2c, SNMP 3, DNS, DDNS, NTP, NTS, RTSP, RTP, SRTP, RTSPS, TCP/IP, UDP/IP, IGMP, RTCP, DHCP, ARP, SSH, NTCIP, LLDP, CDP, MQTT, Syslog, Zeroconf |
| Panning | |
| Range (degree) | 360 |
| Speed (degree/sec) | Up to 500 |
| Tilting | |
| Range (degree) | 0 to 90 |
| Speed (degree/sec) | Up to 500 |
