Switch - L3 - managed - 36 x Gigabit SFP + 12 x 1 Gigabit / 10 Gigabit SFP+ + 2 x 40/100 Gigabit QSFP+ - front to back airflow - rack-mountable - with 5 years Remote Support
| Main Specifications | |
|---|---|

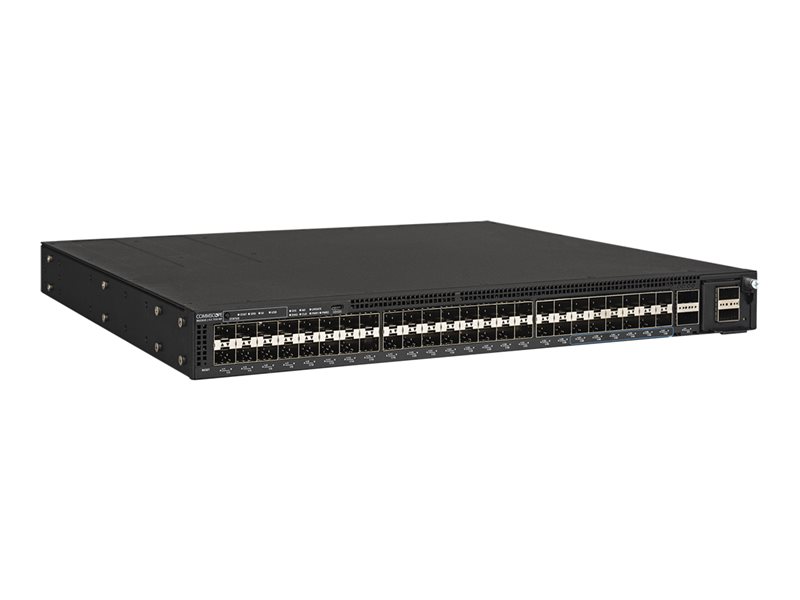

| Product Description | Ruckus ICX 7550-48F - switch - 48 ports - managed - rack-mountable |
| Device Type | Switch - 48 ports - L3 - managed - stackable |
| Enclosure Type | Front to back airflow rack-mountable 1U |
| Bundled Services | 5 years Remote Support |
| Subtype | 10 Gigabit Ethernet |
| Ports | 36 x Gigabit SFP + 12 x 1 Gigabit / 10 Gigabit SFP+ + 2 x 40/100 Gigabit QSFP+ |
| Performance | Switching capacity: 912 Gbps ¦ Forwarding capacity: 678 Mpps ¦ Aggregate stacking bandwidth: 2.4 Tbps |
| Capacity | Virtual interfaces (VLANs): 4095 ¦ PVLANs supported: 256 ¦ Maximum ports per trunk: 32 ¦ Trunk groups: 256 ¦ Spanning Tree Protocol instances: 512 ¦ Priority QoS queues: 48 ¦ Multicast groups: 8192 ¦ VRF instances: 128 |
| Jumbo Frame Support | 12288 bytes |
| Routing Protocol | Static IPv4 routing, RIP-1, static IPv6 routing, RIP-2, ECMP |
| Remote Management Protocol | SNMP 1, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH-2, CLI |
| Features | Auto-uplink (auto MDI/MDI-X), BPDU Guard, GVRP, IGMP snooping, MAC based VLAN, MSTP support, MVRP, Root Guard, Voice VLAN, IPG adjustment, LFS, MAC address filtering, MAC Learning Disable, MLD snooping, PVRST, PVST, PVST+, PIM-SM snooping, port mirroring, Port Loop Detection, 802.1x authentication, CoS, MAC address authentication, MACsec support, MRP support, Private VLAN, Q-in-Q tunneling, QoS, RFN, SP, UDLD, VXLAN, VSRP support, WRR, Flexible authentication, Web authentication, DHCP snooping, AAA, DoS, NDP, SCP, CoA, BOOTP support, DHCP server, DOM support, ERSPAN, NTP, OpenFlow support, PTP, RSPAN, sFlow, Syslog support, Telnet client, Telnet server, VCT technology, ACL support, SmartZone, protected ports, flow control, full duplex capability, 3 fans |
| Compliant Standards | IEEE 802.1ab (LLDP), IEEE 802.1ae, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3ba, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.3ae |
| Power | (50/60 Hz) |
| Power Redundancy | Yes |
| Dimensions (WxDxH) | 17.3 in x 16 in x 1.7 in |
| Weight | 14.15 lbs |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | Switch - 48 ports - L3 - managed - stackable |
| Bundled Services | 5 years Remote Support |
| Enclosure Type | Front to back airflow rack-mountable 1U |
| Subtype | 10 Gigabit Ethernet |
| Ports | 36 x Gigabit SFP + 12 x 1 Gigabit / 10 Gigabit SFP+ + 2 x 40/100 Gigabit QSFP+ |
| Performance | Switching capacity: 912 Gbps ¦ Forwarding capacity: 678 Mpps ¦ Aggregate stacking bandwidth: 2.4 Tbps |
| Capacity | Virtual interfaces (VLANs): 4095 ¦ PVLANs supported: 256 ¦ Maximum ports per trunk: 32 ¦ Trunk groups: 256 ¦ Spanning Tree Protocol instances: 512 ¦ Priority QoS queues: 48 ¦ Multicast groups: 8192 ¦ VRF instances: 128 |
| Jumbo Frame Support | 12288 bytes |
| Max Units In A Stack | 12 |
| Routing Protocol | Static IPv4 routing, RIP-1, static IPv6 routing, RIP-2, ECMP |
| Remote Management Protocol | SNMP 1, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH-2, CLI |
| Encryption Algorithm | AES |
| Authentication Method | RADIUS, TACACS, TACACS+, Secure Shell v.2 (SSH2) |
| Features | Auto-uplink (auto MDI/MDI-X), BPDU Guard, GVRP, IGMP snooping, MAC based VLAN, MSTP support, MVRP, Root Guard, Voice VLAN, IPG adjustment, LFS, MAC address filtering, MAC Learning Disable, MLD snooping, PVRST, PVST, PVST+, PIM-SM snooping, port mirroring, Port Loop Detection, 802.1x authentication, CoS, MAC address authentication, MACsec support, MRP support, Private VLAN, Q-in-Q tunneling, QoS, RFN, SP, UDLD, VXLAN, VSRP support, WRR, Flexible authentication, Web authentication, DHCP snooping, AAA, DoS, NDP, SCP, CoA, BOOTP support, DHCP server, DOM support, ERSPAN, NTP, OpenFlow support, PTP, RSPAN, sFlow, Syslog support, Telnet client, Telnet server, VCT technology, ACL support, SmartZone, protected ports, flow control, full duplex capability, 3 fans |
| Compliant Standards | IEEE 802.1ab (LLDP), IEEE 802.1ae, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3ba, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.3ae |
| RAM | 4 GB |
| Flash Memory | 4 GB |
| Expansion / Connectivity | |
| Interfaces | 36 x 100 / 1000Base-X SFP ¦ 12 x 1/10GBase-X SFP+ ¦ 2 x 100Gbit/40Gbit LAN QSFP+ uplink/stacking ¦ 1 x console RJ-45 ¦ 1 x console (USB) Type C ¦ 1 x 1000Base-T RJ-45 management |
| Expansion Slots | 1 (total) / 1 (free) x expansion slot |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| MTBF | 532,359 hours |
| Compliant Standards | AS/NZS 55022, CAN/CSA C22.2 No. 60950-1-07, EN 55022/CISPR 22 Class A, EN 60825-1, EN 60950-1:2006, EN 61000-3-2, EN 61000-3-3, EN 61000-4-11, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-6-1, EN 61000-6-3, EN55024, FCC Part 15 A, ICES-003, IEC 60950-1, IEC 68-2-27, IEC 68-2-32, IEC 68-2-36, IEC 68-2-6, RoHS, UL 60950-1, VCCI Class A, WEEE |
| Power | |
| Power Device | Internal power supply - hot-plug |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Power Provided | 400 Watt |
| Voltage Required | (50/60 Hz) |
| Power Consumption Operational | 166.8 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Storage | 5 - 95% (non-condensing) |
| Dimensions & Weight | |
| Width | 17.3 in |
| Depth | 16 in |
| Height | 1.7 in |
| Weight | 14.15 lbs |
