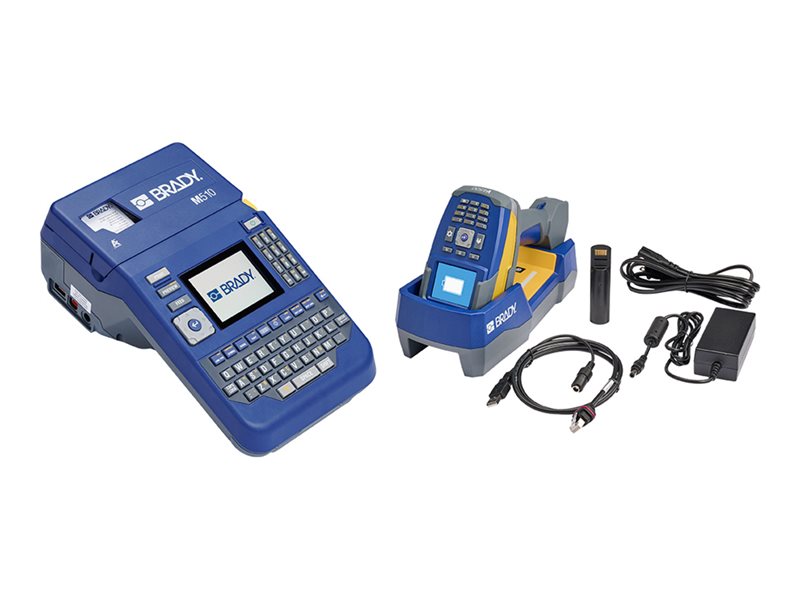

V4500 Barcode Scanner and Software - labelmaker - B/W - thermal transfer - Roll (3.81 cm) - 300 dpi - up to 90 inch/min - USB 2.0, USB host - cutter - blue, gray
| Main Specifications | |
|---|---|
| Product Description | Brady M510 - V4500 Barcode Scanner and Software - labelmaker - B/W - thermal transfer |
| Printer Type | Labelmaker - thermal transfer - B/W |
| Form Factor | Portable |
| Weight | 3.04 lbs |
| Max Media Size | Roll (3.81 cm) |
| Max Media Size (Custom) | 1.5 in |
| Print Speed | Up to 90 inch/min - max speed |
| Max Resolution (B&W) | 300 dpi |
| Cutter | Yes |
| Interface | USB 2.0, USB host |
| RAM Installed (Max) | 512 MB |
| Flash Memory Installed (Max) | 256 MB |
| Barcodes | Data Matrix, QR code, Code 128, Code 39, EAN-13, EAN-8, Interleaved 2 of 5, UPC-A, UPC-E |
| Media Type | Labels, die cut labels, continuous labels |
| Fonts | Brady Alpine, Brady Fixed Width |
| Character Sizes | 4 - 170 points |
| Keyboard | QWERTY |
| Printer Features | Maximum 1000 labels per day, Auto Power Off, Automatic Label Recognition |
| Power | AC 110-240 V |
| Battery | Nickel metal hydride Included Qty 1 |
| Enclosure Color | Blue, gray |
| Manufacturer Warranty | 2-year warranty |
| Dimensions (WxDxH) | 5.7 in x 9.4 in x 3.7 in |
| General | |
| Printer Type | Labelmaker - thermal transfer - monochrome |
| Enclosure Color | Blue, gray |
| Expansion / Connectivity | |
| Connections | USB 2.0 ¦ USB host |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Included Accessories | NiMH battery pack, USB flash drive |
| Cables Included | 1 x USB cable |
| Media Included | 1 roll Brady M5C-1500-595-WT-BK indoor/outdoor vinyl labels |
| Compliant Standards | RoHS 2011/65/EU, Directive 2015/863, FCC Class A certified |
| Printer | |
| Print Speed | Up to 90 inch/min - max speed |
| Built-in Devices | LCD display |
| Connectivity Technology | Wired |
| Interface | USB 2.0, USB host |
| Max Resolution (B&W) | 300 dpi |
| Fonts | Brady Alpine, Brady Fixed Width |
| Character Sizes | 4 - 170 points |
| Cutter | Yes |
| Keyboard | QWERTY |
| Barcodes | Data Matrix, QR code, Code 128, Code 39, EAN-13, EAN-8, Interleaved 2 of 5, UPC-A, UPC-E |
| Printer Features | Maximum 1000 labels per day, Auto Power Off, Automatic Label Recognition |
| RAM | |
| RAM Installed (Max) | 512 MB |
| Media Handling | |
| Media Type | Labels, die cut labels, continuous labels |
| Max Media Size | Roll (3.81 cm) |
| Max Media Size (Custom) | 1.5 in |
| Media Sizes | Roll (3.81 cm) |
| Max Printing Width | 1.44 in |
| Max Printing Length | 39 in |
| Power | |
| Power Device | Power adapter + battery - external |
| Voltage Required | AC 110-240 V |
| Software / System Requirements | |
| Software Included | Brady Workstation Product and Wire ID Suite |
| Environmental Parameters | |
| Min Operating Temperature | 39.2 °F |
| Max Operating Temperature | 109.4 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Battery | |
| Type | Nickel metal hydride |
| Included | 1 |
| Capacity | 1200 mAh |
| Flash Memory | |
| Flash Memory | 256 MB |
| Dimensions & Weight | |
| Width | 5.7 in |
| Depth | 9.4 in |
| Height | 3.7 in |
| Weight | 3.04 lbs |
