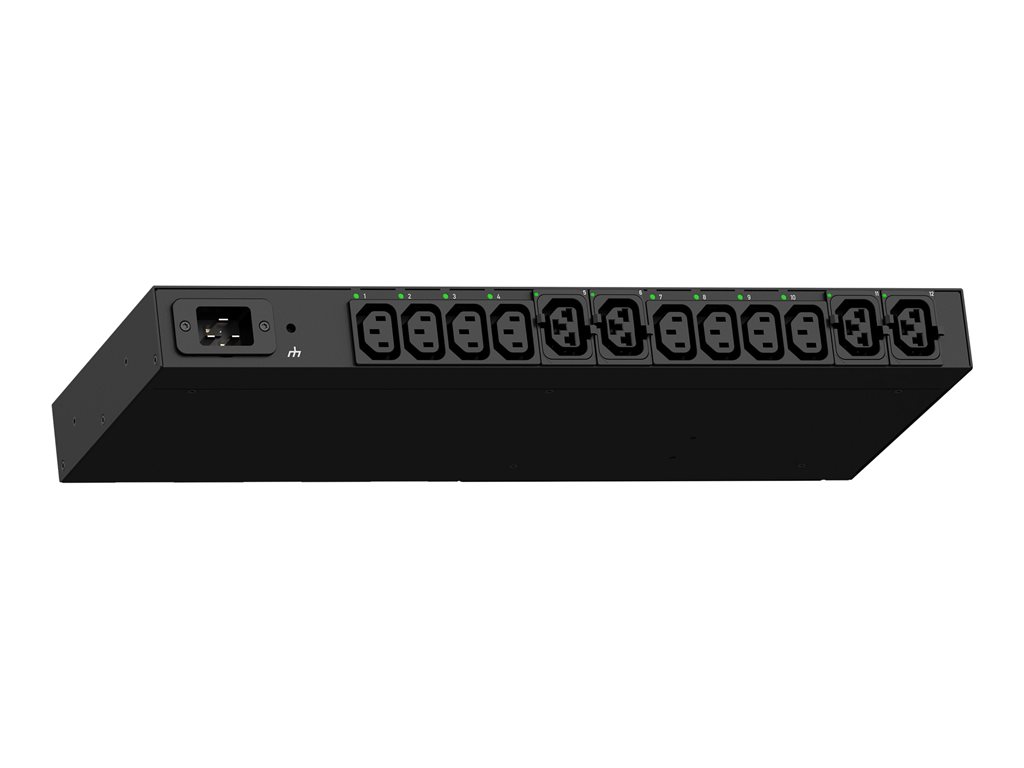

Power distribution unit (rack-mountable) - AC 240 V - 3800 VA - 1-phase - Ethernet 10/100/1000, RS-232, USB - input: IEC 60320 C20 - output connectors: 12 (8 x IEC 60320 C13, 4 x IEC 60320 Cx) - 1U - red
| Main Specifications | |
|---|---|
| Product Description | Raritan PX4-5256CR-C8E8A0 - power distribution unit - 3800 VA |
| Device Type | Power distribution unit - rack-mountable |
| Rack Size | 1U |
| Weight | 8.99 lbs |
| Input Wiring | 1-phase |
| Input Voltage | AC 240 V |
| Output Voltage | AC 100-240 V |
| Power Capacity | 3800 VA |
| Power Capacity Details | 1.6 kVA at 100 V, 3.8 kVA at 240 V |
| Input Connectors | 1 x power IEC 60320 C20 |
| Output connectors | 8 x power IEC 60320 C13 10 A ¦ 4 x power IEC 60320 Cx 16 A |
| Networking | Ethernet 10/100/1000, RS-232, USB |
| Remote Management Protocol | HTTP, HTTPS, SSH, CLI, Telnet, SNMP 3, SNMP 2, SMTP, JSON-RPC, Modbus, TCP/IP |
| Color | Red |
| Image Color Disclaimer | The displayed product image may be a different color |
| Dimensions (WxDxH) | 17.3 in x 7.2 in x 1.7 in |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 1U |
| Color | Red |
| Image Color Disclaimer | The displayed product image may be a different color |
| Expansion / Connectivity | |
| Interfaces | 2 x management (Gigabit Ethernet) - RJ-45 ¦ 2 x USB - 4 pin USB Type A ¦ 1 x management (USB) - 4 pin USB Type B ¦ 1 x PDU link - RJ-45 ¦ 1 x sensor - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Features | Extruded aluminum housing, powder-coated, voltage meter, current meter, active power meter, real power meter, energy meter, power factor meter, metering per input line, metering per branch circuit breaker, metering per output receptacle, remote outlet switching, replaceable controller, environmental sensor ready, cascadable, LCD display, Auto-Flip Current Display |
| Compliant Standards | UL, ICES-003, FCC Part 15 A, RoHS |
| Networking | |
| Remote Management Interface | Ethernet 10/100/1000, RS-232, USB |
| Remote Management Protocol | HTTP, HTTPS, SSH, CLI, Telnet, SNMP 3, SNMP 2, SMTP, JSON-RPC, Modbus, TCP/IP |
| Environmental Parameters | |
| Max Operating Temperature | 140 °F |
| Humidity Range Operating | 85% |
| Power Device | |
| Input Voltage | AC 240 V |
| Input Voltage Range | AC 100 - 240 V |
| Input Wiring | 1-phase |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power IEC 60320 C20 |
| Power Output Connectors Details | 8 x power IEC 60320 C13 10 A ¦ 4 x power IEC 60320 Cx 16 A |
| Output Voltage | AC 100-240 V |
| Max Electric Current | 16 A |
| Power Capacity | 3800 VA |
| Power Capacity Details | 1.6 kVA at 100 V, 3.8 kVA at 240 V |
| Circuit Protection | Circuit breaker |
| Dimensions & Weight | |
| Width | 17.3 in |
| Depth | 7.2 in |
| Height | 1.7 in |
| Weight | 8.99 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 21.7 in |
| Shipping Depth | 14.6 in |
| Shipping Height | 8.2 in |
