NAS server - 4 bays - SATA 6Gb/s - RAID JBOD, 0, 1, 5, 6, 10 - RAM 4 GB - 5 Gigabit Ethernet - iSCSI support
| Main Specifications | |
|---|---|

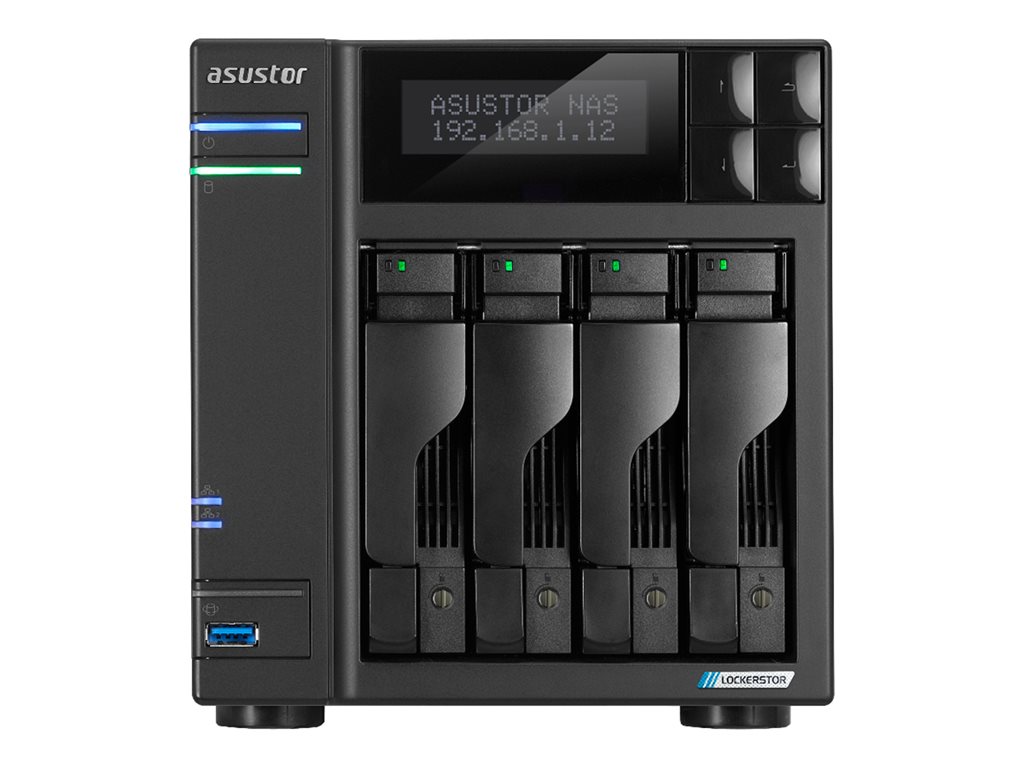

| Product Description | ASUSTOR Lockerstor 4 Gen2+ AS6704T V2 - NAS server |
| Device Type | NAS server |
| Host Connectivity | 5 Gigabit Ethernet |
| Installed Devices / Modules Qty | 0 (installed) / 4 (max) |
| Dimensions (WxDxH) | 6.7 in x 9.1 in x 7.3 in |
| Weight | 6.48 lbs () |
| Processor | 1 x Intel Celeron N5105 2 GHz (Quad-Core) |
| Storage Controller | RAID SATA 6Gb/s RAID JBOD, 0, 1, 5, 6, 10 |
| Networking | 100Mb LAN, 1GbE, 2.5GbE, 5GbE |
| Performance | Maximum iSCSI target: 256 ¦ Maximum iSCSI LUN: 256 ¦ Maximum number of users: 4096 ¦ Maximum number of groups: 512 ¦ Maximum number of shared folders: 512 ¦ Maximum concurrent connections: 512 |
| RAM | 4 GB |
| Power | AC 100-240 V |
| System Requirements | Windows 10 / 11 or later, Microsoft Windows Server 2016, Microsoft Windows Server 2019, Microsoft Windows Server 2022, Apple MacOS, UNIX, Linux, FreeBSD |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | NAS server |
| Host Connectivity | 5 Gigabit Ethernet |
| Total Storage Capacity | 0 GB |
| Installed Devices / Modules Qty | 0 (installed) / 4 (max) |
| Width | 6.7 in |
| Depth | 9.1 in |
| Height | 7.3 in |
| Weight | 6.48 lbs () |
| Built-in Devices | LED panel, 1 x 120 mm fan, IR sensor |
| Expansion / Connectivity | |
| Expansion Bays | 4 (total) / 4 (free) x hot-swap - 2.5" / 3.5" |
| Expansion Slots | 4 (total) / 4 (free) x M.2 |
| Interfaces | 2 x 5 Gigabit Ethernet - RJ-45 ¦ 2 x USB 3.2 Gen 2 - Type A ¦ 1 x HDMI output ¦ 1 x USB 2.0 - Type A |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Cables Included | 2 x CAT5E network cable |
| Features | Automatic sleep mode, Smart Fan |
| Compliant Standards | FCC, VCCI, BSMI, C-Tick, KCC, BIS, CCC, UKCA |
| Included Accessories | Power cable, 16 x flat head screws (for 2.5" HDD), 16 x flat head screws (for 3.5" HDD) |
| Networking | |
| Data Link Protocol | 100Mb LAN, 1GbE, 2.5GbE, 5GbE |
| Network / Transport Protocol | CIFS, SMB, NFS, FTP, TFTP, SFTP, HTTP, HTTPs, TCP/IP, IPv4, IPv6, DDNS |
| Remote Management Protocol | SSH, SFTP, HTTP, HTTPS, SNMP, Syslog, LDAP |
| Network Services Compatibility | Microsoft CIFS, Server Message Block 2.0 (SMB 2.0), Server Message Block 3.0 (SMB 3.0), Apple File Protocol (AFP), FTP, Web-based Distributed Authoring and Versioning (WebDAV), SFTP, DDNS, HTTP, HTTPS, Microsoft Active Directory (AD) |
| Performance | Maximum iSCSI target: 256 ¦ Maximum iSCSI LUN: 256 ¦ Maximum number of users: 4096 ¦ Maximum number of groups: 512 ¦ Maximum number of shared folders: 512 ¦ Maximum concurrent connections: 512 |
| Features | Rsync compatible, Jumbo Frames support, VLAN support, online RAID level migration, Btrfs snapshots support, USB key decryption support, target masking, LUN mapping, MPIO, persistent (SCSI-3) reservations, Disk S.M.A.R.T. Scan, scheduled bad block scans, SSD read-only Cache, SSD read-write cache, system log, connection monitoring, user quota, UPS compatible, firewall protection, E-mail alert, SMS alert, black list, white list, cloud backup, FTP backup, external backup, one-touch backup, EZ Sync, HiDrive support, UPnP Media Server, VPN client, VPN Server, RADIUS Server, SNMP server, syslog server |
| Encryption Algorithm | 256-bit AES, SSL, TLS |
| Compliant Standards | IEEE 802.3ad (LACP), UPnP |
| Power | |
| Power Device | External power adapter |
| Voltage Required | AC 100-240 V |
| Power Consumption Operational | 35 watt |
| Power Consumption Stand by | 0.88 watt |
| Power Provided | 90 watt |
| Software / System Requirements | |
| OS Required | Windows 10 / 11 or later, Microsoft Windows Server 2016, Microsoft Windows Server 2019, Microsoft Windows Server 2022, Apple MacOS, UNIX, Linux, FreeBSD |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 95% RH |
| Sound Emission | 17.6 dBA |
| Storage Controller | |
| Type | RAID |
| Interface Type | SATA 6Gb/s |
| RAID Level | JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10 |
| Processor / Memory | |
| Processors Installed | 1 x Intel Celeron N5105 2 GHz |
| Number of Cores | Quad-Core |
| Max Supported Qty | 1 |
| Max Turbo Speed | 2.9 GHz |
| RAM | 4 GB (installed) / 16 GB (supported) - DDR4 |
| Flash Memory Installed | 8 GB |
