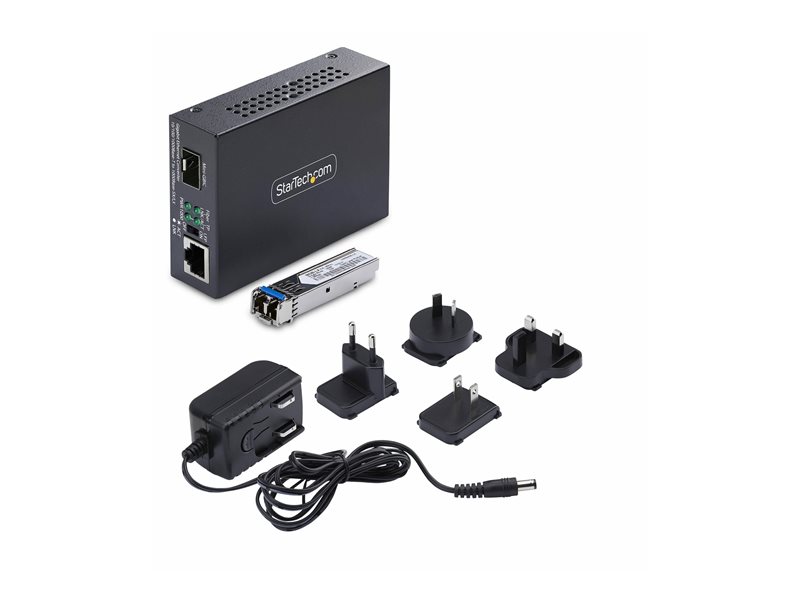

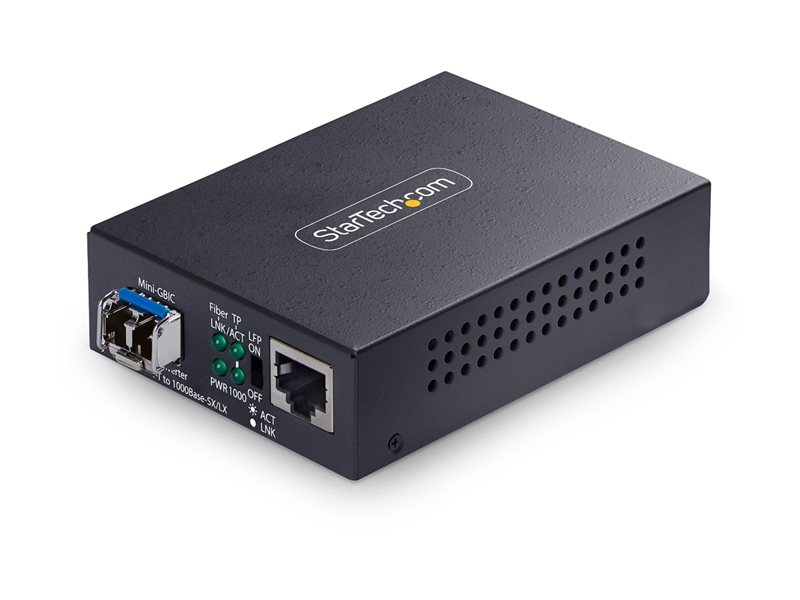

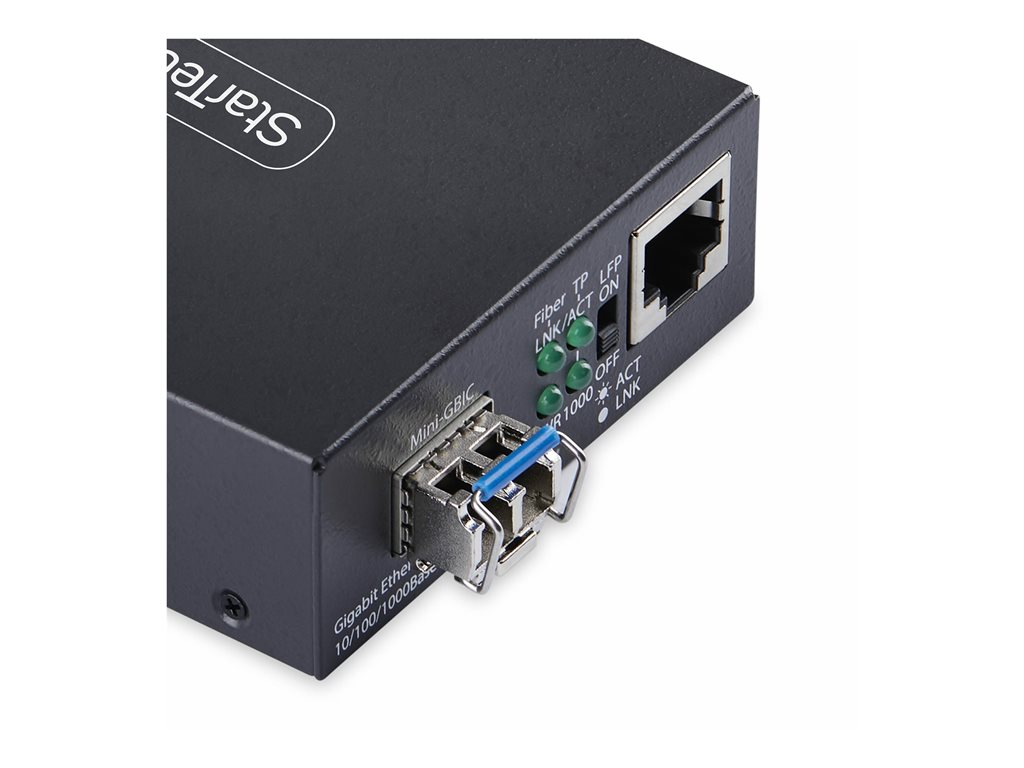

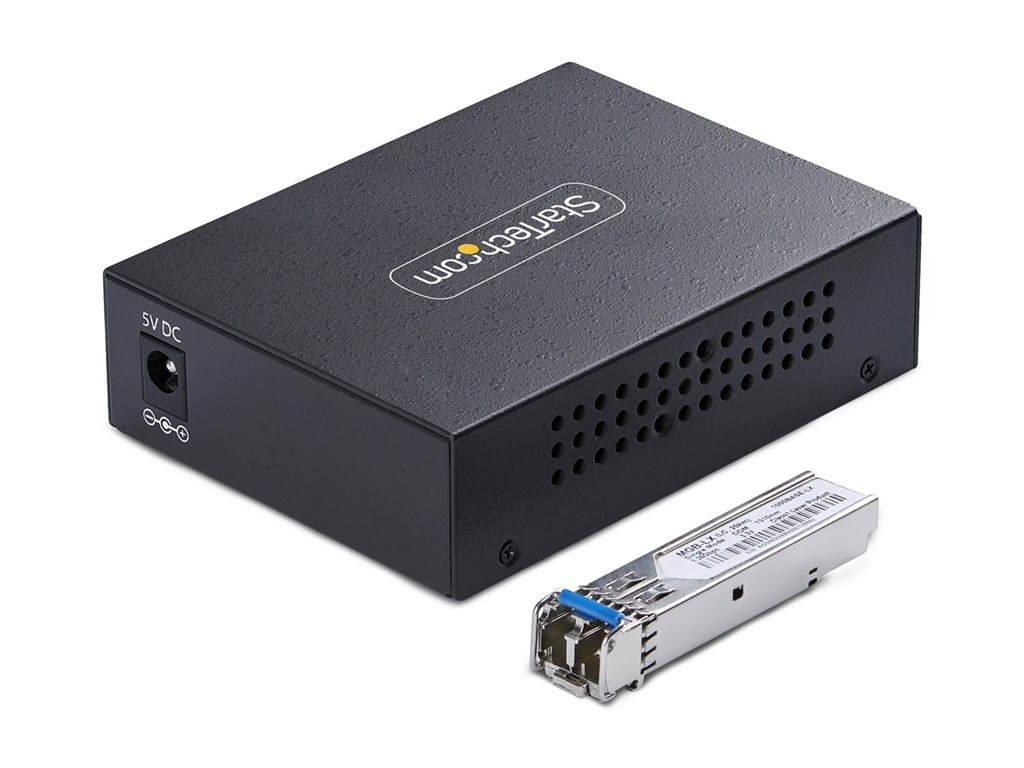

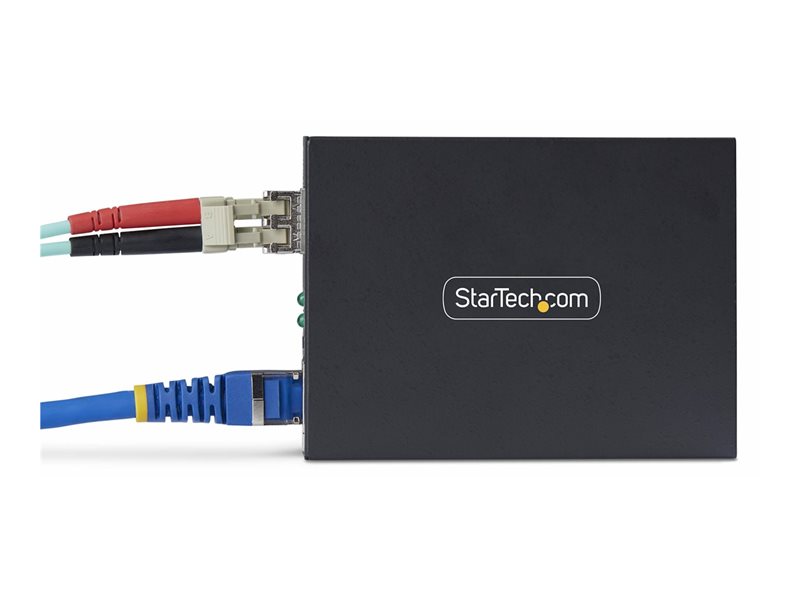

Fiber media converter - 1GbE - over fiber optic - 10Base-T, 1000Base-LX, 100Base-TX, 1000Base-T - LC Duplex single-mode / RJ-45 - up to 12.4 miles - 1310 nm - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | Startech - fiber media converter - 10Mb LAN, 100Mb LAN, 1GbE - TAA Compliant |
| Device Type | Fiber media converter - LC Duplex single-mode / RJ-45 |
| Form Factor | Desktop / wall / DIN rail mountable |
| Cabling Type | 10Base-T, 1000Base-LX, 100Base-TX, 1000Base-T |
| Data Transfer Rate | 1 Gbps |
| Optical Wave Length | 1310 nm |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, 1GbE |
| Transmission Medium | Fiber optic |
| Max Transfer Distance | 12.4 miles |
| Power | AC 100-240 V |
| TAA Compliant | Yes |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | Fiber media converter |
| Form Factor | Desktop / wall / DIN rail mountable |
| Color | Black |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 1000Base-T - RJ-45 female ¦ 1 x Ethernet 1000Base-LX - LC Duplex single-mode female |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| MTBF | 50,000 hours |
| Compliant Standards | Plug and Play, FCC, RoHS, WEEE, RCM |
| TAA Compliant | Yes |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 10Base-T, 1000Base-LX, 100Base-TX, 1000Base-T |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, 1GbE |
| Data Transfer Rate | 1 Gbps |
| Optical Wave Length | 1310 nm |
| Max Transfer Distance | 12.4 miles |
| Status Indicators | Power, link/activity, fault, link pass-through, link |
| Features | Auto-negotiation, auto-uplink (auto MDI/MDI-X), half duplex mode, full duplex mode, Link Loss Return (LLR), Link Loss Carry Forward (LLCF), Link Fault Pass Through function (LFP), metal housing, 9 KB Jumbo Frame, LED status indicators, compact |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab |
| Power | |
| Power Device | External power adapter |
| Voltage Required | AC 100-240 V |
| Power Consumption Operational | 4.6 watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 5 - 95% RH (non-condensing) |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 11 in |
| Shipping Depth | 5.2 in |
| Shipping Height | 2.6 in |
| Shipping Weight | 11.57 oz |
