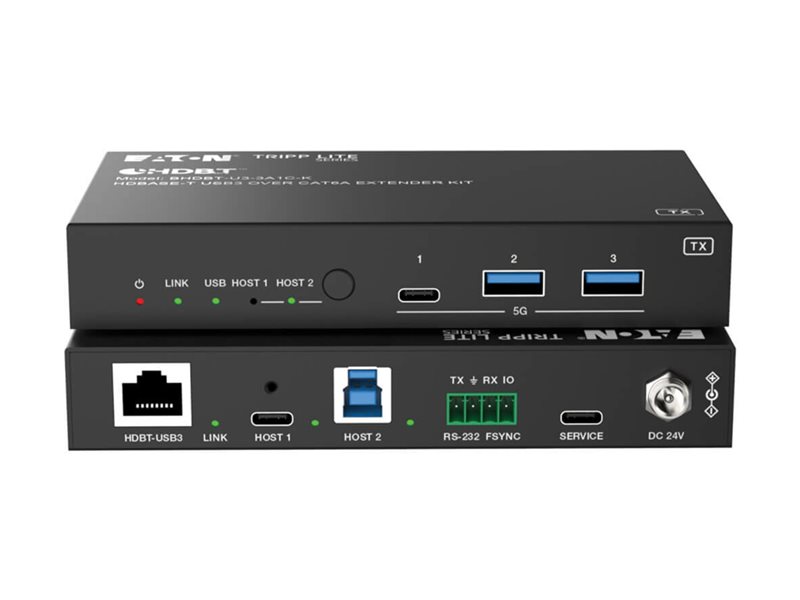

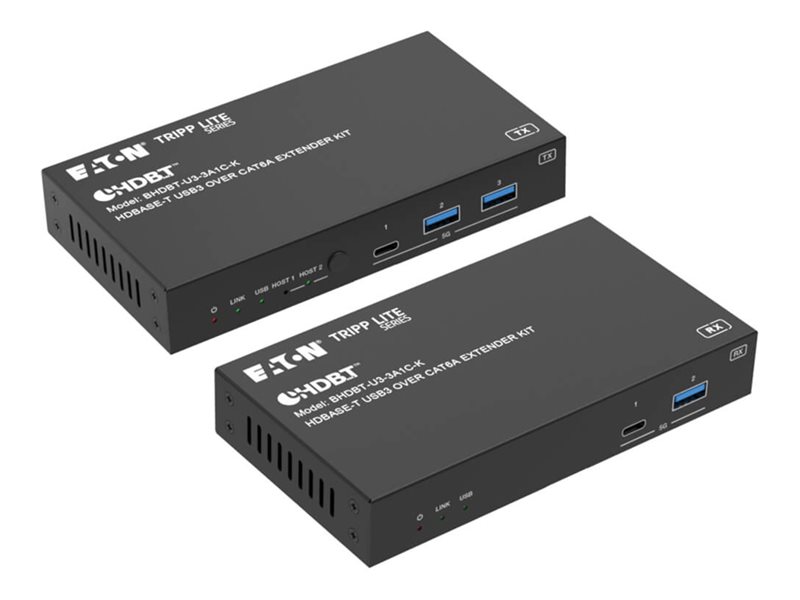

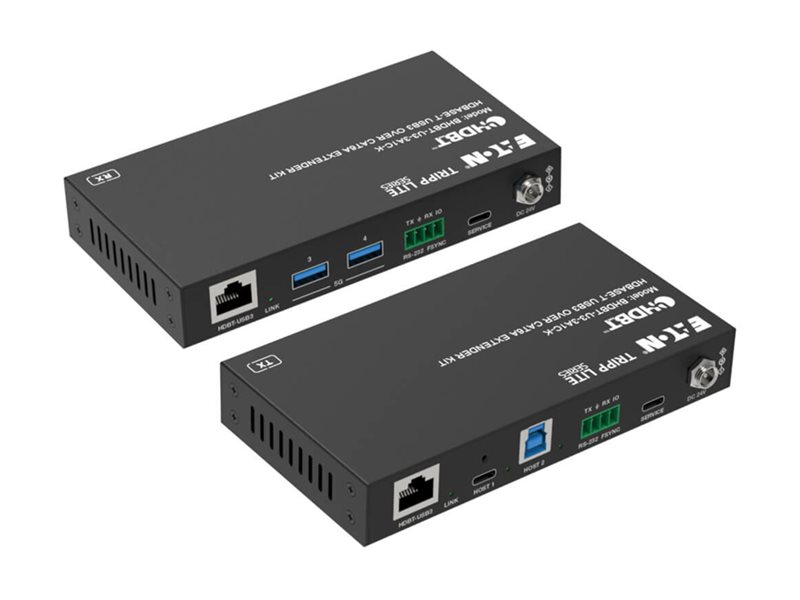

Extender Kit - USB extender - USB, USB 3.2 Gen 1 - over CAT 6a - up to 62.2 miles - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | Eaton Tripp Lite Series - Extender Kit - USB extender - USB, USB 3.2 Gen 1 - TAA Compliant |
| Device Type | USB extender |
| Form Factor | External / wall mountable |
| Localization | North America, Australia, Europe, United Kingdom |
| Data Transfer Rate | 5 Gbps |
| Data Link Protocol | USB, USB 3.2 Gen 1 |
| Transmission Medium | CAT 6a |
| Max Transfer Distance | 62.2 miles |
| Power | AC 100 -240 V |
| TAA Compliant | Yes |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | USB extender |
| Form Factor | External / wall mountable |
| Color | Black |
| Localization | North America, Australia, Europe, United Kingdom |
| Expansion / Connectivity | |

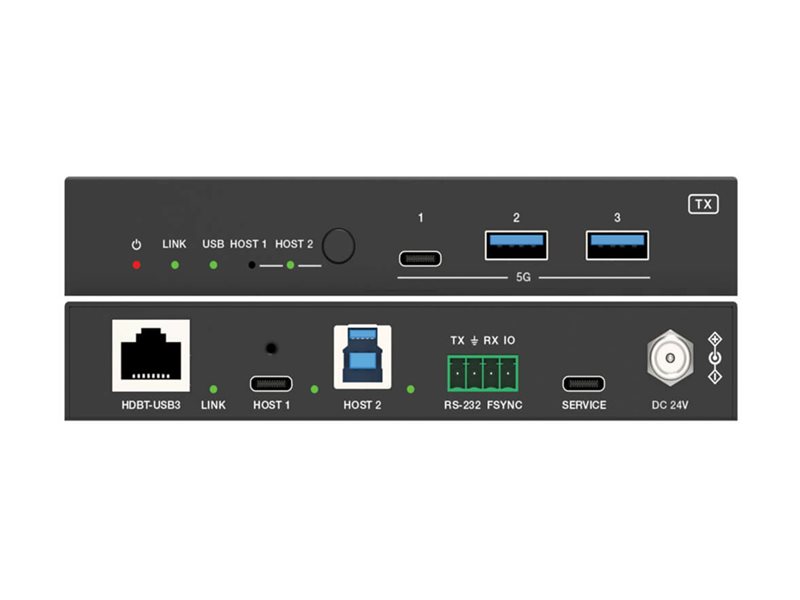

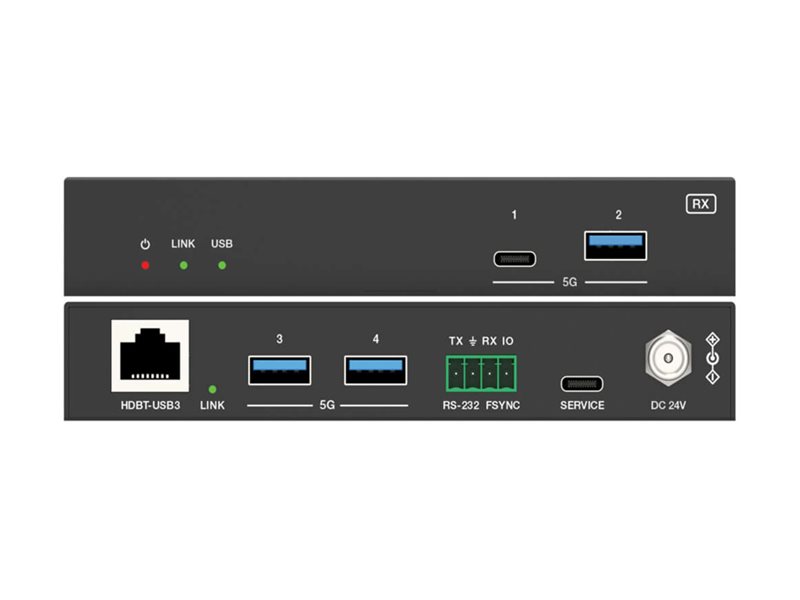

| Interfaces | 1 x USB (transmitter) - Type B female ¦ 3 x USB (transmitter) - Type C female ¦ 1 x HDBaseT (transmitter) - RJ-45 female ¦ 1 x RS-232 (transmitter) - 4 pin Phoenix ¦ 2 x USB 3.2 Gen 1 (transmitter) - Type A female ¦ 1 x HDBaseT (receiver) - RJ-45 female ¦ 3 x USB 3.2 Gen 1 (receiver) - Type A female ¦ 1 x RS-232 (receiver) - 4 pin Phoenix ¦ 2 x USB (receiver) - Type C female |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Included Accessories | Mounting kit, power cord, 4 power plug adapters, 2 x 4-pin Phoenix connectors |
| Mounting Kit | Included |
| Compliant Standards | Plug and Play, GSA, IEC 61000-4-2, cUL, FCC, PSE Mark, TUV, UL, WEEE, CAN/CSA-C22.2 No. 62368-1, EN 55032, EN 55035, FCC Part 15 Class B (USA), ICES (Canada), IEC 62368-1, REACH, RoHS3, UKCA, UL 62368-1 |
| TAA Compliant | Yes |
| Networking | |
| Connectivity Technology | Wired |
| Data Link Protocol | USB, USB 3.2 Gen 1 |
| Data Transfer Rate | 5 Gbps |
| Max Transfer Distance | 62.2 miles |
| Status Indicators | Power, signal, USB, host, link |
| Features | Power over cable (PoC), dual host mode, HDBaseT technology, FSYNC GPIO passthrough, nickel plated connector, metal housing, 4KV ESD Protector (contact discharge), 8KV ESD Protector (air-gap discharge), switch button |
| Compliant Standards | USB 3.2 Gen 1 |
| Power | |
| Power Device | External power adapter |
| Voltage Required | AC 100 -240 V (50/60 Hz) |
| Power Consumption Operational | 90 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 20 - 80% RH (non-condensing) |
| Dimensions & Weight | |
| Dimensions (WxDxH) / Weight Details | Transmitter: 6.7 in x 3 in x 0.9 in / 9.2 oz ¦ Receiver: 5.5 in x 3 in x 0.9 in / 8.9 oz |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 7.3 in |
| Shipping Depth | 9.6 in |
| Shipping Height | 3 in |
| Shipping Weight | 3.09 lbs |
