Conference camera - PTZ - color (Day&Night) - 3840 x 2160 - motorized - 1500 TVL - audio - NDI|HX, 3G-SDI, HDMI - MJPEG, H.264, H.265 - DC 10.8 - 13.2 V / PoE++
| Main Specifications | |
|---|---|

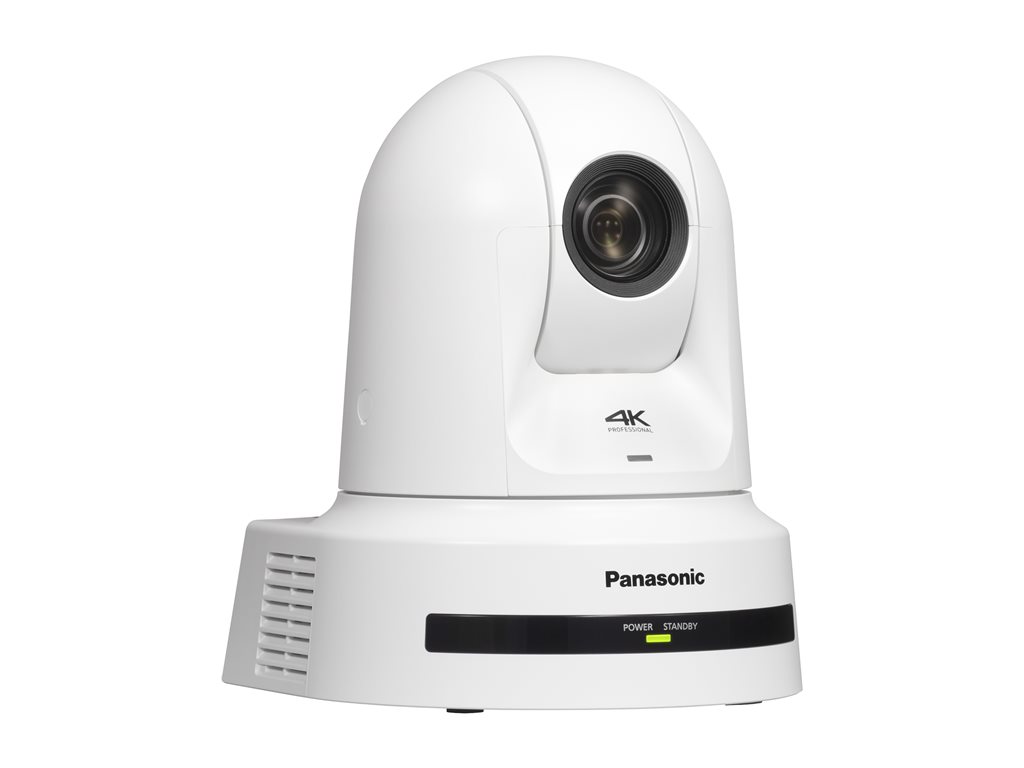

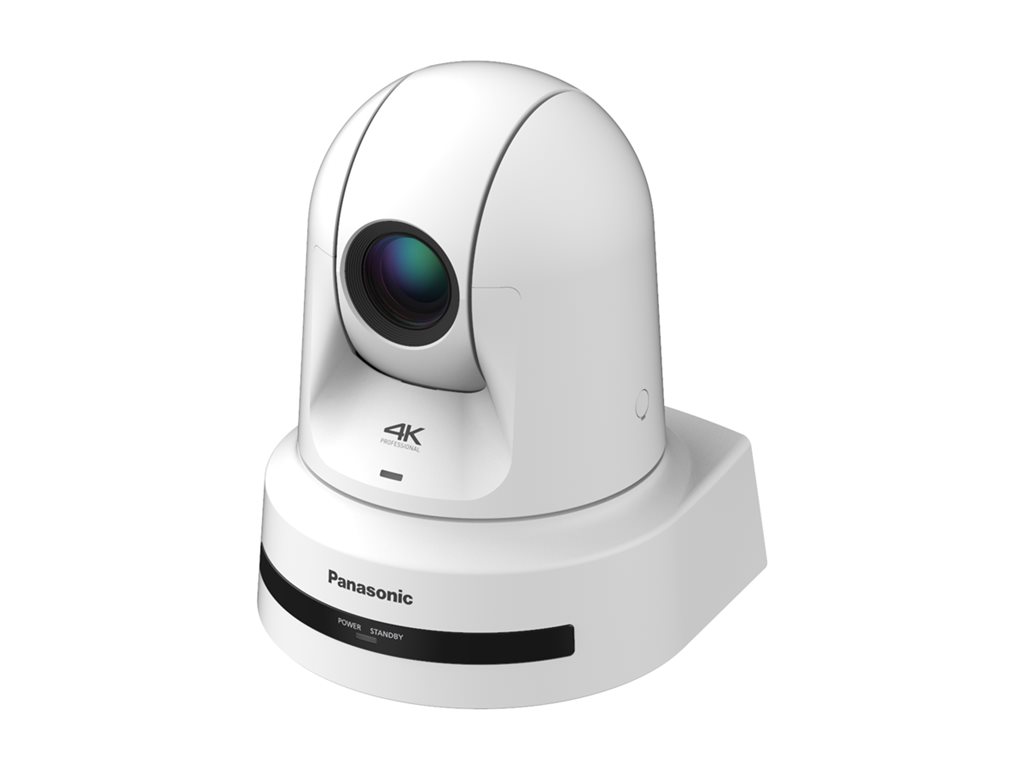

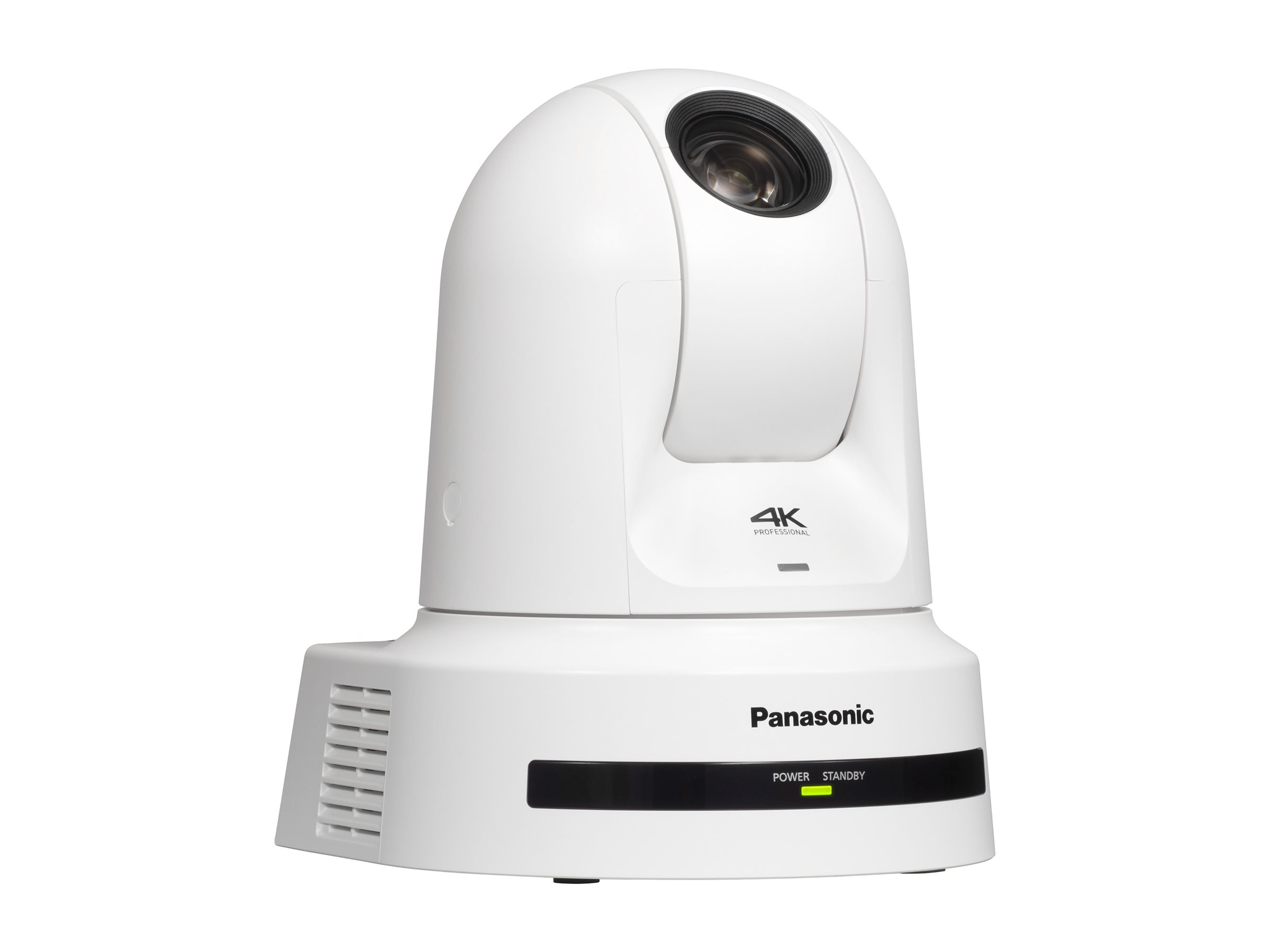

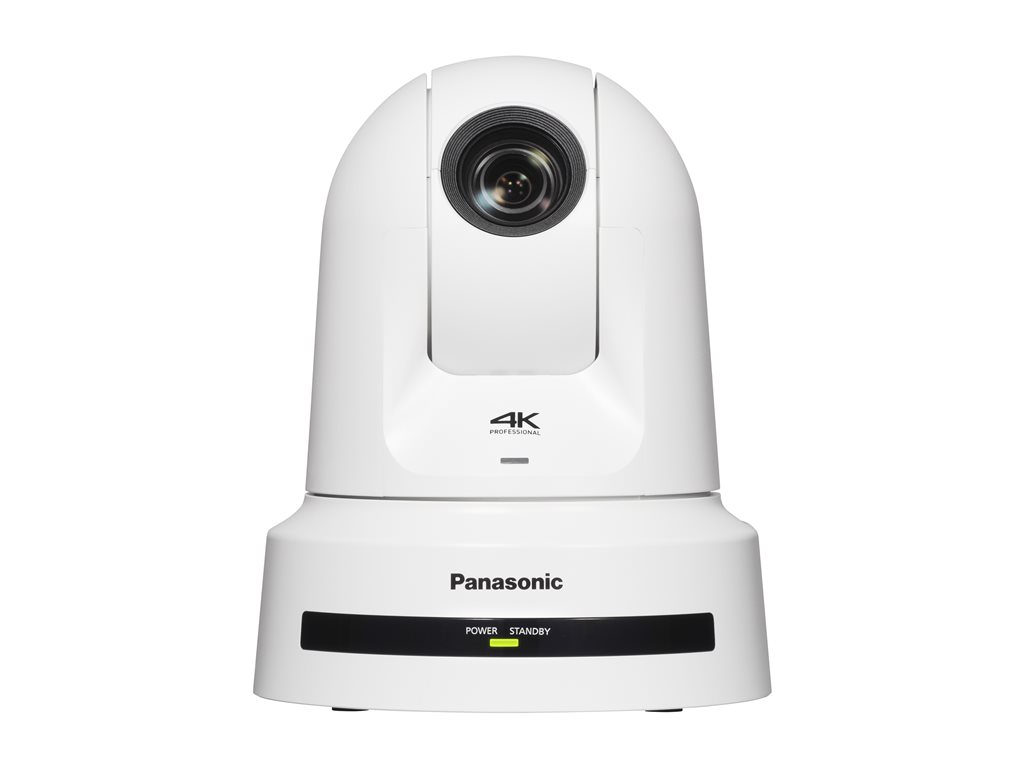

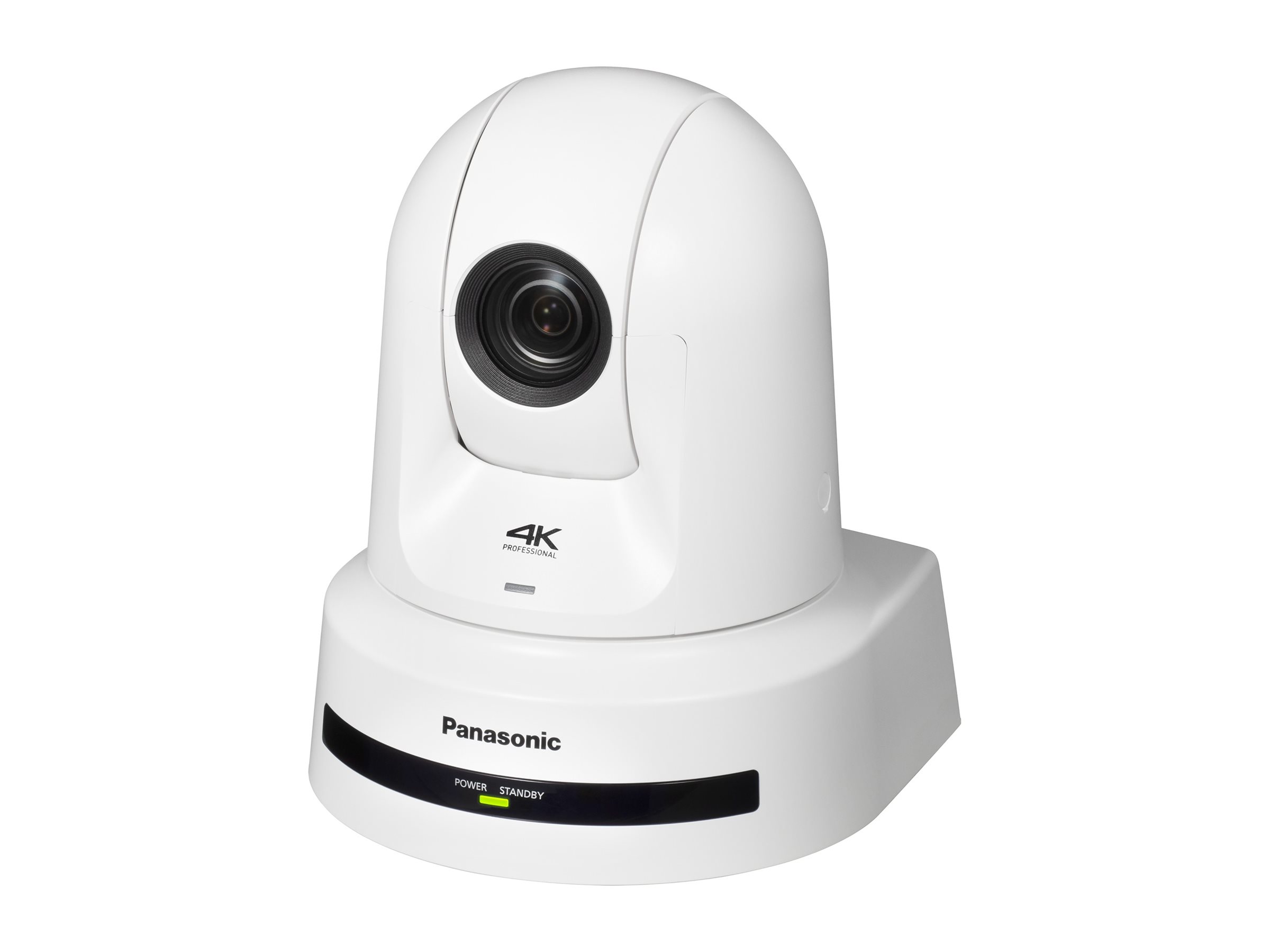

| Product Description | Panasonic AW-UE80W/K - conference camera |
| Device Type | Conference camera - pan / tilt / zoom |
| Audio | Yes |
| Camera Mount Type | Ceiling mount, surface mount |
| Dimensions (WxDxH) | 6.7 in x 6.7 in x 8.3 in |
| Weight | 4.41 lbs |
| Color | Pearl white |
| Connectivity Technology | Wired |
| Camera | Color - Day&Night - 1500 TVL |
| Optical Zoom | 24 x |
| Max Resolution | 3840 x 2160 |
| Frame Rate (max) | 30 frames per second |
| Video Modes | 4K/60p, 4K/50p, 1080/59.94p, 1080/50p, 1080/30p, 1080/25p, 1080/24p, 1080/23.98p, 720/59.94p, 720/50p, 1080/59.94i, 2160/59.94p, 2160/50p, 2160/29.97p, 2160/23.98p, 2160/25p, 2160/24p, 1080/50i, 1080/29.97PsF, 1080/25PsF, 1080/23.98PsF |
| Optical Sensor Type | MOS - 1/2.5" |
| Minimum Illumination | 3 lux F1.8 - 50 IRE |
| Focal Length Control | Motorized zoom |
| Focal Length | 4.12 mm - 98.9 mm |
| Focus Adjustment | Automatic, manual (min distance 3.9 in) |
| Lens Iris | F/1.8-4 |
| Panning Range (degree) | -175 to +175 |
| Interfaces | NDI|HX, 3G-SDI, HDMI |
| Control Interface | RS-232 |
| Voltage | DC 10.8 - 13.2 V / PoE++ |
| Features | Auto tracking, Black Burst Sync (BBS), tri-level sync supported, Automatic Tracing White (ATW), Automatic Whiteness Balance (AWB), tripod support |
| Environmental Parameters (operating) | 32 °F - 104 °F; 20 - 90% (non-condensing) relative humidity |
| General | |
| Device Type | Conference camera |
| Audio Support | Yes |
| Audio Formats | AAC-LC |
| Camera Mount Type | Ceiling mount, surface mount |
| Connectivity Technology | Wired |
| Width | 6.7 in |
| Depth | 6.7 in |
| Height | 8.3 in |
| Weight | 4.41 lbs |
| Expansion / Connectivity | |

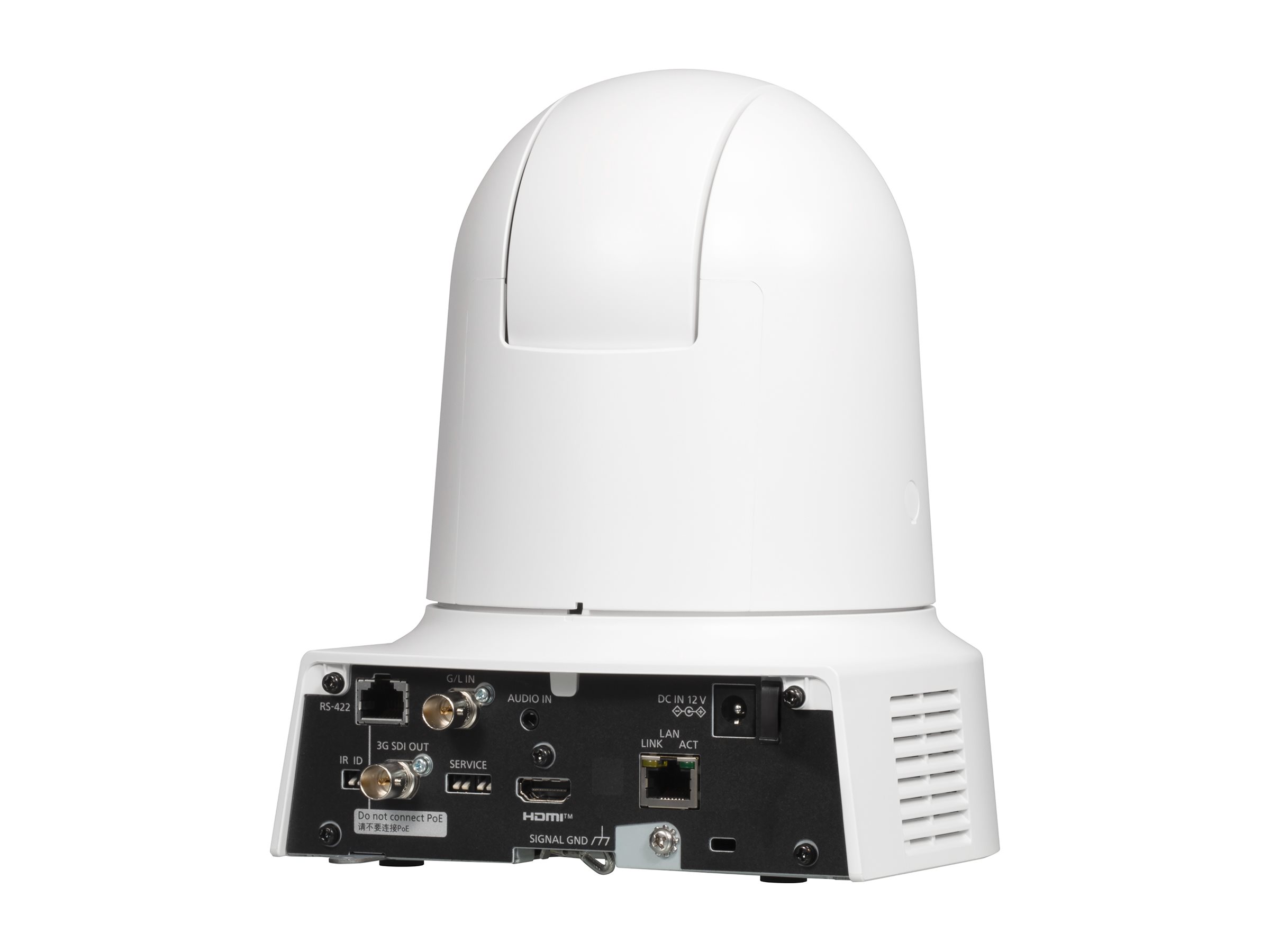

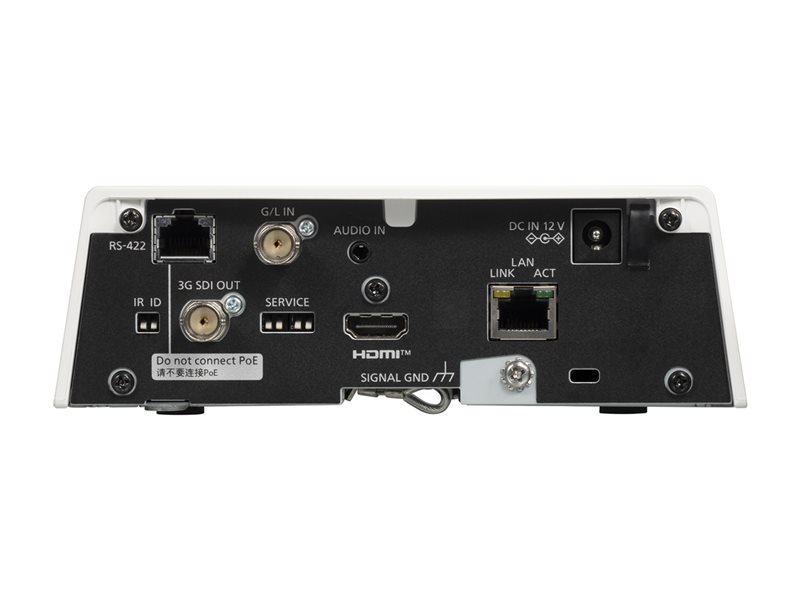

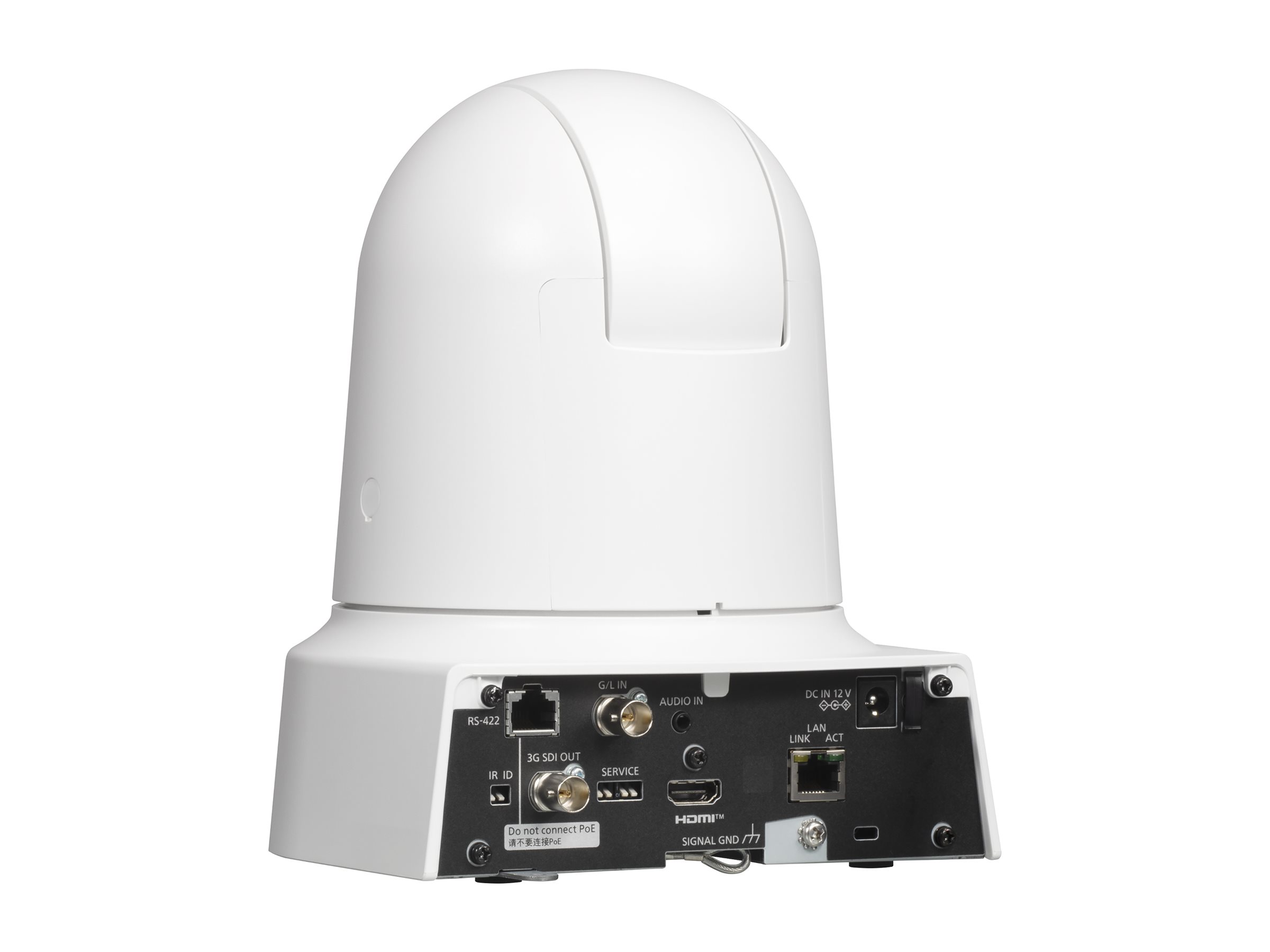

| Ports | Audio line in - 3.5 mm jack ¦ LAN - RJ-45 ¦ Serial RS-232 - RJ-45 ¦ HDMI output ¦ 3G-SDI output - BNC ¦ G/L input - BNC |
| Miscellaneous | |
| Compliant Standards | IEEE 802.3bt |
| Color | Pearl white |
| Power | |
| Power Requirements | DC 10.8 - 13.2 V / PoE++ |
| Software / System Requirements | |
| OS Required | Windows 10, Windows 11, Apple macOS 11.0.1, Apple macOS 10.15, Apple macOS 10.14 |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Relative Humidity (operating) | 20 - 90% (non-condensing) |
| Camera | |
| Type | Color - Day&Night - pan / tilt / zoom |
| Digital Video Format | MJPEG, H.264, H.265 |
| Horizontal Resolution (TV Lines) | 1500 |
| Max Digital Video Resolution | 3840 x 2160 |
| Video Modes | 4K/60p, 4K/50p, 1080/59.94p, 1080/50p, 1080/30p, 1080/25p, 1080/24p, 1080/23.98p, 720/59.94p, 720/50p, 1080/59.94i, 2160/59.94p, 2160/50p, 2160/29.97p, 2160/23.98p, 2160/25p, 2160/24p, 1080/50i, 1080/29.97PsF, 1080/25PsF, 1080/23.98PsF |
| Digital Zoom | 36 |
| Exposure Range | 1/25 sec - 1/10000 sec |
| Minimum Illumination | 3 lux F1.8 - 50 IRE |
| Digital Video Capture Resolution | 3840 x 2160, 1920 x 1080, 1280 x 720 |
| Frame Rate (max) | 30 frames per second |
| Supported Image Formats | JPEG |
| Still Image Capture Resolution | 1920 x 1080, 1280 x 720, 640 x 360, 320 x 180 |
| Features | Auto tracking, Black Burst Sync (BBS), tri-level sync supported, Automatic Tracing White (ATW), Automatic Whiteness Balance (AWB), tripod support |
| Lens Construction | |
| Type | Motorized zoom |
| Optical Zoom | 24 x |
| Focal Length | 4.12 mm - 98.9 mm |
| Lens Iris | F/1.8-4 |
| Focus Adjustment | Automatic, manual |
| Min Focus Distance | 3.9 in |
| Horizontal Field of View (degree) | 3.3 - 74.1 |
| Vertical Field of View (degree) | 1.9 - 46 |
| Diagonal Field of View (degree) | 3.8 - 81.8 |
| Image Sensor | |
| Type | MOS 1/2.5" |
| Interfaces | |
| Video | NDI|HX, 3G-SDI, HDMI |
| Network Protocols | NDI, SRT, TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, DHCP, DNS, DDNS, NTP, IGMP, ICMP, ARP, RTMP, RTMPS, DHCPv6, MLD, RTP |
| Control Interface | RS-232 |
| Panning | |
| Range (degree) | -175 to +175 |
| Speed (degree/sec) | Up to 180 |
| Internet of Things (IoT) | |
| Supported Host Device Platform | iOS, Android, MacOS, Windows |
| Tilting | |
| Speed (degree/sec) | Up to 180 |
